Assembly guide

On this page, we will guide step by step on how to assemble this kit.

Step 1: Solder the resistors to the PCB.

Use a multimeter to differentiate resistor based on their resistance value. Start by putting the multimeter in resistance measuring mode and connect the multimeter's probes to the ends of the resistor, separate them based on the resistance value.

Solder the 330hm resitors

Solder the 330Ohm resistors to the bpc on pins marked R2-R8. Their orientation doesn't matter.

Find the resistors with markings as shown below:

Markings for the 100 Ohm resistor

Highlighted pins for 330Ohm resistors

Solder the 10kOhm resistors

Solder the 10kOhm resistors to the pcb on pins marked R1. Their orientation doesn't matter.

Find the resistors with markings as shown below:

Markings for the 10k Ohm resistor

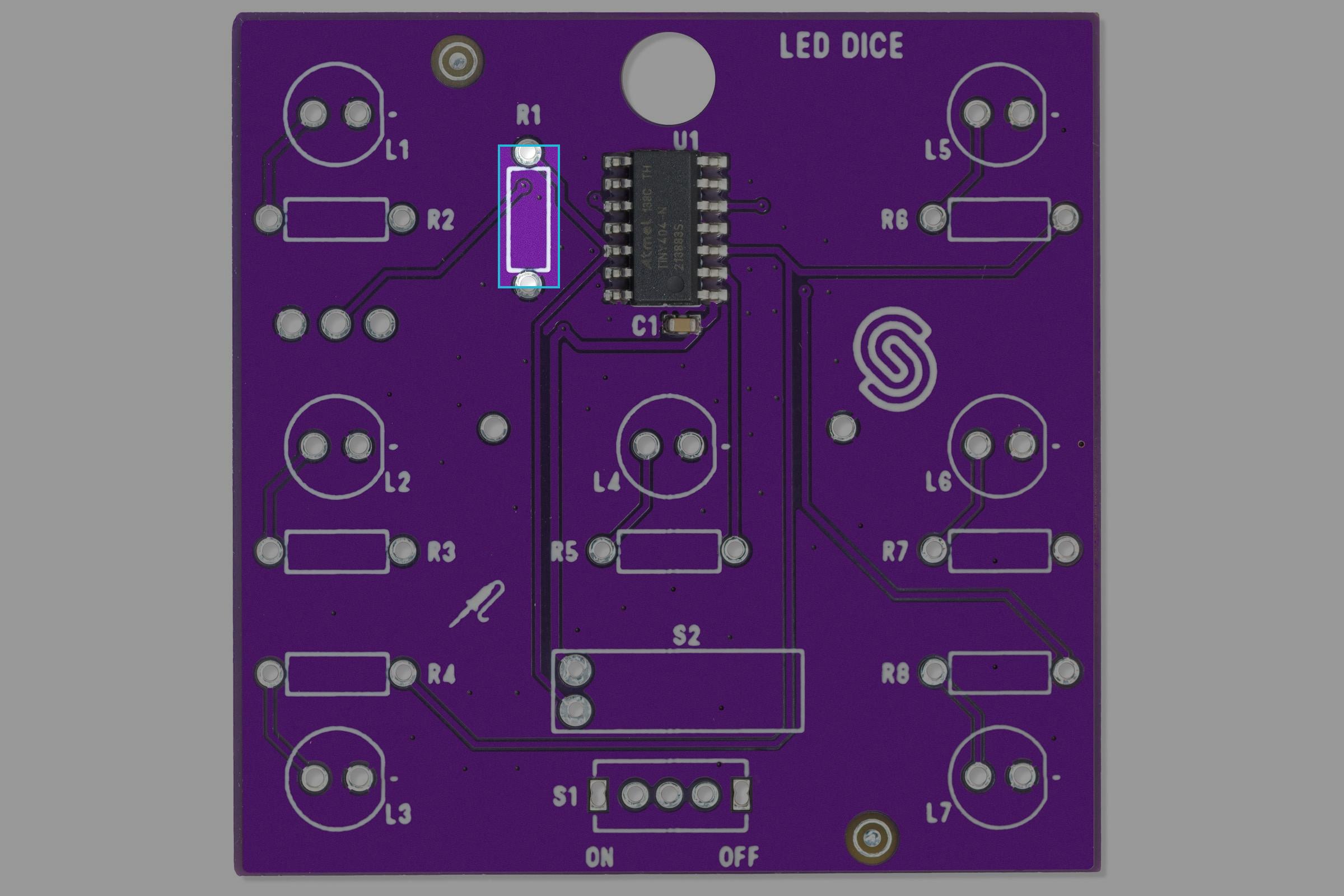

Highlighted pins for 10k Ohm resistors

Step 2: Solder the LEDs

Solder the LEDs to the pcb on pins marked L1-L7

Marked pins on LED

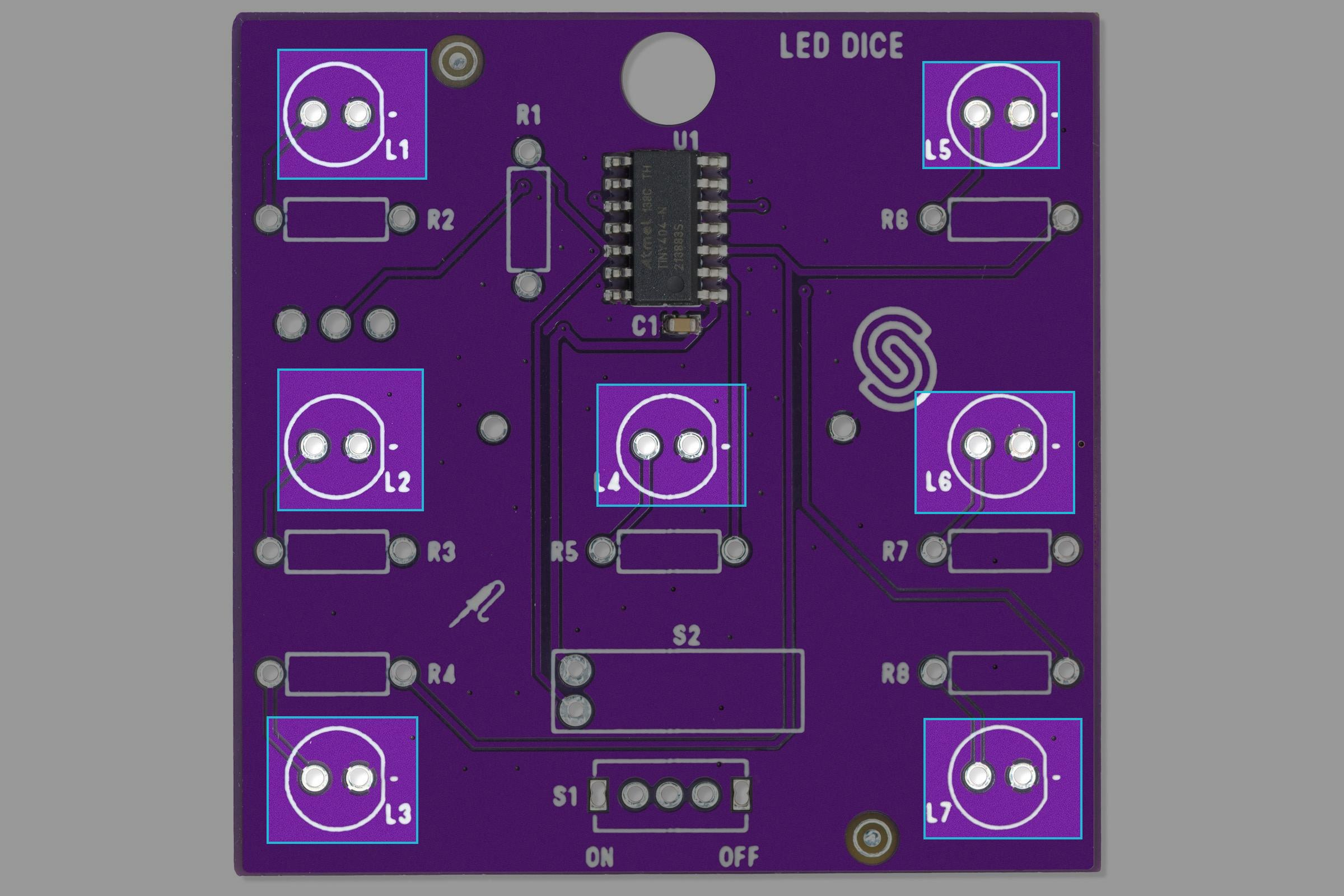

Highlighted pins for LEDs

Step 3: Solder the SW-18020P Vibration sensor

Solder the SW-18020P on the pins marked S2

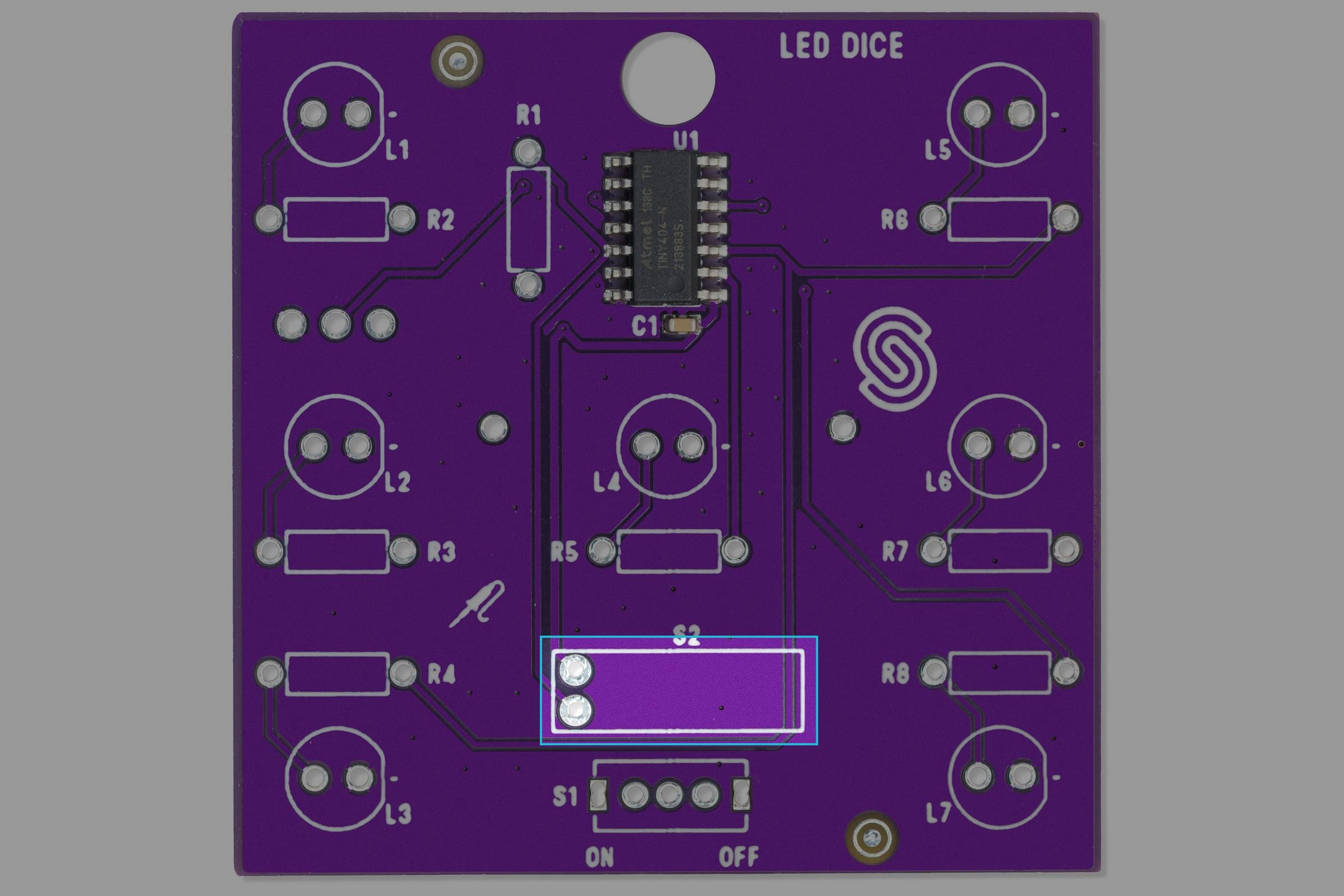

Highlighted pins for Vibration sensor

Step 4: Solder the switch

Solder the switch on pins marked S1, orientation doesn't matter.

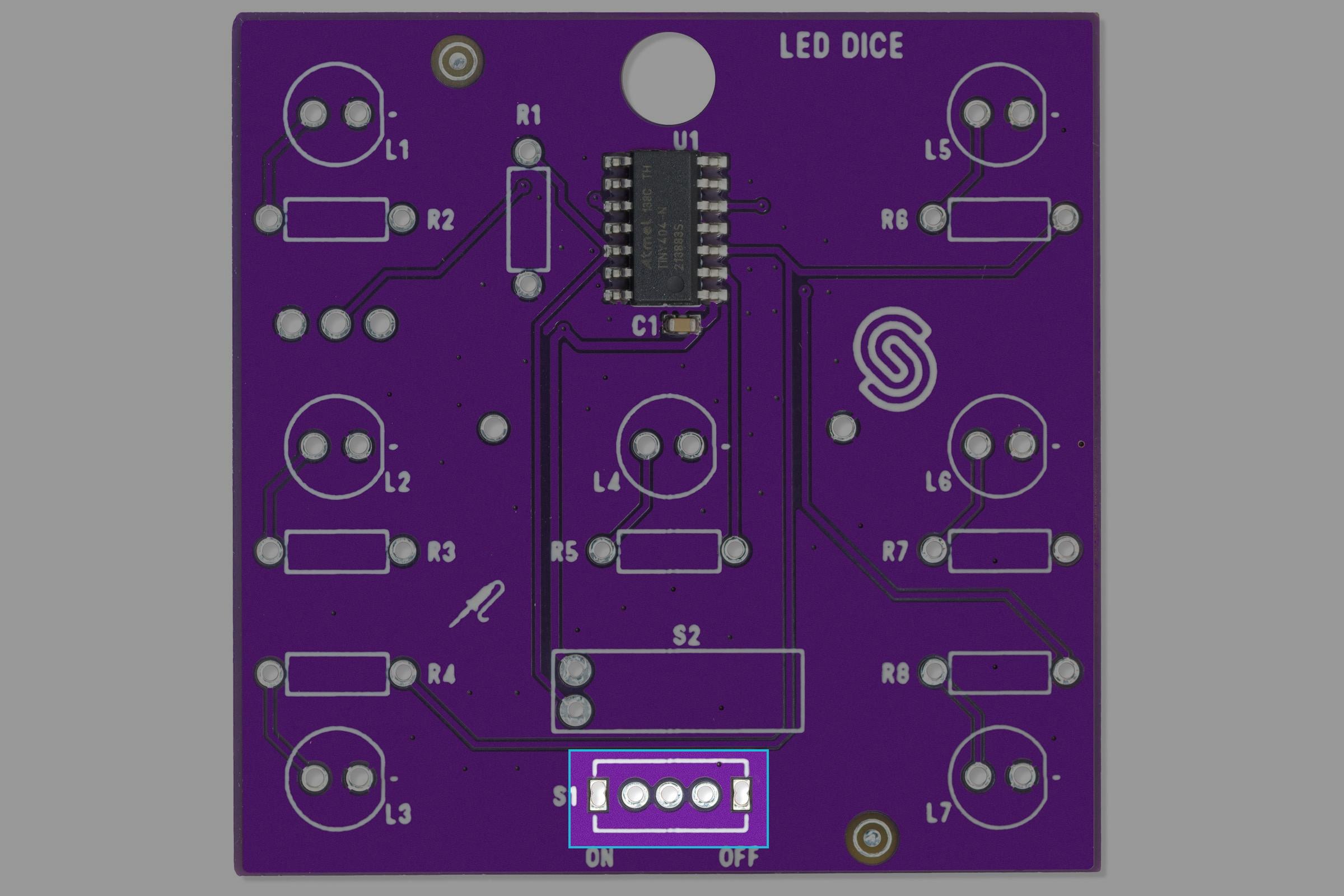

Highlighted pins for switch

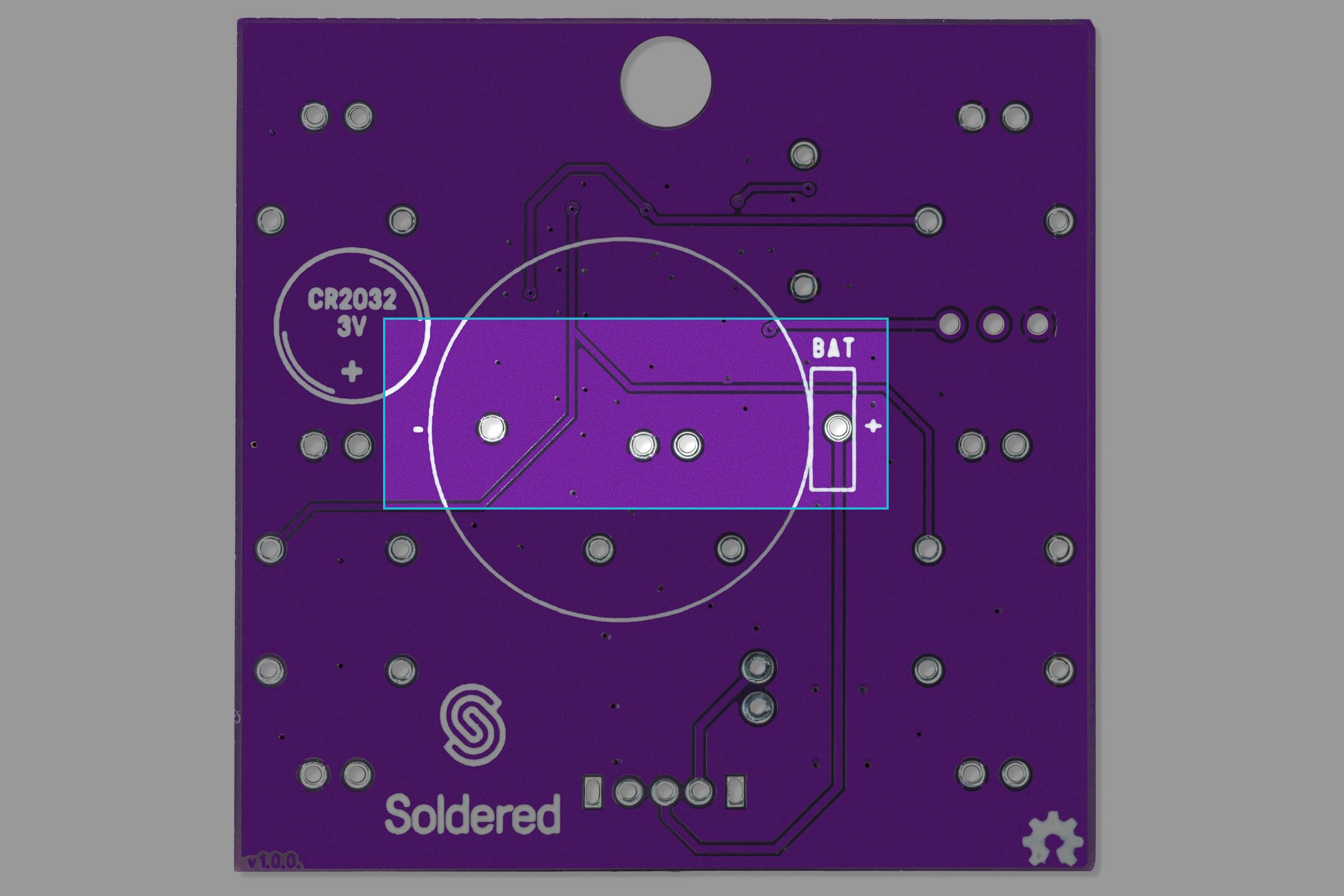

Step 5: Solder the CR2032 battery holder

Rotate the pcb on its back side up and align the holder with drawn topology on pins marked BAT.

Highlighted pins for pushbutton
