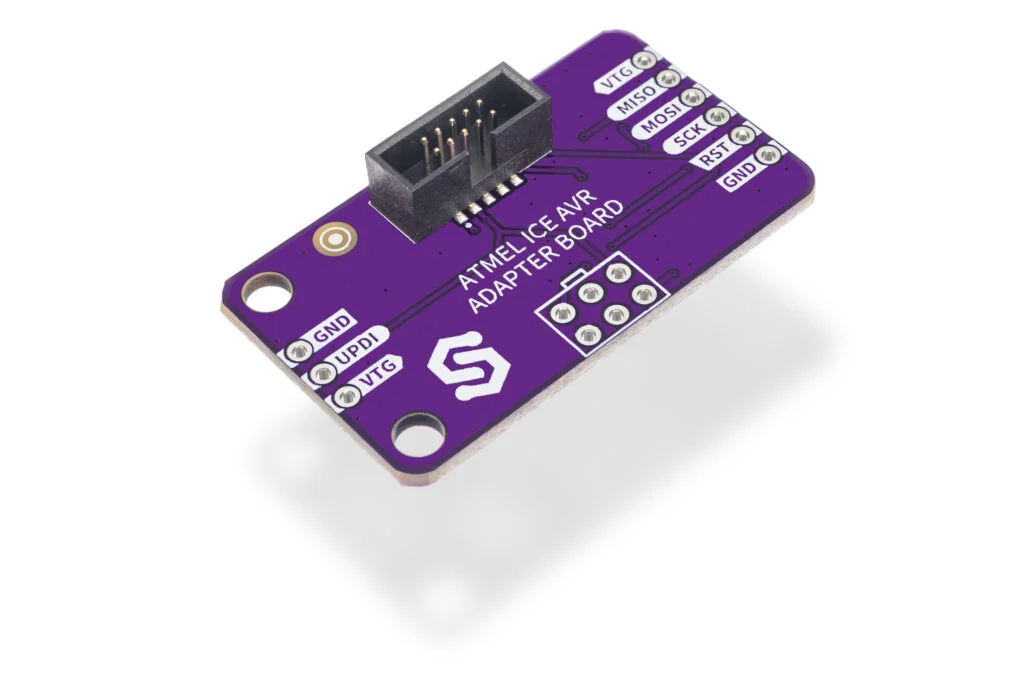

MakerICE Adapter AVR - Overview
The Atmel ICE AVR is a breakout adapter for the Atmel-ICE programmer. This breakout enables a fast and reliable connection to any AVR microcontroller with its pin positioning. This passive breakout board connects the 10-pin IDC port of the Atmel ICE to two common AVR programming interfaces: the 6-pin ICSP/ISP header and the 3-pin UPDI header.
It is perfect for modernt AVR development, including UPDI-based tinyAVR, megaAVR-0, and AVRDx series, as well as classic ISP-programmed ATmega and ATtiny devices.
It is ideal for engineers, educators and makers who want a clean, compact and dependable programming setup.
MakerICE Adapter AVR
Which product is this documentation for?
MakerICE Adapter AVR
333214
Key Features
- ISP Support: In-System Programming for classic AVR microcontrollers
- UPDI Support: Unified Program and Debug Interface for modern AVR devices
- Direct Connection: No wiring or jumpers, just plug and program
- 10-Pin IDC Input: Standard Atmel ICE programming connector
- 6-Pin ISP Header: Compatible with Arduino and standard ICSP pinout
- 3-Pin UPDI Header: Simple connection for single-wire UPDI programming
- Broad Compatibility: Works with most AVR devices that support ISP or UPDI
- Compact Design: Saves bench space and reduces setup clutter
- Dimensions: 38 x 22 mm (1.5 x 0.8 inch)
- Mounting: Two mounting holes for secure attachment
