MakerICE Adapter SAM - How it works

How to use the connector?

Connect one side of the 10-pin IDC flat cable to the programmer in the port marked AVR as shown in the picture below:

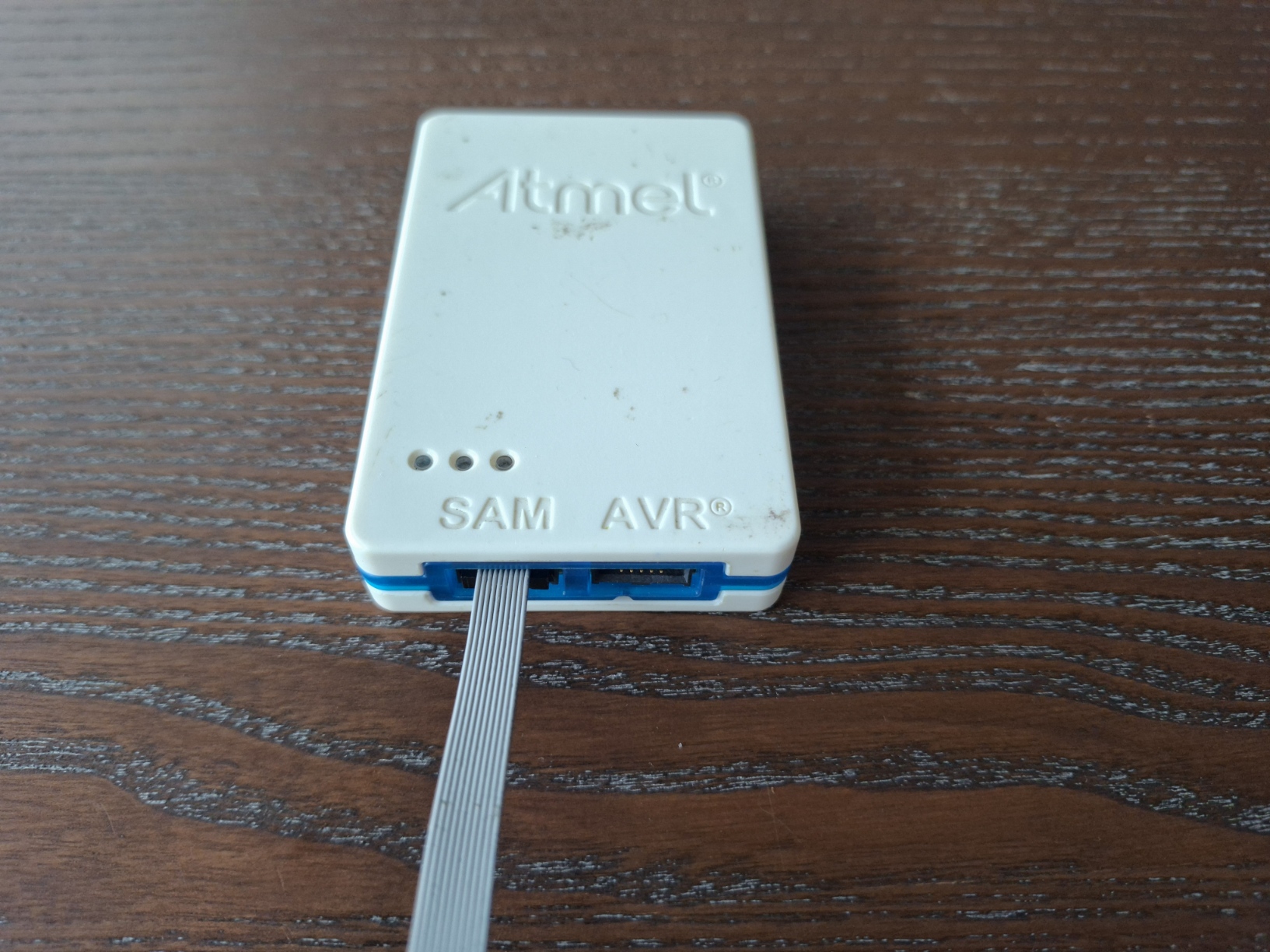

Flat cable connected to Atmel-ICE

After that, connect the other side to the adapter breakout as shown in the picture below:

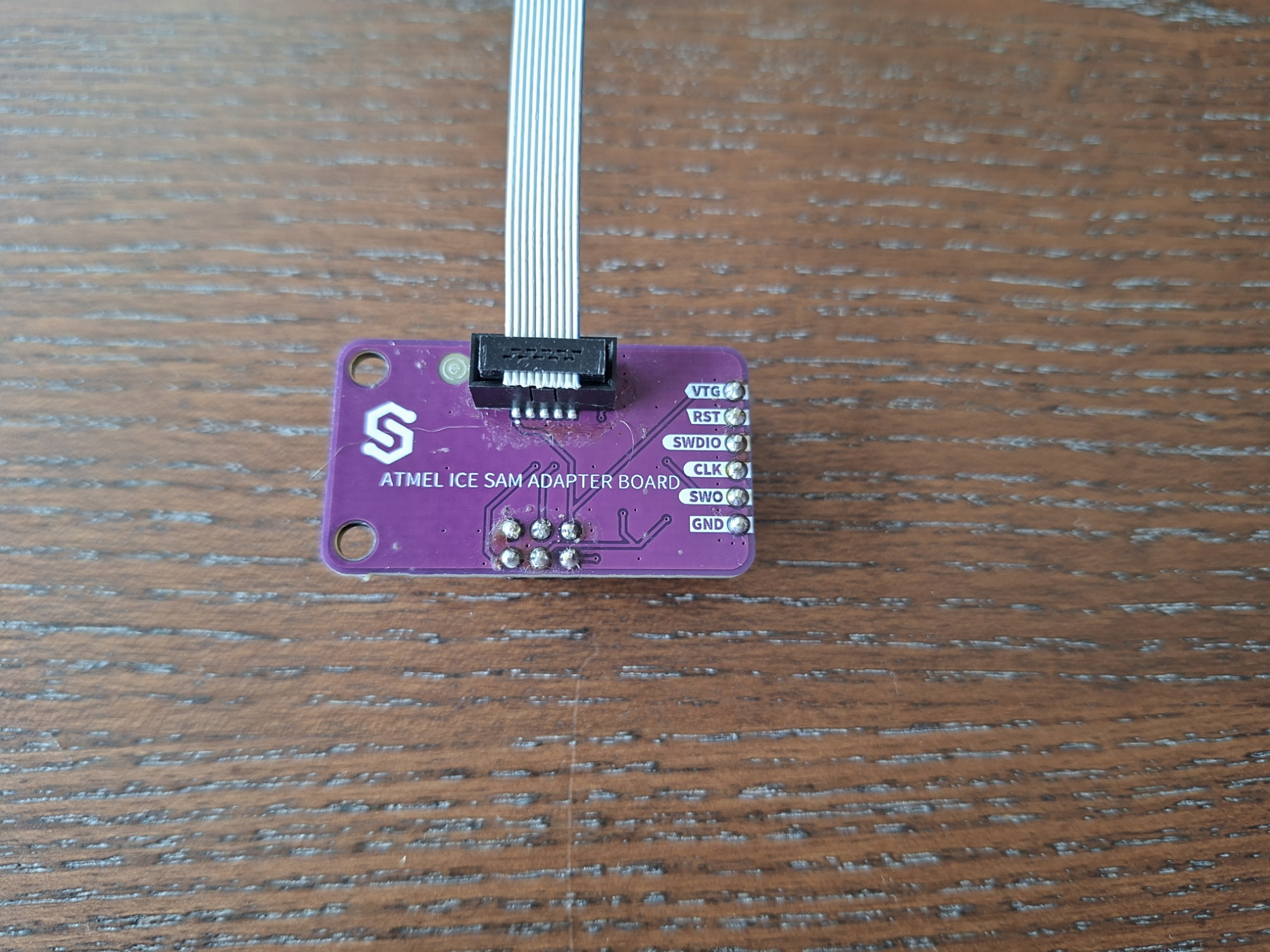

MakerICE SAMs adapter

Connect the adapter a supported board:

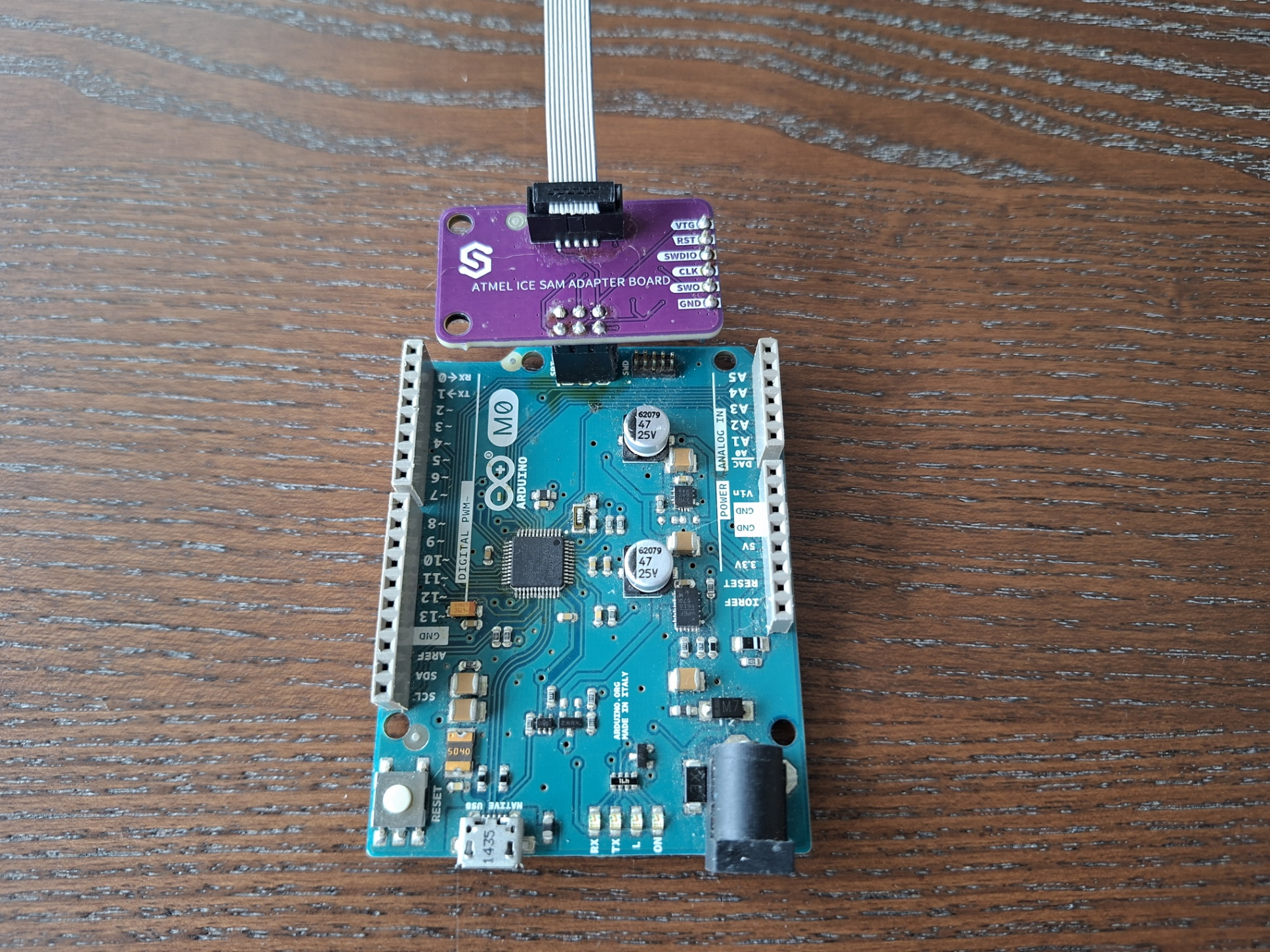

MakerICE Adapter SAM connected to SAM supported board
