MakerICE Adapter SAM - Overview

SWD Only: Supports Serial Wire Debug programming and debugging
6-PIn SWD Header: Standard pinout(VTG, nRST, SWDIO, CLK, SWO, GND)
10-Pin IDC Input: Connects directly to the Atmel ICE ARM port
Broad SAM support: Works with all SAM devices that use SWD
Direct Connection: No extra components or configuration required
Compact Design: Saves bench space and reduces wiring complexity
Dimensions: 38 x 22 mm (1.5 x 0.8 inch)
Mounting: Two mounting holes for secure attachment

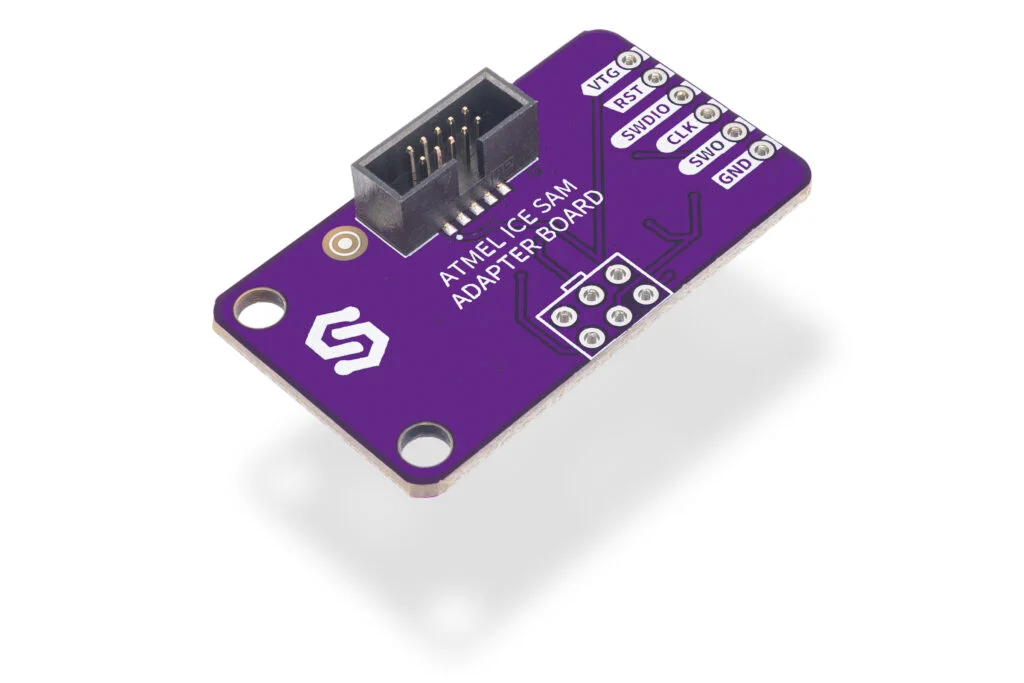

MakerICE Adapter SAM

The MakerICE Adapter SAM is a breakout adapter for the Atmel-ICE programmer. This breakout enables a fast and reliable connection to any SAM microcontroller with its pin positioning. With direct signal routing for SWDIO, CLK, SWO, nRST, VGT and GND this adapter ensures reliable communication between your Atmel ICE and any SWD-capable target.

It's ideal for engineers, educators and advanced makers working with SAM devices, the board provides a stable interface for development and testing.
