Piano Solder Kit - Overview

Introduction​

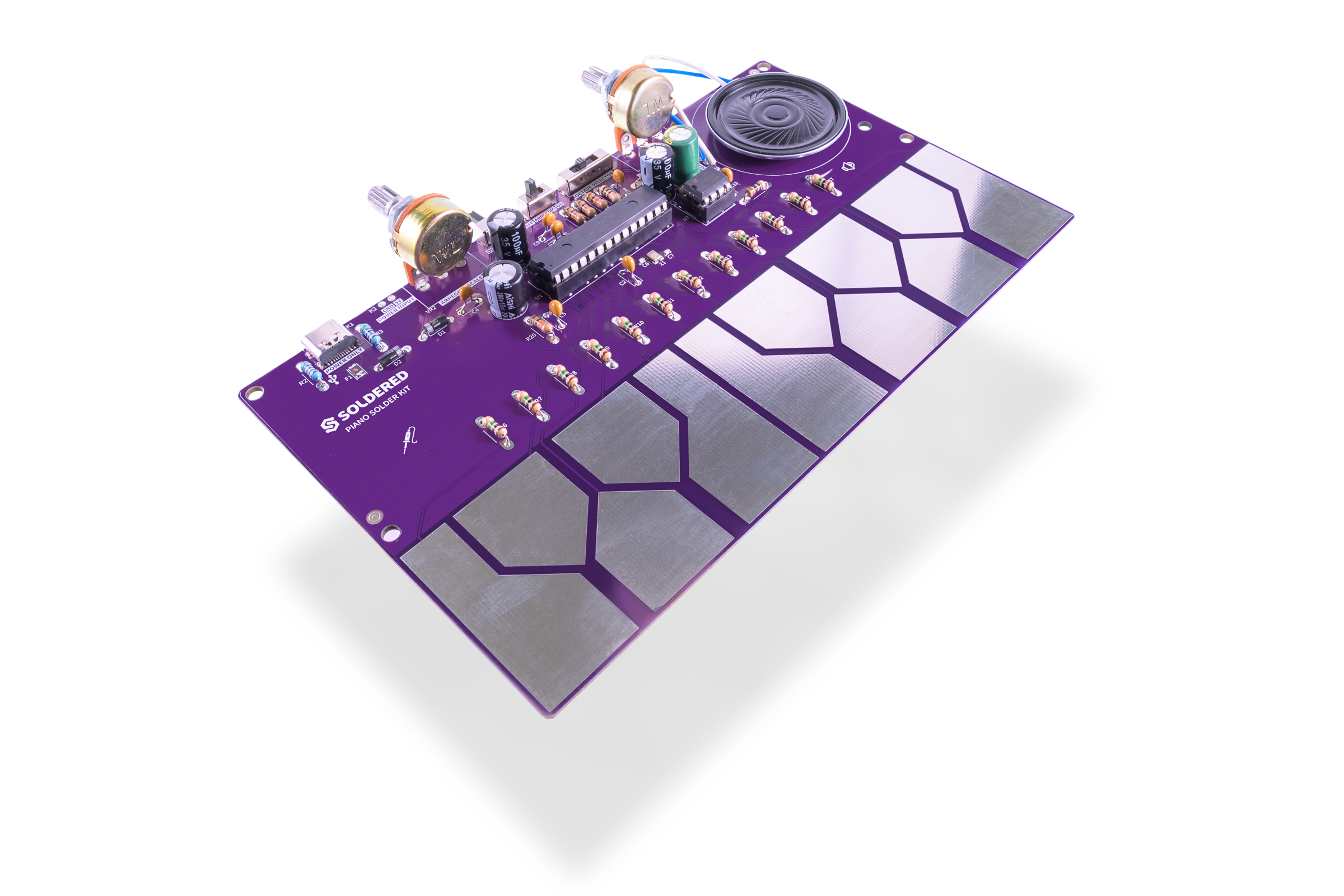

The Piano Solder Kit is an educational electronics kit that teaches you the fundamentals of soldering and electronics by building a fully functional capacitive touch piano. Built around the classic ATmega328P microcontroller (which comes pre-programmed and ready to assemble) it generates tones and outputs sound to an external speaker through the LM386 Audio Amplifier for optimal loudness. The board also features an arpeggio mode with adjustable arpeggio speed control and multiple octave settings.

Piano Solder Kit
Piano Solder Kit

Which product is this documentation for?​

Piano Solder Kit

Piano Solder Kit

333181

Contents of the kit​

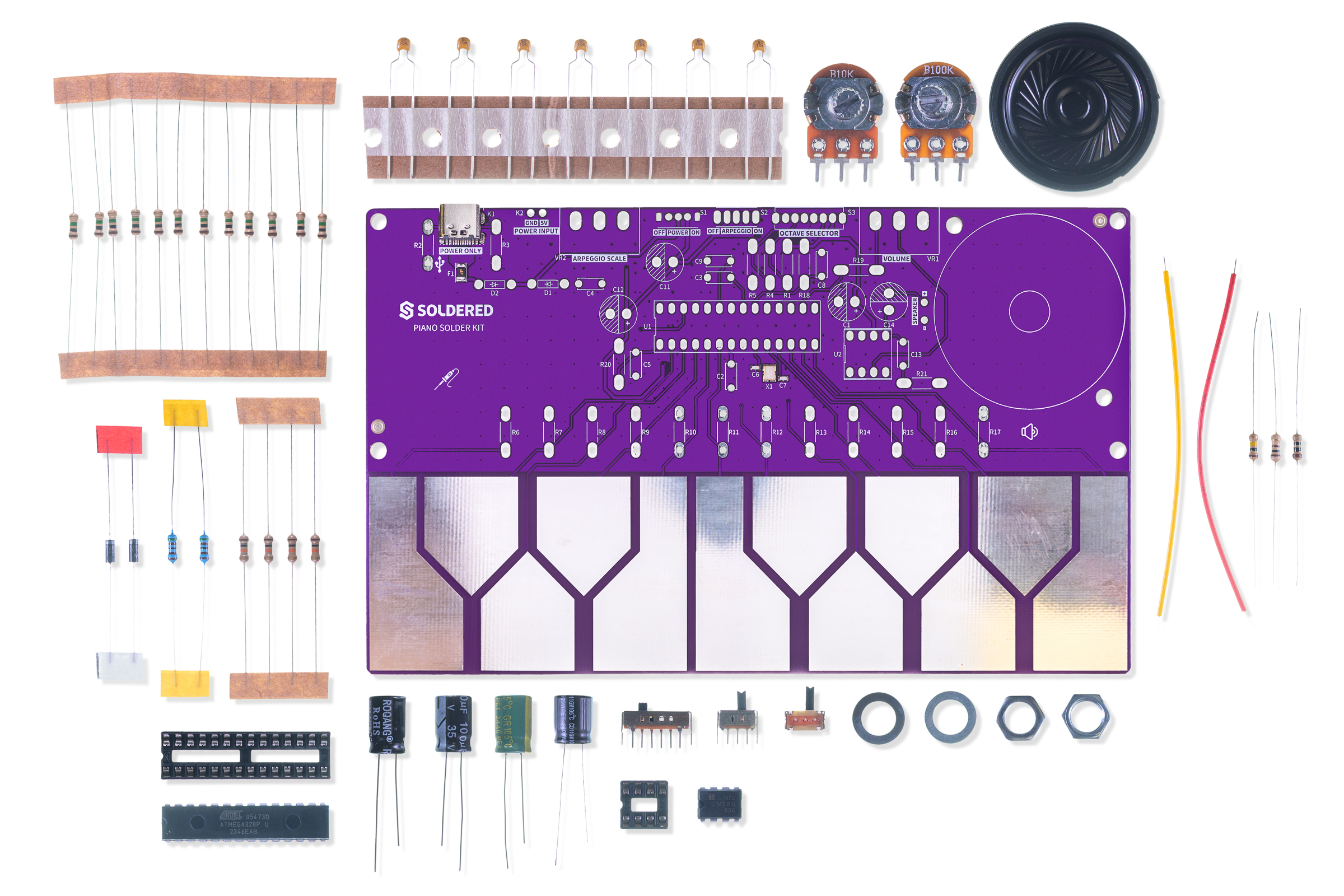

Piano Solder Kit Contents
  • PCB: Piano circuit board with clear component markings and 12 capacitive touch buttons, pre-soldered USB-C connector and 16 MHz crystal for normal microcontroller operation
  • ATmega328P: Pre-programmed microcontroller in DIP-28 package with IC socket
  • LM386 Audio Amplifier IC: In DIP-8 package with IC socket
  • Switches: Arpeggio mode, octave selector, and power ON/OFF
  • Potentiometers:
    • 10 kΩ potentiometer for volume control
    • 100 kΩ potentiometer for arpeggio speed control
  • Resistors:
    • 12 × 1 MΩ
    • 1 × 100 kΩ
    • 5 × 10 kΩ
    • 2 × 5.1 kΩ
    • 1 × 100 Ω
    • 1 × 10 Ω
  • Capacitors:
    • 7 × 100 nF (ceramic)
    • 2 × electrolytic 100 µF
    • 1 × electrolytic 1000 µF
    • 1 × electrolytic 680 µF
  • Diodes: 2 × 1N4007
  • 8 Ω Speaker: For instant sound playback
  • Pre-cut wires: 2 × for soldering the speaker to the board
