Overview
SPK0641HT Microphone
The SPK0641HT4H-1 Digital SiSonic™ Microphone is a miniature, high-performance, low-power MEMS microphone with a top port and single-bit PDM output. Based on Syntiant’s SiSonic™ MEMS technology, it integrates an acoustic sensor, low-noise input buffer, and sigma-delta modulator.
This device is optimized for portable electronics such as smartphones, laptops, tablets, cameras, and recorders, where wideband audio quality and RF immunity are required. Its high 64 dB(A) signal-to-noise ratio (SNR) and flat frequency response make it well-suited for far-field applications and multi-microphone arrays.
In addition, the SPK0641HT4H-1 provides multiple performance modes, enabling designers to balance between low power consumption and high-quality capture.
Which products is this documentation for?

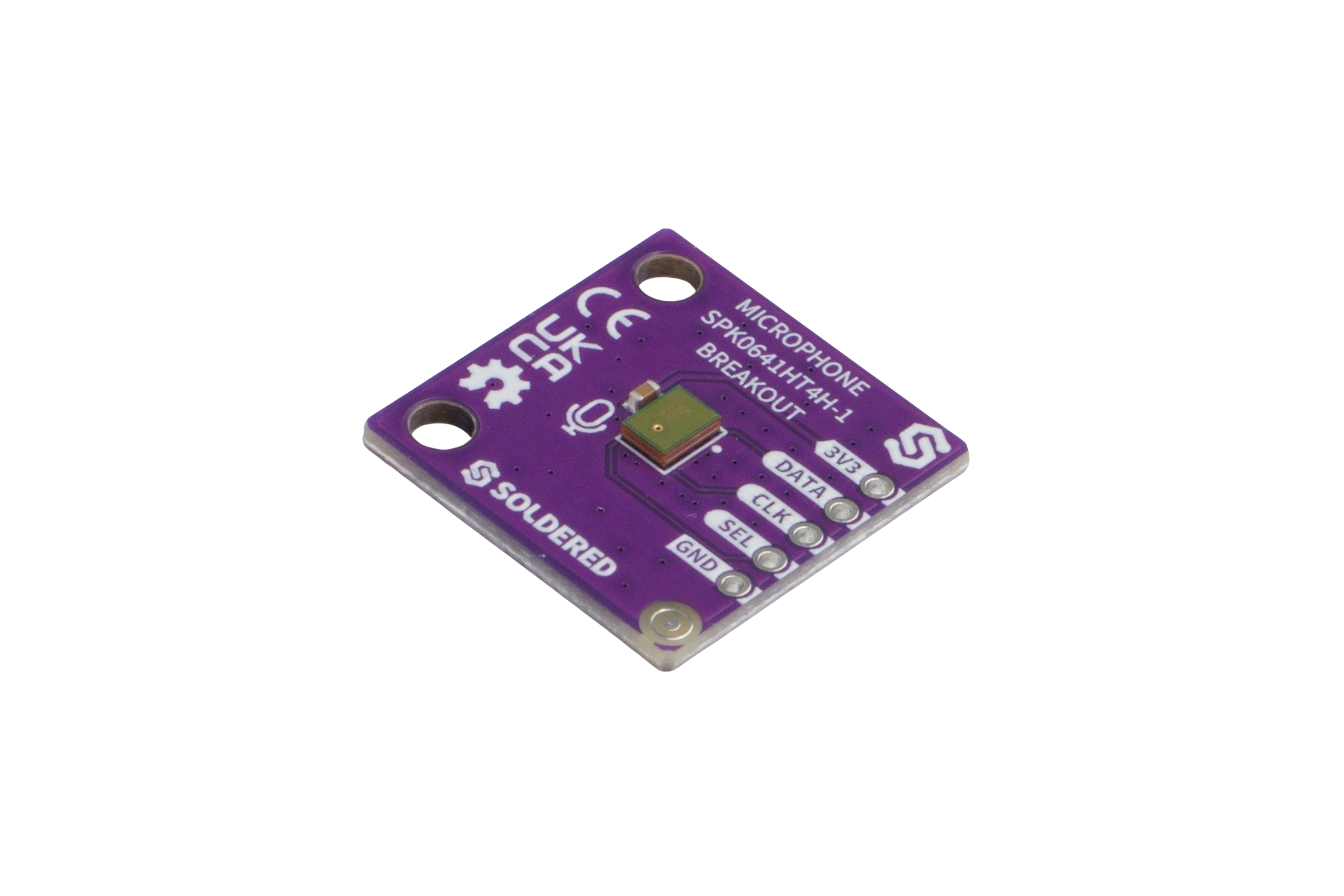

MEMS Microphone SPK0641HT4H Breakout
333357
Key Features
- Output: PDM (Pulse Density Modulation), supports dual multiplexed channels
- Frequency Response: Flat, 20 Hz – 20 kHz
- Signal-to-Noise Ratio (SNR): 64 dB(A)
- Distortion: 2.2% at 115 dB SPL
- Operating Modes: Multiple modes for power vs. performance
- Current Consumption: As low as 230 µA (low-power mode)
- Directionality: Omnidirectional
- RF Shielding: Integrated for noise immunity
- Dimensions: 22 x 22 mm (0.9 x 0.9 inches)
You may also need

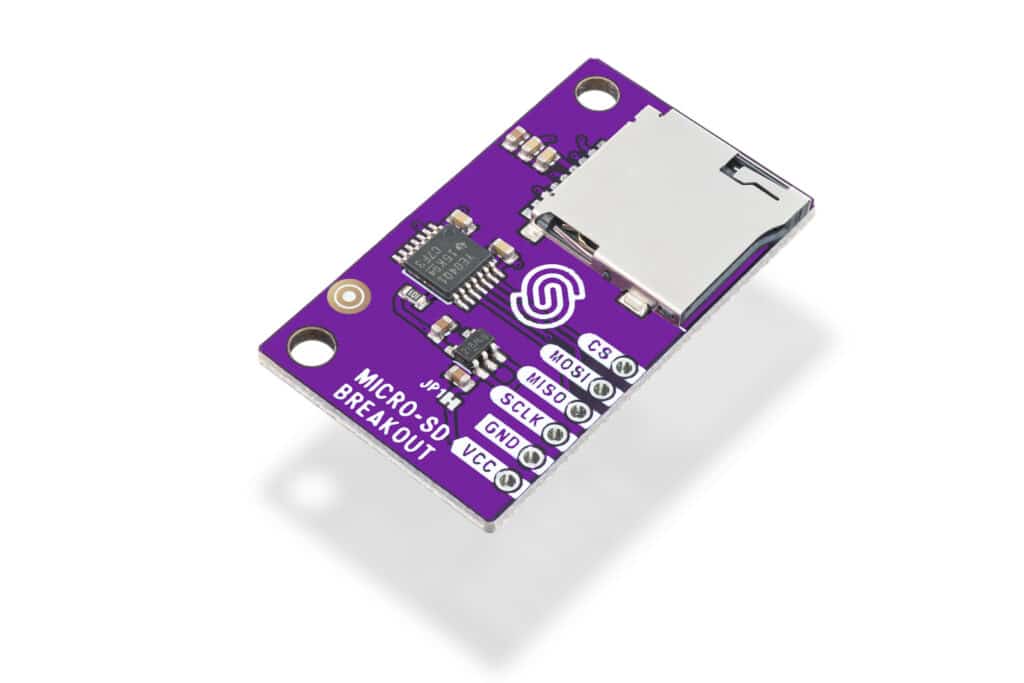

microSD card reader
