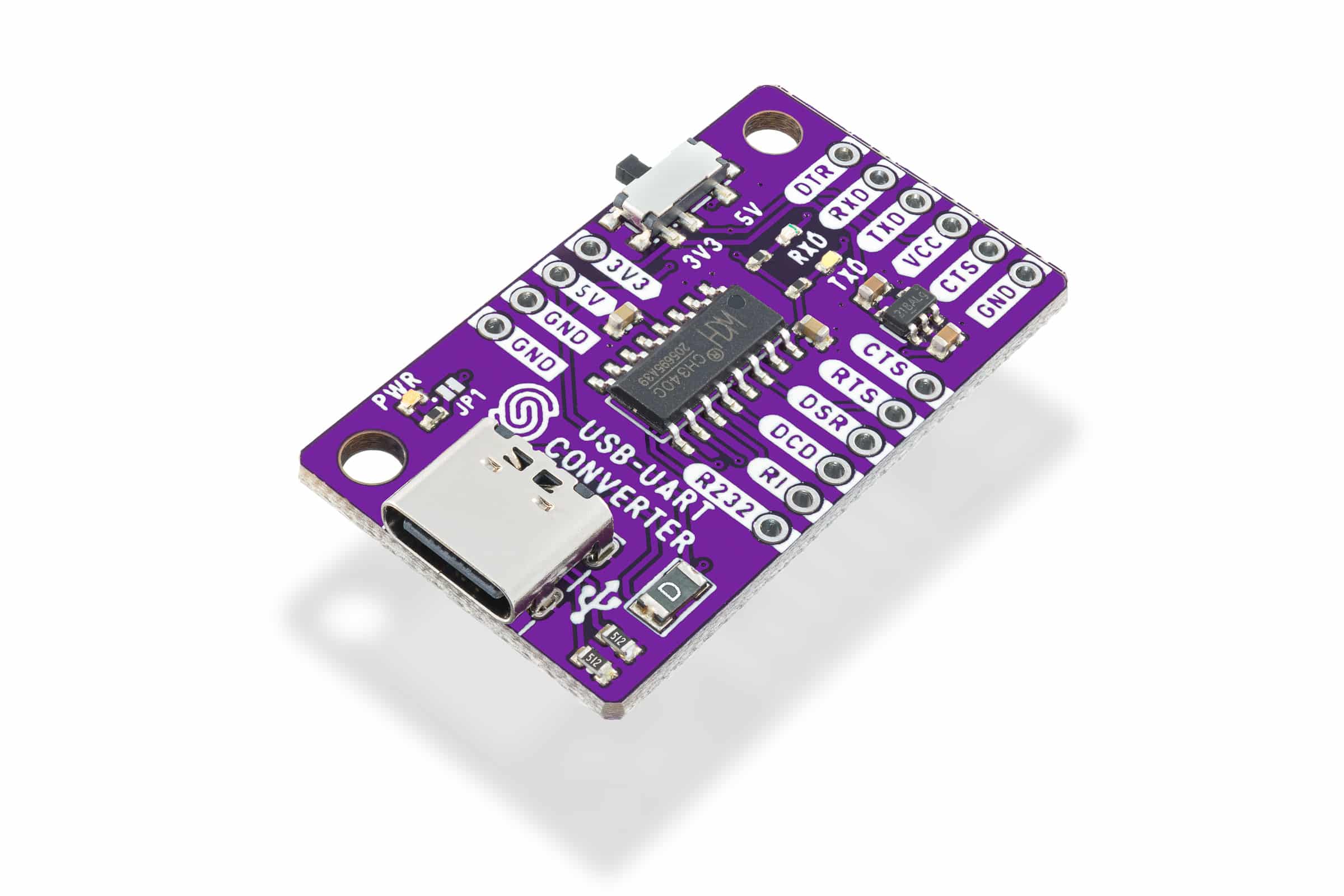

USB-UART CH340 Converter Board
The USB-UART CH340 Converter Board is a compact and reliable solution for serial communication between computers and microcontroller-based projects. It enables USB-to-serial conversion, making it an essential tool for programming, debugging, and data exchange in embedded systems. With its CH340 chip, it provides a cost-effective and widely compatible alternative to FTDI-based converters, supporting multiple baud rates and plug-and-play functionality across various operating systems.
USB-UART CH340 Converter Board
Which product is this documentation for?
USB-UART CH340 Converter Board
USB-to-Serial Converter with CH340
Key Features
- USB to UART conversion: Enables serial communication between microcontrollers and computers
- Baud rate support: Configurable speeds up to 2 Mbps
- Operating voltage: Works with 3.3V and 5V systems
- Dimensions: 38 x 22 mm (1.5 x 0.9 inch)
- Plug-and-Play Simplicity: Automatically recognized by most operating systems with minimal setup required
