Digital Potentiometer - Overview

Digital potentiometer

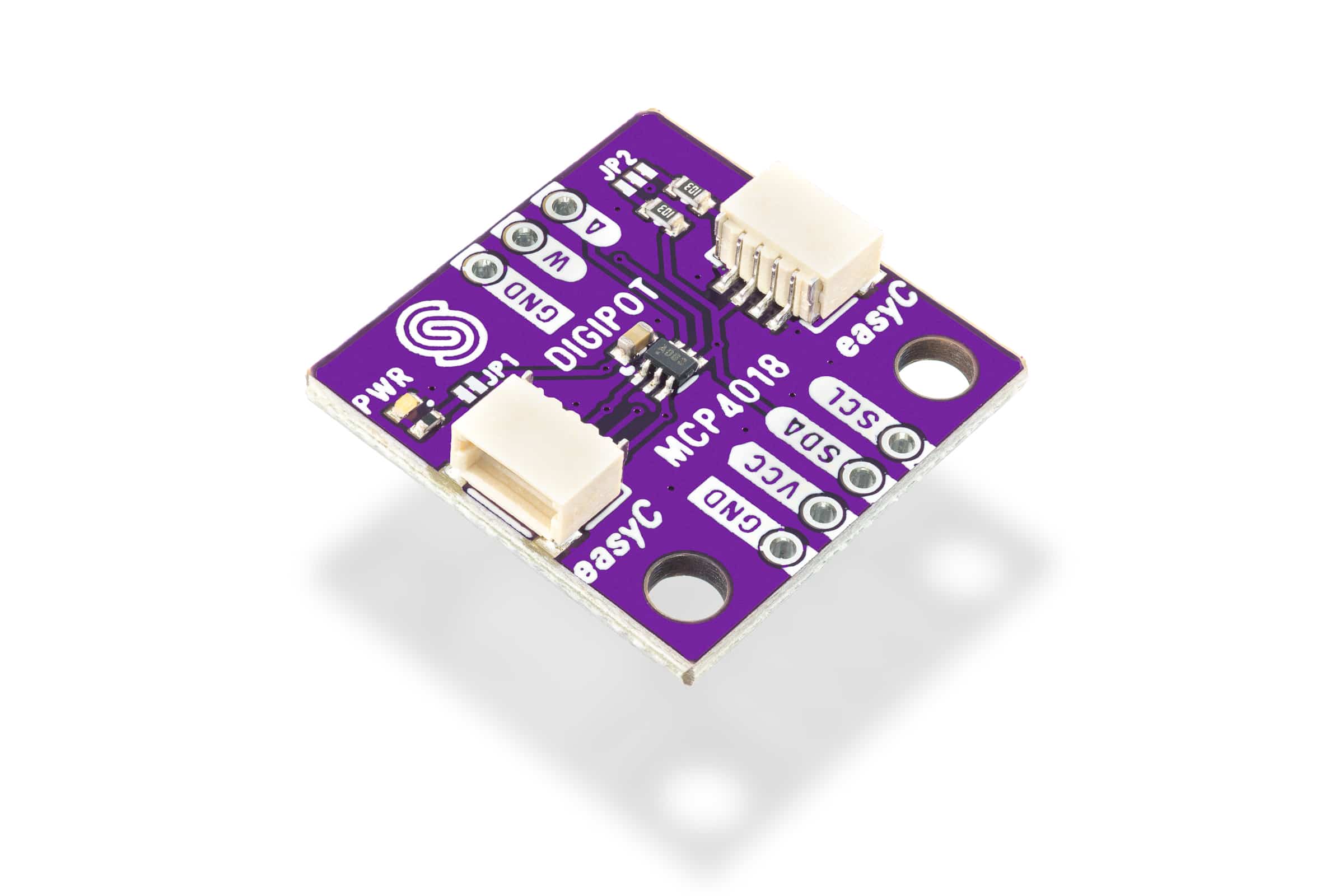

The Digital potentiometer breakout is a device identical to a potentiometer, except that instead of a physical rotating part that adjusts the resistance, it uses digital communication. The board is based on the MCP4018 digital potentiometer. The resistance is adjusted via I2C communication on hardware-defied address of 0x2F. Board is designed for seamless Qwiic (formerly easyC) connectivity—eliminating the need for soldering.

Digital potentiometer

Which products is this documentation for?

Digipot 5k MCP4018 breakout

333090

Digipot 10k MCP4018 breakout

333091

Digipot 50k MCP4018 breakout

333092

Digipot 100k MCP4018 breakout

333093

Key features

Voltage: 3.3V
Potentiometer resistance:
- 5k
- 10k
- 50k
- 100k
Wiper resistance: 100ohm
Communication: I2C
Connector: 2 × Qwiic (formerly easyC) ports (plug-and-play, no soldering needed)
Mounting: Two mounting holes for secure attachment
Dimensions: 22 × 22 mm (0.9 × 0.9 inch)
