Dual motor H-bridge driver DRV8424P​

The DRV8424P dual H-bridge motor driver breakout is a compact, efficient solution for driving two DC motors or one bipolar stepper motor. It supports motor supply voltages from 4.5V to 33V, and delivers up to 1.5A continuous current per H-bridge (with heatsinking), making it ideal for medium-power motor control applications.

With built-in current regulation, adjustable decay modes, and low-power sleep mode, the DRV8424P driver enables flexible and energy-efficient motion control. It is easily interfaced with microcontrollers like Arduino and supports PWM input for speed and direction control.

DRV8424P dual motor driver

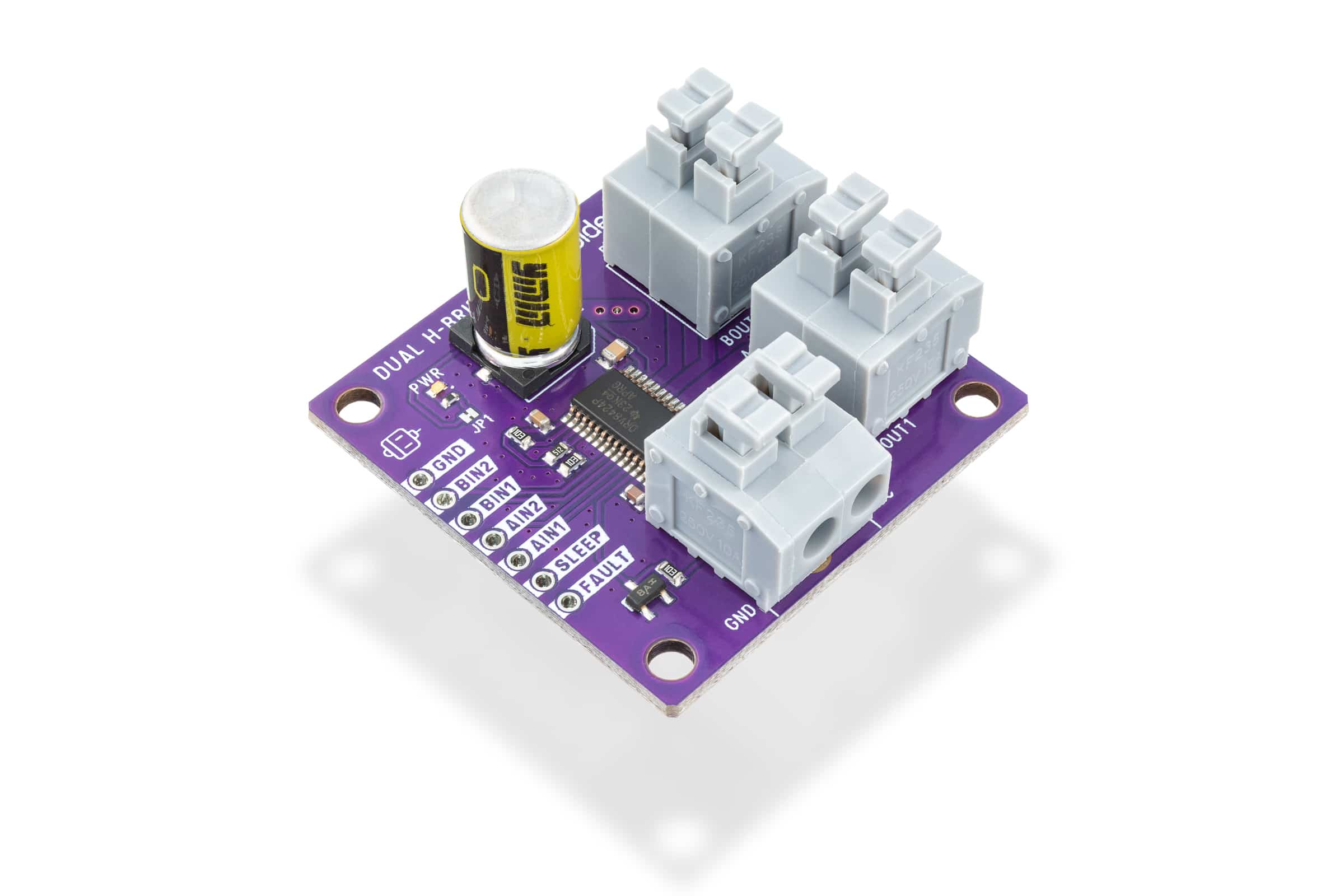

DRV8424P dual motor driver breakout board

Which product is this documentation for?​

Dual motor H-bridge DRV8424P driver breakout

Dual motor H-bridge DRV8424P driver breakout

333160

Key features​

  • Driver IC: DRV8424P by Texas Instruments
  • Voltage range: 4.5V – 33V
  • Output current: up to 1.5A continuous per H-bridge (with heatsink)
  • Control interface: PWM (speed and direction)
  • Number of H-bridges: 2 (dual DC motor or single stepper motor)
  • Sleep mode: ultra-low power standby feature
  • Protection: overcurrent, undervoltage, thermal shutdown
  • Dimensions: 24 x 21 mm (0.94 x 0.83 inch)
