GNSS GPS L86-M33​

The GNSS GPS L86-M33 is a compact, high-performance module designed for accurate positioning and navigation applications. Equipped with GNSS (Global Navigation Satellite System) support, this receiver can track multiple satellite systems, ensuring reliable location data even in challenging environments. The device communicates via UART for easy integration with microcontrollers like Arduino, making it a great choice for outdoor navigation, robotics, and IoT applications.

gnss-gps
GNSS GPS L86-M33

Which products is this documentation for?​

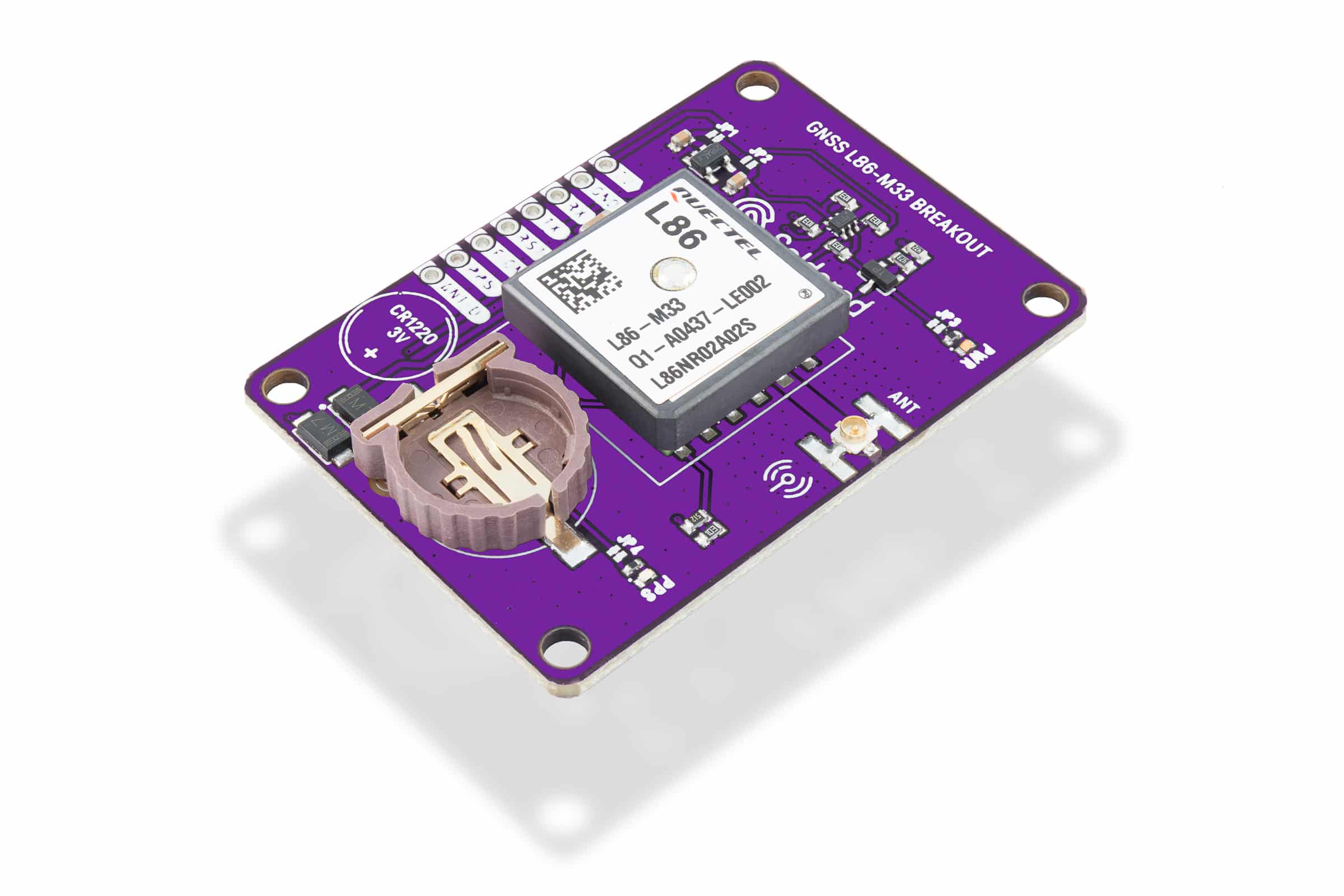

GNSS GPS L86-M33

GNSS GPS L86-M33

333201

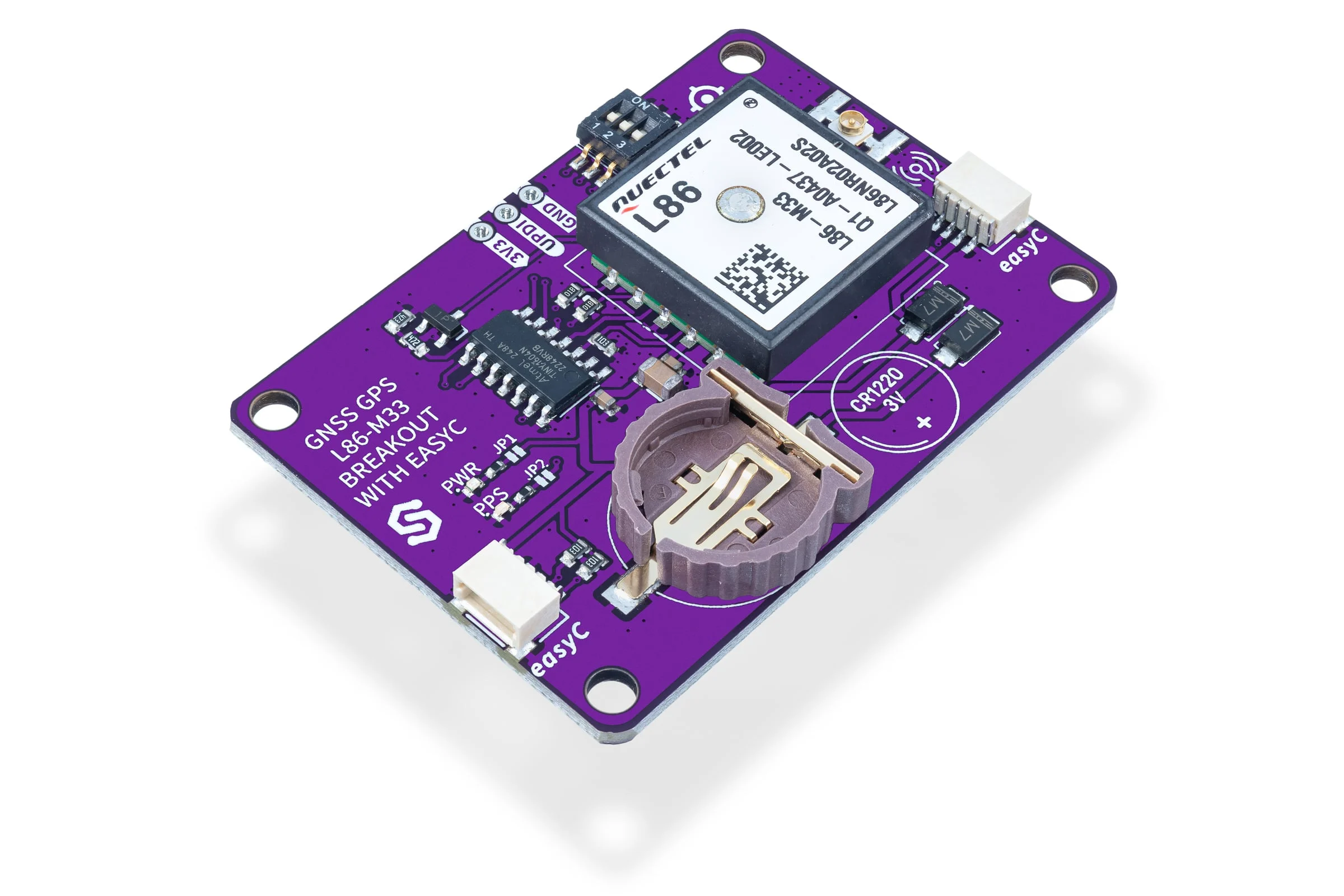

GNSS GPS L86-M33 with easyC

GNSS GPS L86-M33 with easyC

333213

Key Features​

  • Position Accuracy: 2.5 meters (CEP50) typical
  • Multiple GNSS Support: Works with GPS, GLONASS, and Galileo systems for improved positioning accuracy.
  • High Sensitivity: Features a high-performance chipset for precise tracking even in challenging environments with weak satellite signals.
  • Low Power Consumption: Designed for low power consumption, making it ideal for battery-powered applications.
  • Communication: UART interface for easy connection to microcontrollers and other devices.
  • Update Rate: 1 Hz (default), configurable to 5 Hz or 10 Hz for higher accuracy.
  • I2C/SPI Support: Additional communication options for flexible system integration.
  • Size: Compact form factor of 54mm x 38mm (2.1 x 1.5 inch).
  • Operating Voltage: 3.3V and 5V compatibility (with onboard voltage regulator).
