Lcd I2C - Overview

LCD I2C adapter​

This LCD I2C Adapter simplifies the connection between your LCD display and any Arduino-compatible board, such as Dasduino. Utilizing I2C communication, it only requires two pins for operation, making setup quick and straightforward.

Our LCD I2C displays come with the adapter soldered on, which enables characters to be displayed on the LCD screen via the I2C bus.

With our provided library, you can get started in just a few minutes. Plus, with Qwiic (formerly easyC) connectivity, no soldering is required, making the process even more convenient!

lcd-l2c-adapter
LCD I2C Adapter

Which products is this documentation for?​

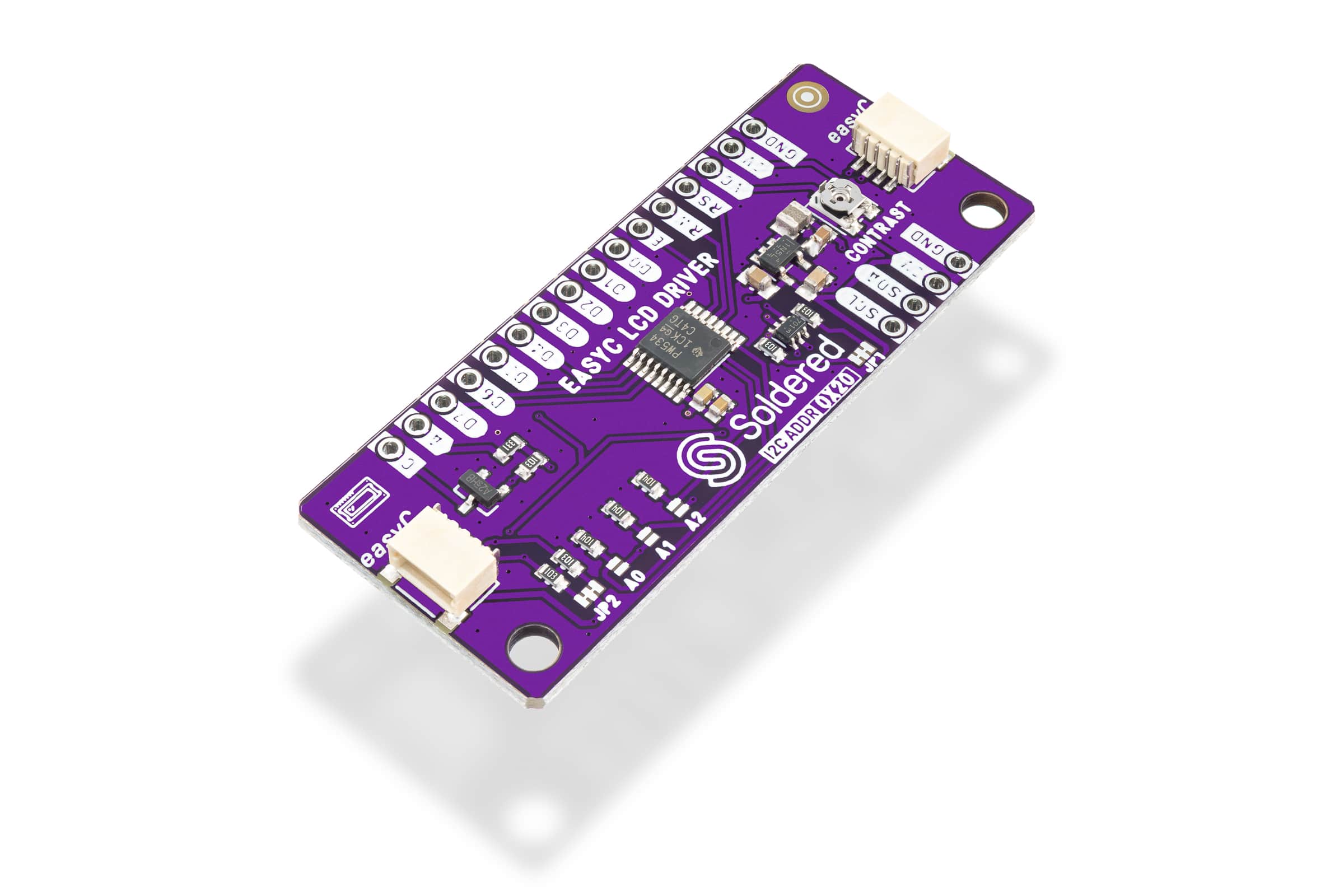

LCD I2C Adapter

LCD I2C Adapter

333003
LCD display 16x2 I2C white/blue

LCD display 16x2 I2C white/blue

333171

Key features​

  • Logic / Operating voltage level: 3.3V (onboard regulator for 5V compatibility)
  • I2C
    • Modular Address: 0x20 - 0x27
    • Communication: 400kHz
  • Compatible with HD44780 LCD driver
  • LCD version
    • Color of symbols: White
    • Backlight: Blue
    • Number of chars: 16 chars in 2 rows
    • Voltage: 3V3
    • Display dimensions: 64.5 x 16 mm (2.1 x 0.9 inch)
    • Dimensions: 80 x 36 x 12 mm (3.1 x 1.4 x 0.5 inch)

You may also need​

Qwiic cable

Qwiic cable

Qwiic (formerly easyC) compatible cables with connectors on both ends, available in various lengths.
