Macro Pad Solder Kit - Overview

Introduction​

The Macro Pad Solder Kit is a fun and educational electronics kit that teaches you the fundamentals of soldering and electronics while allowing you to build a functional custom device. For those unfamiliar with a macropad, it is a compact peripheral device equipped with programmable keys (macros), used to trigger shortcuts or automated commands. Using the onboard RP2040 microcontroller, each key can be programmed to perform specific actions or execute sequences of commands. In addition, the rotary encoder can also be programmed, allowing it to control functions such as volume adjustment, scrolling or other custom inputs. All this makes the macro pad a useful tool for speeding up repetitive task and improving work efficiency.

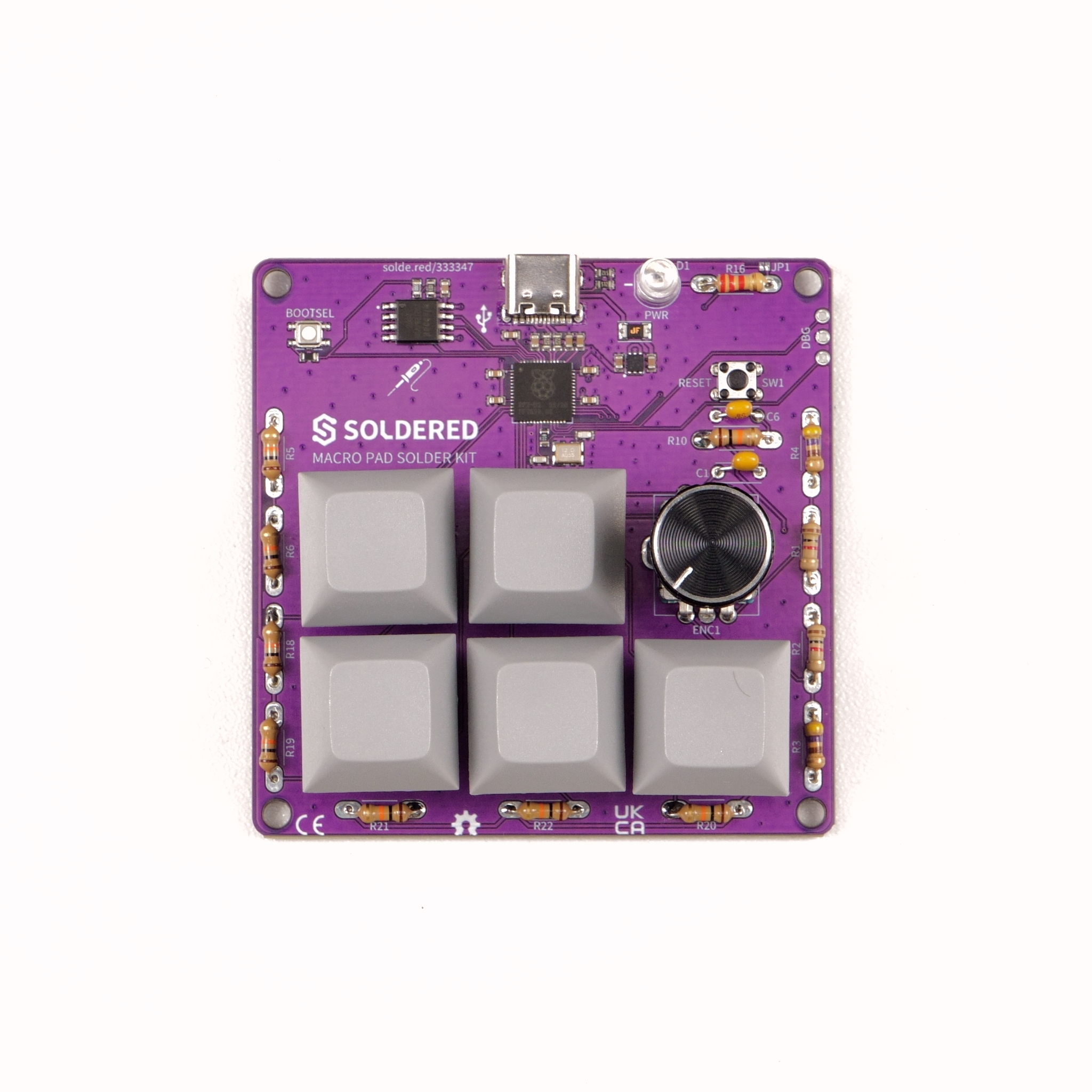

Assembled macro pad image
Macro Pad Solder Kit

Which product is this documentation for?​

Macro Pad Solder Kit

Macro Pad Solder Kit

333347

Contents of the kit​

Assembled macro pad image
Macro Pad Solder Kit
  • PCB: Macro Pad circuit board with pre-soldered microcontroller, USB-C connector, and other SMD components
  • Microcontroller: RP2040 dual-core ARM Cortex-M0+ (133 MHz, 264 KB SRAM), fully reprogrammable via USB-C
  • 5 x MX switches
  • 5 x Keycaps (for the MX switches)
  • Rotary encoder (cap included)
  • 1 x LED
  • Resistors:
    • 8 x 10 kΩ
    • 2 x 470 Ω
    • 2 x 1 kΩ
    • 1 x 2.2 kΩ
  • Capacitor 0.1 µF
  • 1 x pushbutton
  • Male Header pins
