NCV7329 – Overview

LIN Transceiver NCV7329 Breakout​

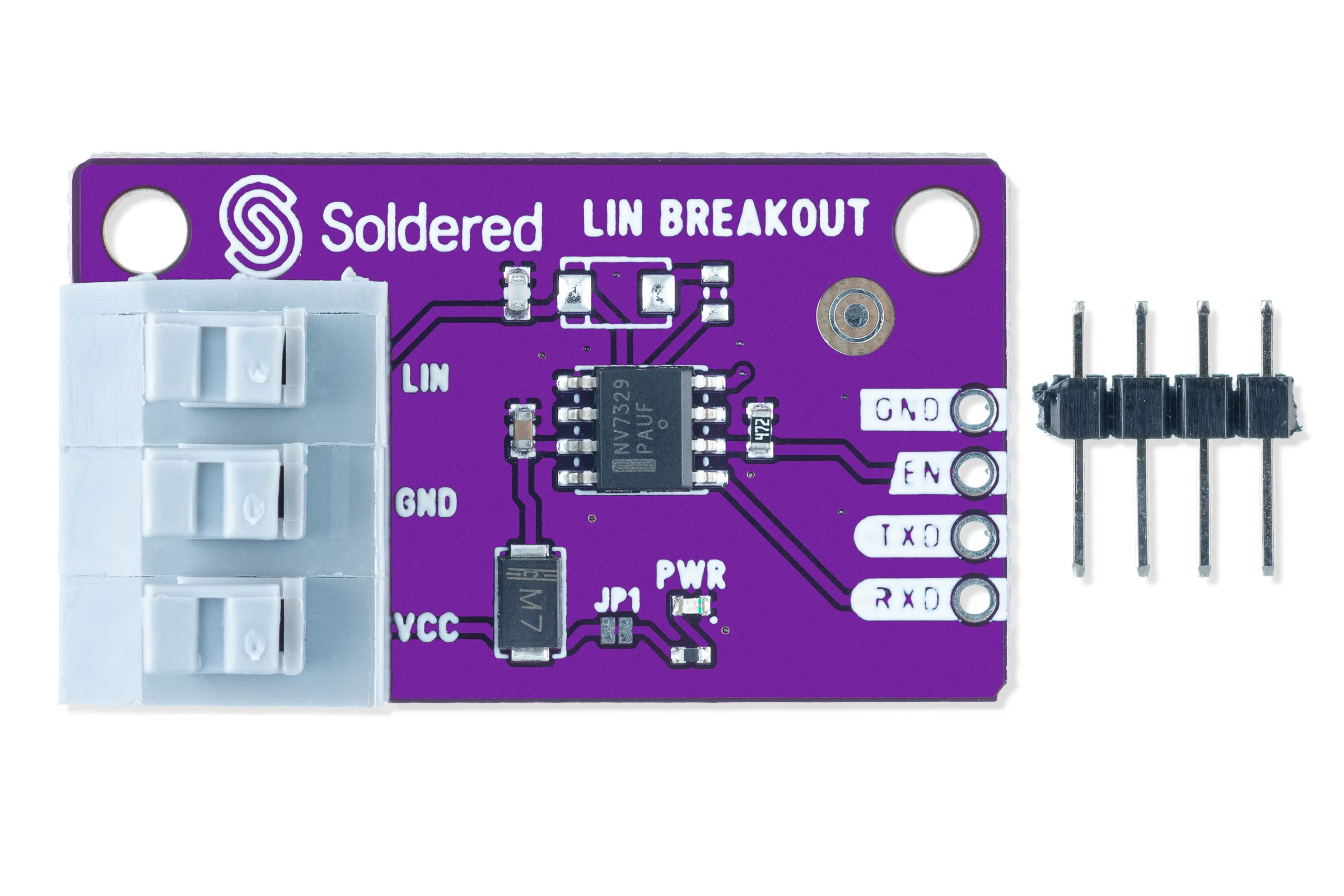

The LIN Transceiver NCV7329 Breakout is a stand-alone module designed to facilitate communication between microcontrollers and the Local Interconnect Network (LIN) bus, a single-wire communication protocol commonly used in automotive applications. This breakout board utilizes the NCV7329 transceiver, ensuring reliable and efficient data exchange in LIN-based networks.

LIN Transceiver NCV7329 Breakout
LIN Transceiver NCV7329 Breakout

Which products is this documentation for?​

LIN Transceiver NCV7329 Master Breakout

LIN Transceiver NCV7329 Master Breakout

333026
LIN Transceiver NCV7329 Slave Breakout

LIN Transceiver NCV7329 Slave Breakout

333027

Key Features​

  • Operating Voltage: 18V
  • Max. Device Number: 16
  • Transmission Rate: Capable of communication speeds ranging from 1 kbps to 20 kbps.
  • Protection Mechanisms: Includes thermal shutdown, undervoltage protection, and safeguards against transients on bus pins.
  • Operating Modes:
    • Normal Mode: Enables the LIN transceiver for active communication.
    • Sleep Mode: Disables the transceiver to minimize power consumption.
    • Standby Mode: A transitional state activated upon detecting a wake-up event on the LIN bus.
  • Dimensions: Compact form factor measuring 21.3 x 22.6 x 12.3 mm (0.8 x 0.9 x 0.5 inches).
