Introduction​

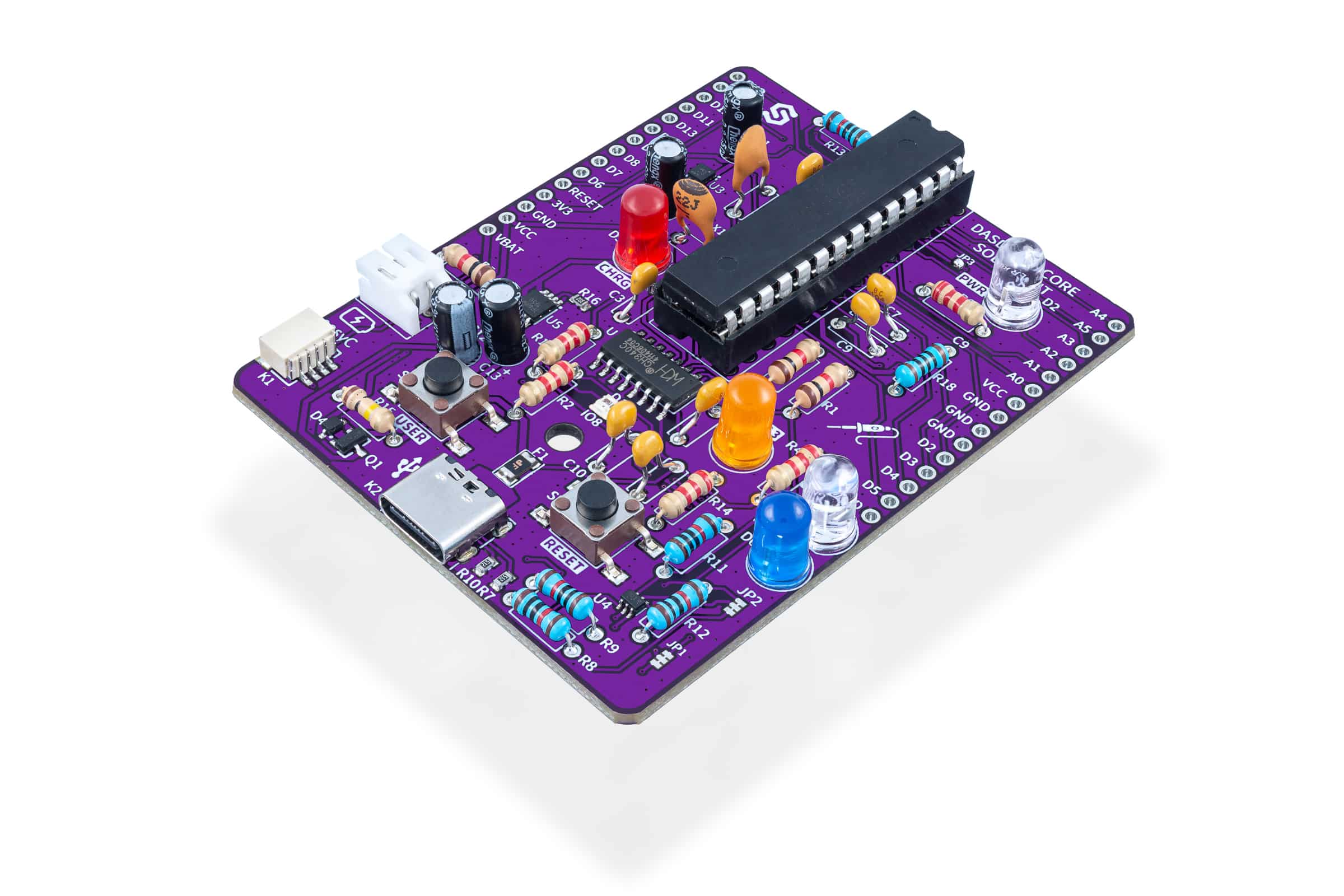

Make your own Dasduino is an educational electronics kit that teaches you how to solder, with which you end up with a functional microcontroller board. It is based on the ATmega328P microcontroller, and all SMD components are already soldered on the board. The set also includes a THT socket for the microcontroller, which simplifies the replacement of the microcontroller should it ever become necessary.

What does it do​

When this kit is fully assembled, it functions as any ATmega328P-based microcontroler board.

Make yout own Dasduino
Make yout own Dasduino

Contents of the kit​

  • PCB
  • 7 capacitors of 100nF
  • 4 capacitors of 2.2uF
  • 2 capacitors of 22pF
  • 5 2.2kOhm resistors
  • 5 10-kOhm resistors
  • 3 1-kOhm resistors
  • 1 100-kOhm resistors
  • 1 100-ohm resistors
  • 1 JST battery connctor
  • 5 LEDs (purple, white, ble, red, orange, one of each)
  • Socket for ATmega328P
  • ATmega328P MCU
