Stepper Motor Driver - Overview

Basic stepper driver

The Basic Stepper Driver provides precise control for stepper motors up to 14V and 800mA, featuring built-in LED indicators for easy monitoring and seamless integration with microcontrollers via an Arduino library, available as a standalone driver or with an included stepper motor.

Basic Stepper Driver

---

Which products is this documentation for?

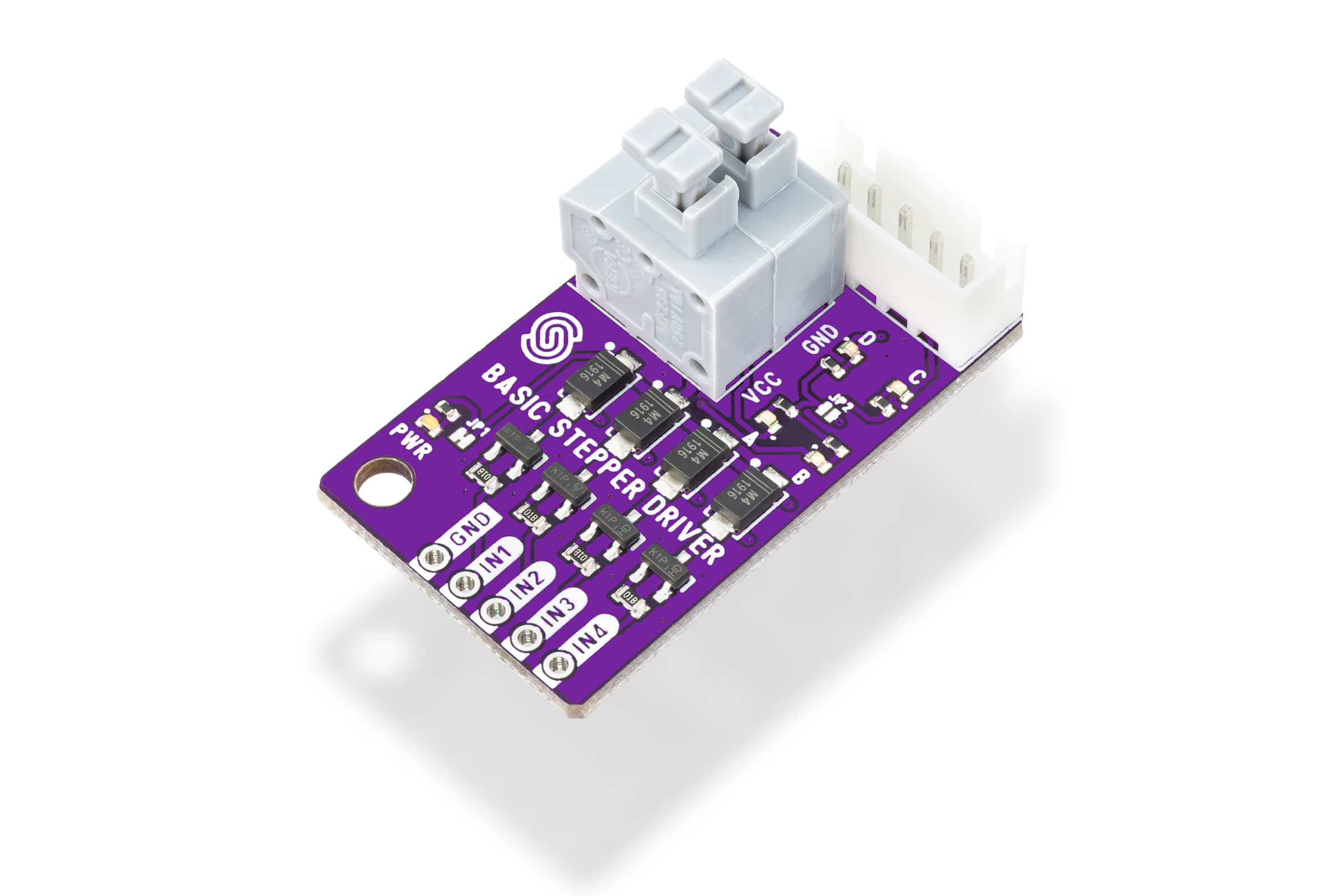

Basic Stepper Driver

333134

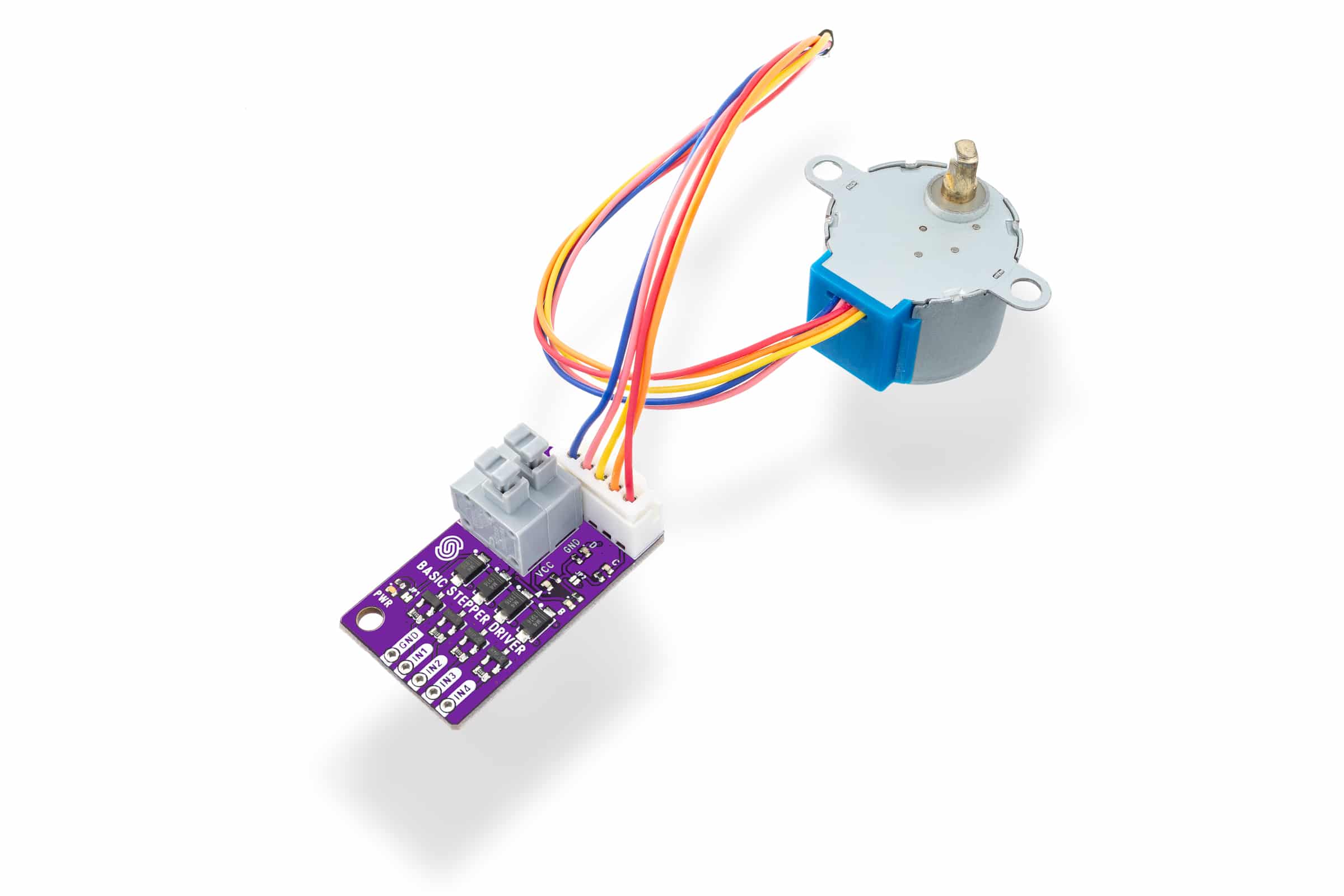

Stepper Motor With Driver

333250

---

Key features

• Pulse input voltage: 3.3V – 5V
• Stepper supply voltage: 3.3V – 14V
• Current: Up to 800mA
• Dimensions: 38 × 22 mm (1.5 × 0.9 inch)
• 4 × NPN-SOT-23-3 transistors onboard for digital pulse control from a microcontroller
• Stepper motor version includes 28BYJ-48 5V DC stepper motor
