2.4 TFT LCD with Touch – Overview

2.4" TFT LCD Breakout with Touch​

The 2.4" TFT LCD Breakout brings vibrant full-color display and capacitive touchscreen capabilities to your Arduino-compatible projects. Designed to simplify prototyping and enhance UI development, this display features an SPI interface, microSD slot, and onboard touch controller—all in a compact breakout format.

Whether you're building an interface for a sensor project, a data logger with display, or a touchscreen menu, this breakout is ready for action.

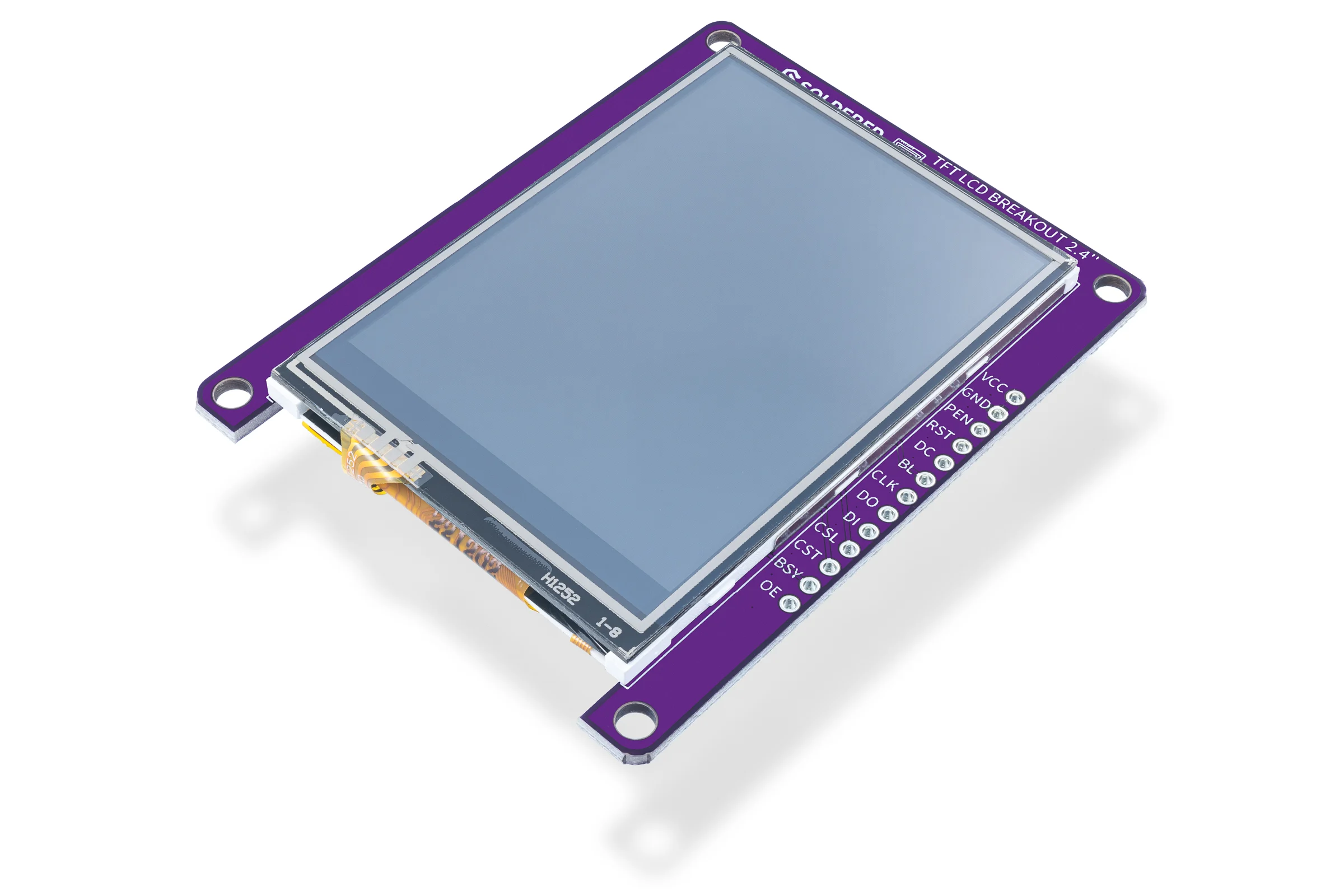

2.4 inch TFT LCD Touch Breakout
2.4inch TFT LCD Touch Breakout

Which product is this documentation for?​

2.4" TFT LCD Breakout with Touch

2.4" TFT LCD Breakout with Touch

333113

Key features​

  • Screen type: TFT LCD, full color
  • Screen size: 2.4"
  • Resolution: 240 x 320 pixels
  • Touchscreen: Capacitive, I2C interface
  • Display controller: ILI9341 (for TFT)
  • Touch controller: FT6206
  • Interface:
    • Display: SPI (up to 32 MHz)
    • Touch: I2C (0x38 default address)
  • Backlight control: Via pin
  • microSD slot: SPI interface
  • Operating voltage: 3.3V logic (level-shifted for compatibility)
  • Dimensions: 70 x 54 mm / 2.8 x 2.1 inch
