TPS61322A - Overview

Mini low-power TPS613222A boost converter​

TPS613222A is a compact and efficient boost converter designed to provide a stable power supply for your low-voltage devices, ensuring they run smoothly and reliably. The TPS613222A steps up input voltages from as low as 0.9V to output voltages up to 5.5V. This makes it perfect for battery-powered devices, including portable gadgets, wearables, and other low-power electronics. Its ultra-low quiescent current helps extend battery life, making your devices more efficient and eco-friendly. There are quick terminals with springs on the board for even simpler and faster connections within the system.

ℹ️
The TPS613222A output voltage value cannot be dynamically tuned, for different output voltage check out other members of TPS61322 models
Mini low-power TPS613222A boost converter
Mini low-power TPS613222A boost converter

For Which Products Is This Documentation Intended?​

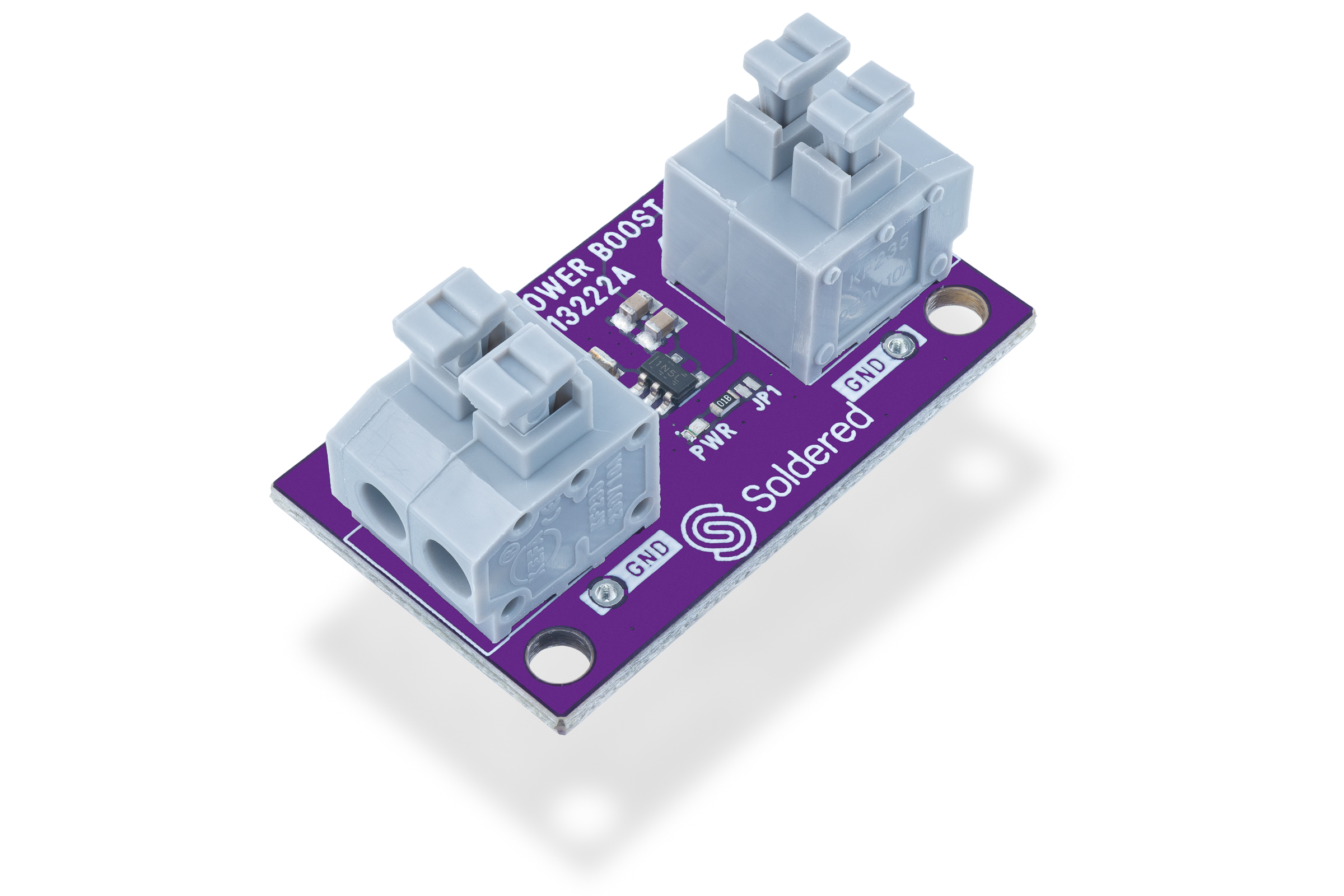

Mini low-power TPS613222A boost converter

Mini low-power TPS613222A boost converter

333096

Key Features​

  • Input voltage: 0.9V - 5.5V
  • Output voltage: 1.8V - 5.5V
  • IC: TPS613222A
  • Dimensions: 38 x 22 mm (1.5 x 0.9 inches)
