Logic Level Converter I2C TXS0104​

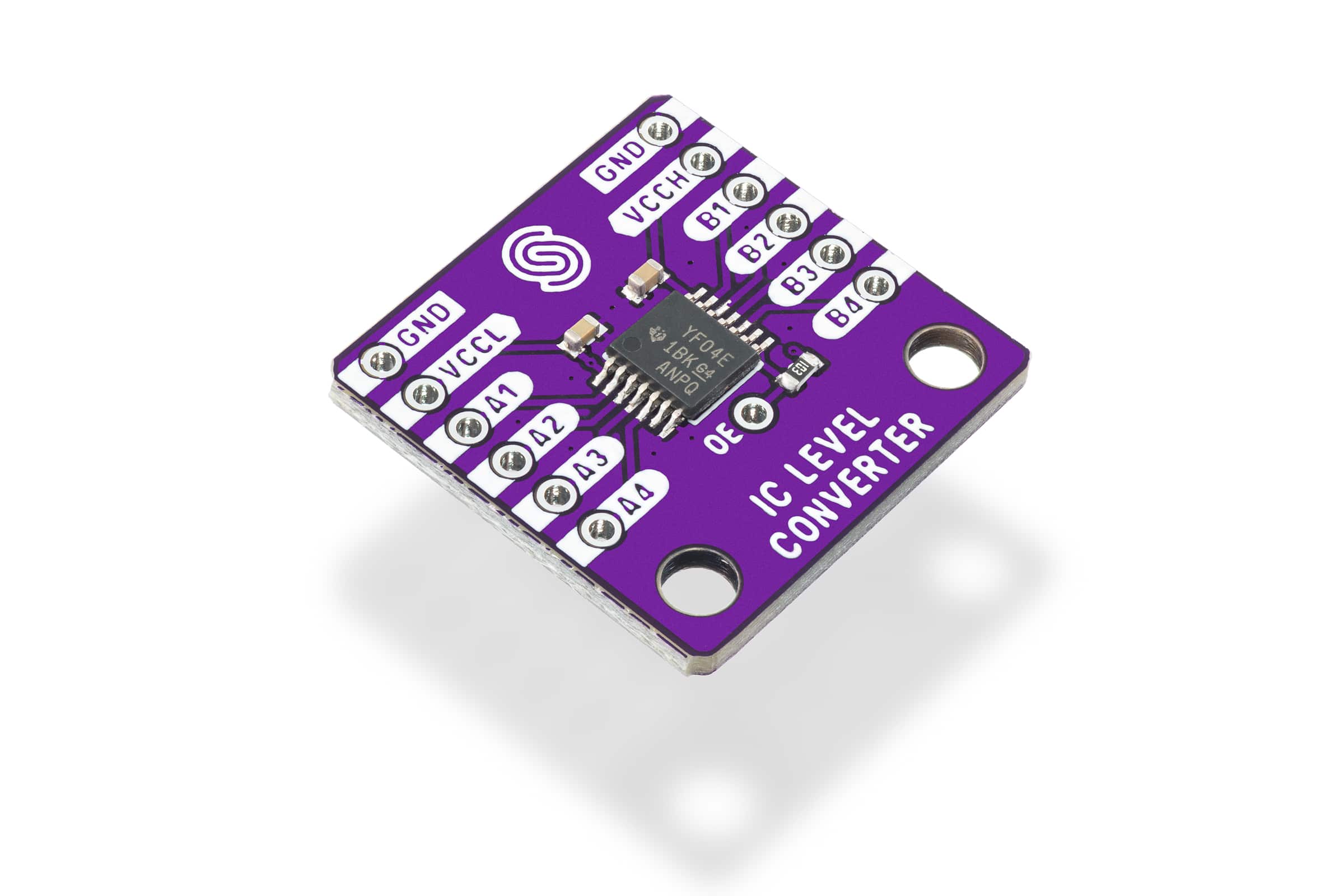

This board is specialized in signal conversion for the I2C communication protocol. It uses a special integrated circuit that enables high-speed communication.

The Logic Level Converter Board provides bidirectional voltage level translation between two signals, enabling communication between devices operating at different logic voltages. Whether you're connecting a 5V microcontroller to a 3.3V sensor or working with other voltage combinations, this module ensures compatibility while protecting lower-voltage components from damage.

logic-level-converter
Logic Level Converter Board

Which product is this documentation for?​

Logic Level Converter I2C TXS0104

Logic Level Converter I2C TXS0104

333016

Key Features​

  • Bidirectional Voltage Level Translation: Safely shifts voltage levels between low voltage and high voltage systems (usually 3.3V and 5V)
  • Communication protocol: I2C
  • Number of Channels: 4
  • Maximum Voltage: 30V
  • Mounting: Two mounting holes for secure attachment
  • Dimensions: 22 x 22 mm (0.9 x 0.9 inches)
