W5500 - Overview
Ethernet controller W5500 board
The W5500 is a hardwired TCP/IP embedded Ethernet controller that provides an easier Internet connection for embedded systems. W5500 enables users to add Internet connectivity to their applications with a single chip that embeds a TCP/IP stack and integrates a 10/100 Ethernet MAC and PHY. WIZnet's hardwired TCP/IP is a market-proven technology that supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols. W5500 includes a 32Kbyte internal memory buffer for Ethernet packet processing. By using the W5500, you can implement Ethernet applications with a simple socket program.
SPI (Serial Peripheral Interface) is provided for easy integration with an external MCU. The W5500’s SPI supports 80 MHz speed and a new efficient SPI protocol for high-speed network communication. To reduce the system's power consumption, the W5500 provides WOL (Wake on LAN) and a power down mode.
Which product is this documentation for?

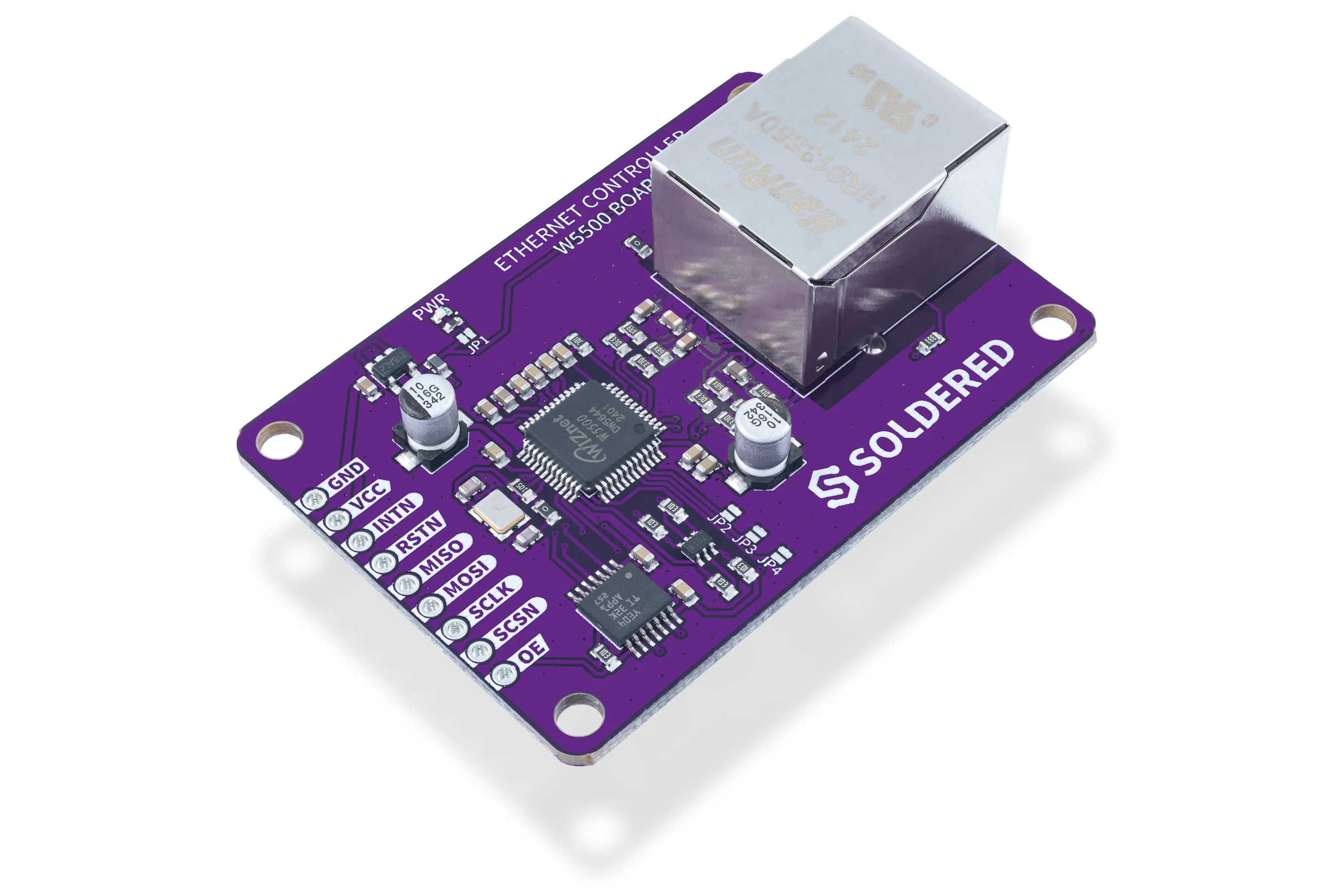

Ethernet controller W5500 board
333039
Key Features
- IC: W5500
- Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Supports up to 8 independent sockets simultaneously
- Supported modes: Power down, Wake on LAN (over UDP)
- Supports High Speed SPI
- Internal memory for TX/RX Buffers: 32Kbytes
- IP fragmentation is NOT SUPPORTED
- Mounting: Four mounting holes for secure attachment
- Dimensions: 54 x 38 mm (2.1 x 1.5 inches)
