Apds 9960 - Overview

APDS-9960 Color and Gesture Sensor​

The Color and Gesture sensor APDS-9960 breakout is a compact and powerful module designed for multiple sensing capabilities. It enables gesture recognition, allowing it to detect movements such as up, down, left, and right. In addition to gestures, it features proximity sensing, accurately measuring the distance to objects within a range of 10 to 20 cm. It features I2C communication and is designed for seamless Qwiic (formerly easyC) connectivity—eliminating the need for soldering.

apds9960 Color and Gesture Sensor
APDS-9960 Color and Gesture Sensor

Which product is this documentation for?​

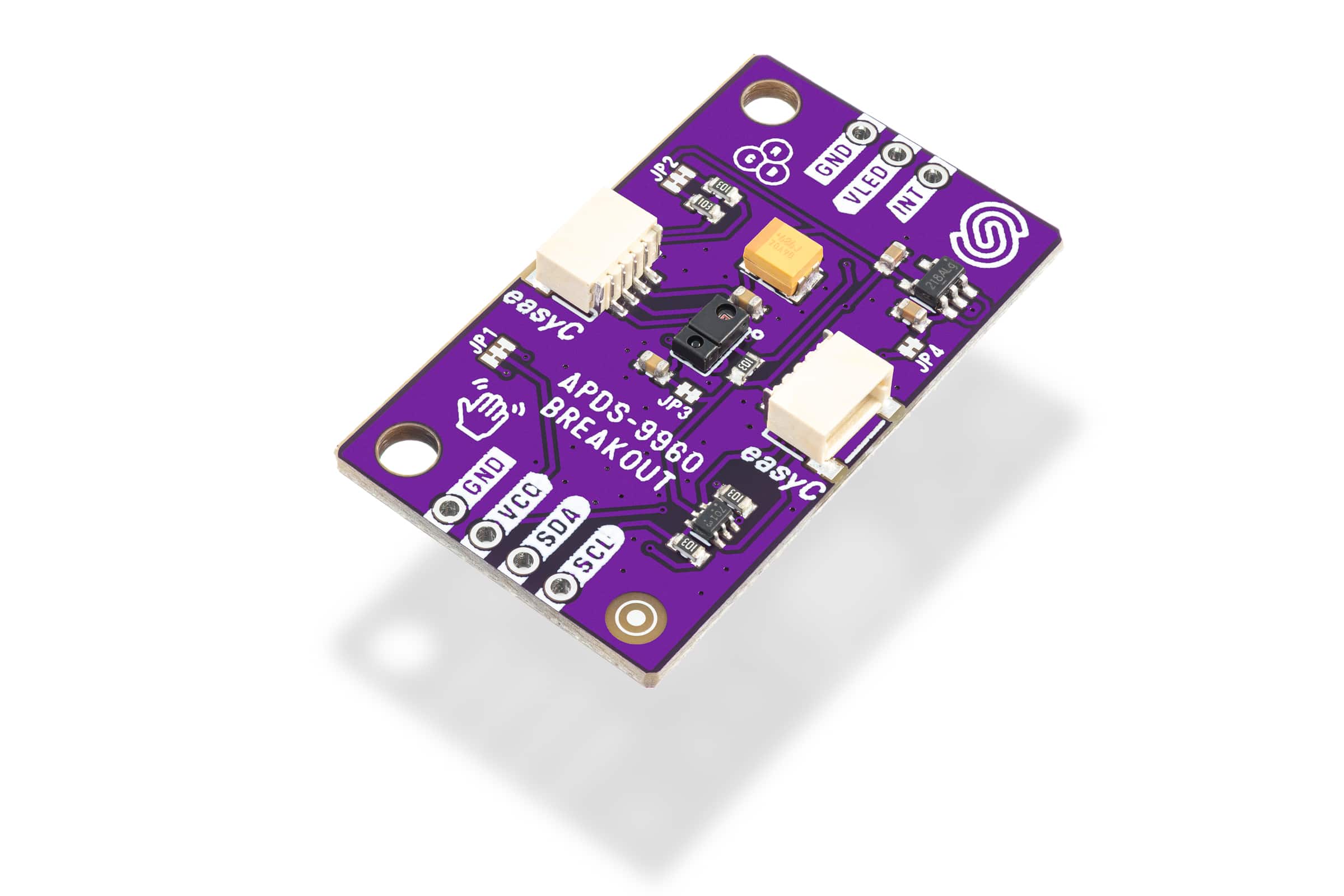

Color and Gesture sensor APDS-9960 breakout

Color and Gesture sensor APDS-9960 breakout

333002

Key Features​

  • Complex Gesture Sensing
    • Gesture recognition: up, down, left, right
  • Proximity Sensing
    • Consistent readings
    • Distance: 10 to 20 cm
  • Ambient Light and RGB Color Sensing:
    • UV and IR blocking filters
    • Programmable gain and integration time
    • Very high sensitivity – suited for operation in open air and effective behind dark glass
  • I2C-bus Fast Mode Compatible Interface
    • Fixed address: 0x39
    • Data rates up to 400 kHz
    • Dedicated Interrupt Pin
  • Logic / Operating voltage level: 3.3V (onboard regulator for 5V compatibility)
  • Connector: 2 × Qwiic (formerly easyC) ports (plug-and-play, no soldering needed)
  • Mounting: Two mounting holes for secure attachment
  • Dimensions: 38 × 22 mm (1.5 × 0.9 inch)
