Battery Protection - Hardware details

Pinout

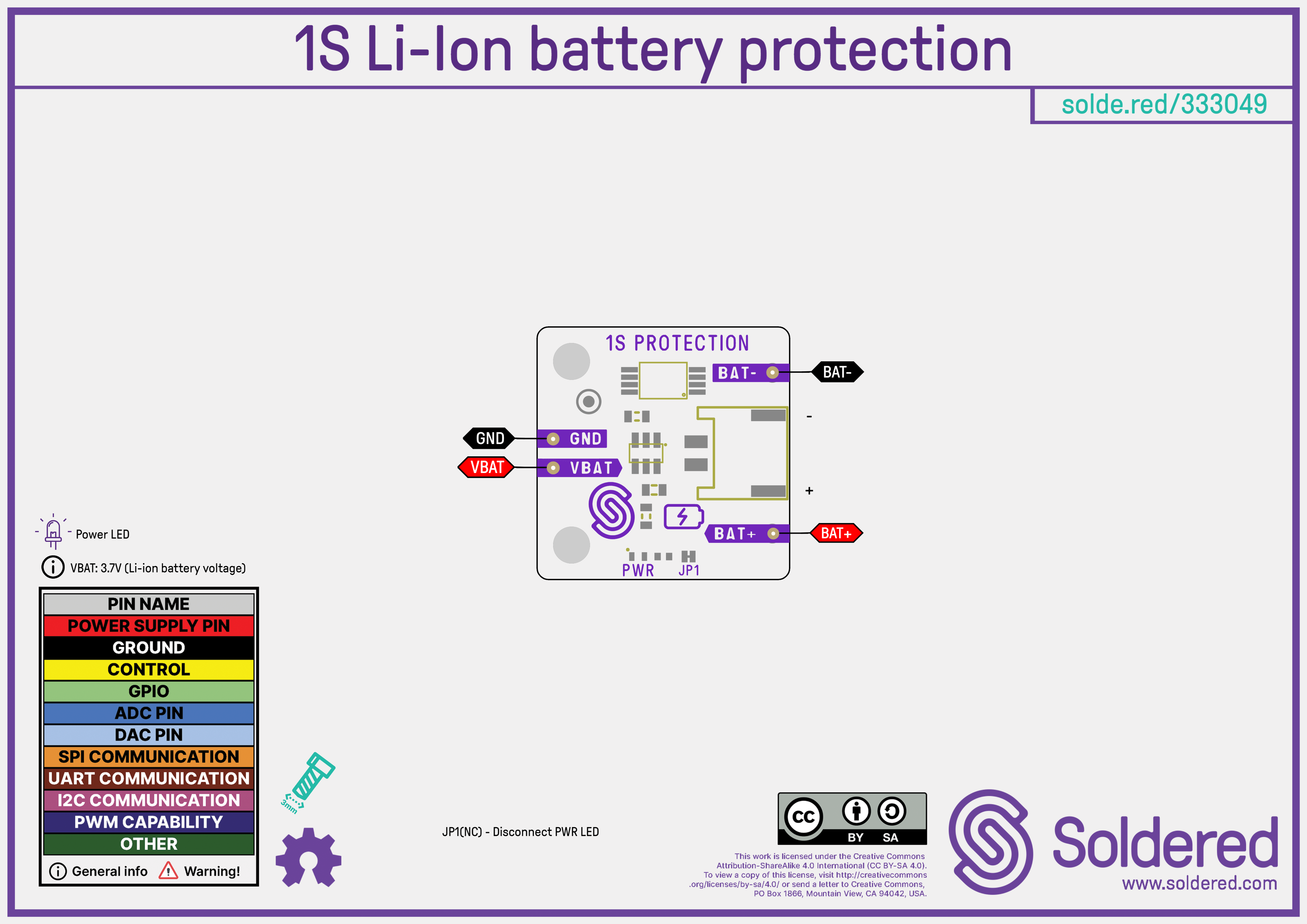

1S Li-Ion Battery Protection pinout diagram

Pin Details

Pin Marking	Pin Name	Description
GND	Ground	Common ground for the battery circuit.
VBAT	Battery	Main voltage input from the battery (positive terminal).
BAT-	Negative	Battery negative terminal (connected to the negative pole).
BAT+	Positive	Battery positive terminal (connected to the positive pole).

⚠️

Ensure that GND is connected to both the high and low voltage grounds to establish a common reference for signals.

⚠️

Do not short the BAT+ and BAT- pins. Short-circuiting these pins can cause overheating, damage to the protection circuit, or battery failure.

---

FS8205A MOSFET

The FS8205A is a dual N-channel MOSFET commonly used in battery protection circuits for efficient switching and low power loss.

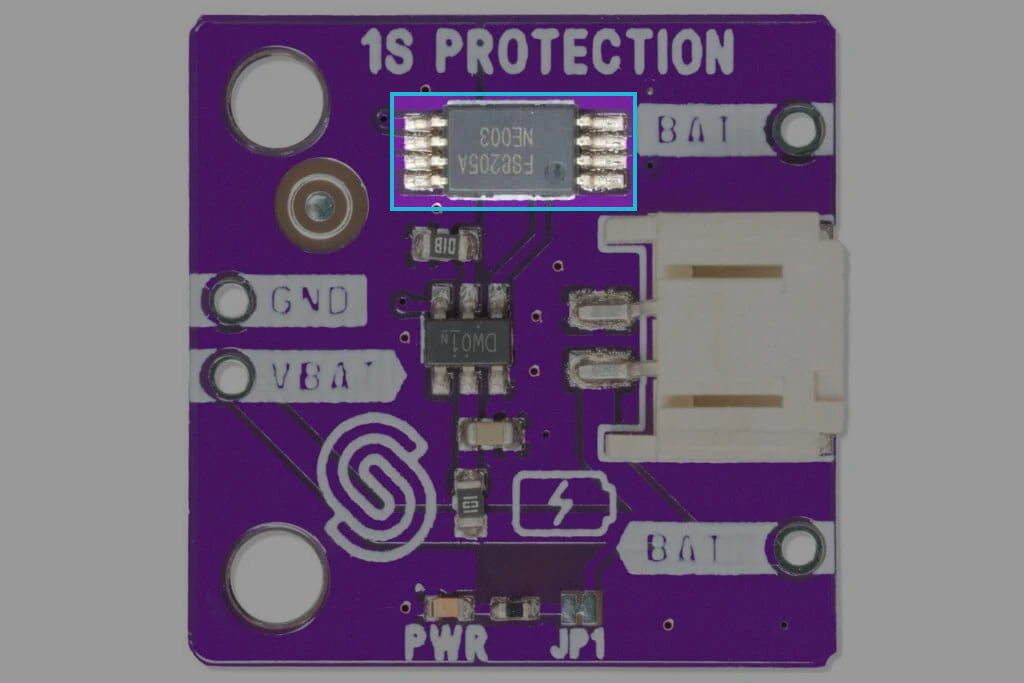

FS8205A MOSFET on the Battery Protection Board

The FS8205A has a low on-resistance of 25mΩ (max) at V_GS = 4.5V, ensuring minimal power dissipation during operation. It also has a drain-source voltage rating of 20V, making it suitable for typical lithium battery voltage levels. With a continuous drain current of 6A, it provides sufficient current handling for most battery protection applications. The MOSFET is packaged in an SOT-23-6, a compact, space-efficient surface-mount package.

In battery protection systems, the FS8205A is used in both the charge and discharge paths. It ensures safe operation by preventing overcurrent and short-circuit conditions, thereby protecting the battery and associated circuits.

The FS8205A operates within a junction temperature range of -55°C to 150°C, making it suitable for a wide range of operating conditions. Its gate threshold voltage is around 1V, which allows for efficient switching with low gate drive voltages and contributes to the system’s overall energy efficiency.

---

Dimensions

• Board Dimensions: 22 × 22 mm (0.9 × 0.9 inch)
• Header Pin Holes: 1.5 mm
• Screw Holes: Designed for M3 screws (3.2 mm diameter)
• Soldered boards are LEGO compatible! 🧱

---

Jumper Details

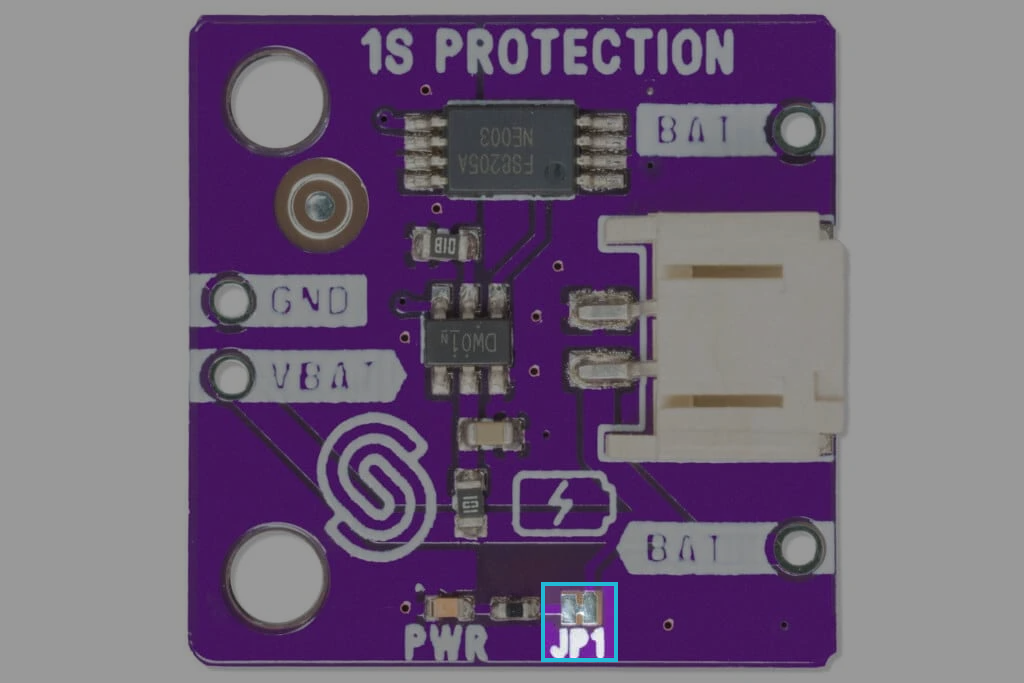

This board contains hardware jumpers; see below for their locations and functions:

JP1

Jumper	Default State	Function
JP1	NC (Normally closed)	Connects PWR LED.

---

Hardware repository

Schematics, KiCad files, Gerber files, and more can be found in the GitHub repository:

1S Li-Ion Battery Protection Hardware Design

GitHub hardware repository for this product

The hardware repository contains everything you need to understand, modify, or manufacture the board. The various output folders are versioned. You can check which board version you have specifically by finding the version mark on the PCB.

Below is an overview of the available files.

CAD files

We use KiCad, an open-source PCB design tool. You can open and edit the .kicad_pro project file, which includes both the schematic and PCB layout.

The PANEL files are used internally for production.

Schematic

The OUTPUTS folder contains the schematic in .pdf format, exported from KiCad.

BOM (Bill of Materials)

The bill of materials (BOM) is provided in two formats:

• A standard .csv table, listing all components, part numbers, and values.
• An interactive BOM (.html) that visually highlights each component on the PCB, making it easy to locate and reference parts.

3D files

A 3D model of the PCB is available in .step format, allowing you to inspect the board design in CAD software.

Gerber files

Gerber files are essential for PCB manufacturing, as they contain precise instructions for each layer of the board. The repository includes standard Gerber outputs in a .zip file, such as:

• Copper layers (.Cu.gbr) – Defines the traces and pads on the board.
• Solder mask layers (.Mask.gbr) – Specifies the protective solder mask.
• Silkscreen layers (.Silkscreen.gbr) – Contains text and component markings.
• Paste layers (.Paste.gbr) – Used for stencil fabrication in SMD assembly.
• Drill files (.drl) – Provides drilling coordinates for vias and holes.
• Board outline (.Edge_Cuts.gbr) – Defines the shape of the PCB.
• Gerber job file (.gbrjob) – Describes the set of Gerber files used for production.

These files are ready for fabrication and can be used in PCB manufacturing.

Compliance

The Compliance section includes important regulatory and safety documentation for this product. These files ensure compliance with relevant industry standards and legal requirements.

• CE – Certification document confirming compliance with EU safety, health, and environmental requirements.
• UKCA – UKCA (UK Conformity Assessed) certification for the UK market.
• Safety Instructions – Safety guidelines and precautions are provided in English and German.
• Info.txt – Contains product details such as SKU, country of origin, HS tariff code, and barcode.
