1S Li-Ion Battery Protection​

A battery protector is a small but essential device designed to safeguard your lithium battery. This compact circuit board ensures the longevity and safety of your battery by preventing overcharge, overdischarge, overcurrent, and short circuits. It features a JST connector for an easy connection to the battery, with the option for direct soldering. This protector helps maintain optimal battery performance and protects it from potential damage.

logic-level-converter

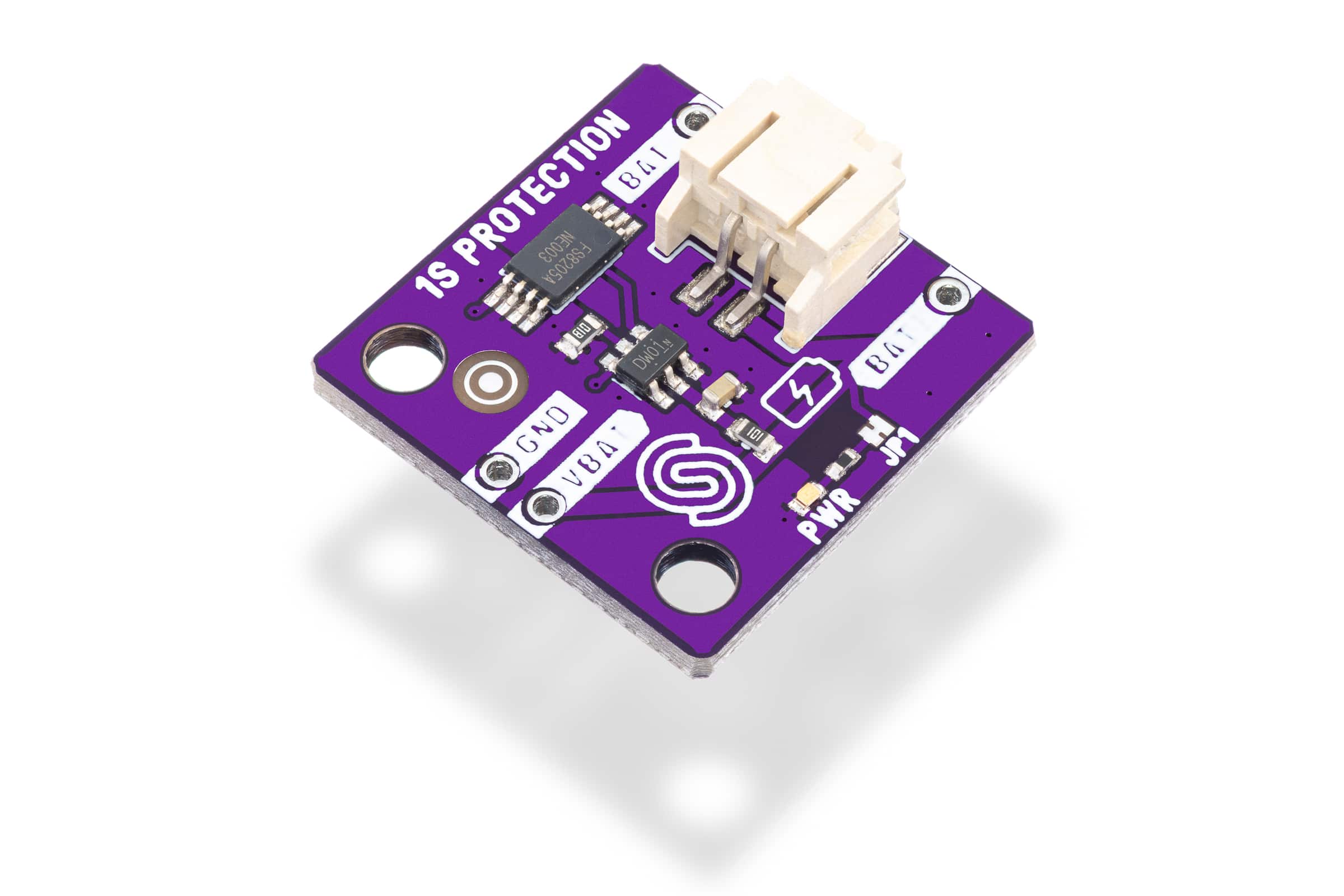

1S Li-Ion Battery Protection board

For Which Products Is This Documentation Intended?​

1S Li-Ion Battery Protection

1S Li-Ion Battery Protection

333049

Key Features​

  • Protection from: Undervoltage, overvoltage, overcurrent, and short-circuit current
  • Protection IC: DW01
  • Battery Configuration: 1S1P (1-series, 1-parallel)
  • Battery Type: Li-ion, Li-poly
  • Dimensions: 22 x 22 mm (0.9 x 0.9 inches)
