Bme680 - Overview

Environmental & air quality sensor BME680​

The BME680 Environmental & air quality sensor is an atmospheric sensor that measures four values: temperature, pressure, humidity, and air quality as an IAQ index. With that data, you can calculate elevation. It is really simple to use considering that it uses the I2C communication protocol with a hardware-defined address of 0x76, and its small dimensions allow it to fit anywhere. With this sensor, you can find out everything you need to know about atmospheric conditions and air quality (ideal for weather station projects!).

Environmental & air quality sensor BME680
Environmental & air quality sensor BME680

Which product is this documentation for?​

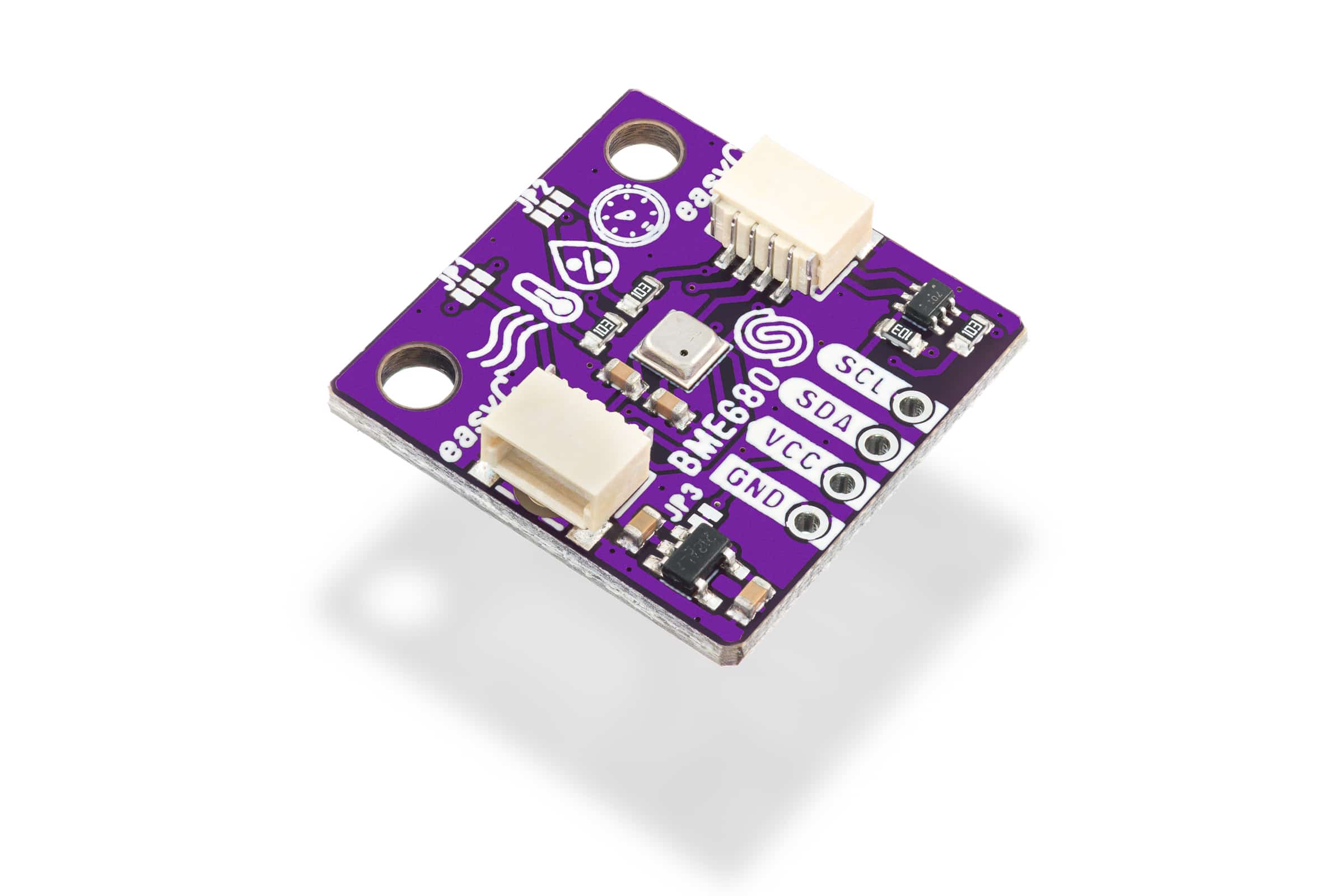

Environmental & air quality sensor BME680 breakout

Environmental & air quality sensor BME680 breakout

333035

Key Features​

  • Measurement range:
    • Temperature: -40°C to 85°C, ±1°C accuracy
    • Humidity range: 0% to 100%, ±3% accuracy
    • Pressure range: 30kPa to 110kPa, ±12Pa accuracy
  • Power consumption:
    • While measuring: max. 849µA
    • Idle mode: 0.15 µA
  • Logic voltage level: 3.3V
  • Operating voltage: 3.3V (onboard regulator for 5V compatibility)
  • Communication: I2C (fixed address: 0x76)
  • Connector: 2 × Qwiic (formerly easyC) ports (plug-and-play, no soldering needed)
  • Mounting: Two mounting holes for secure attachment
  • Dimensions: 22 × 22 mm (0.9 × 0.9 inch)

You may also need​

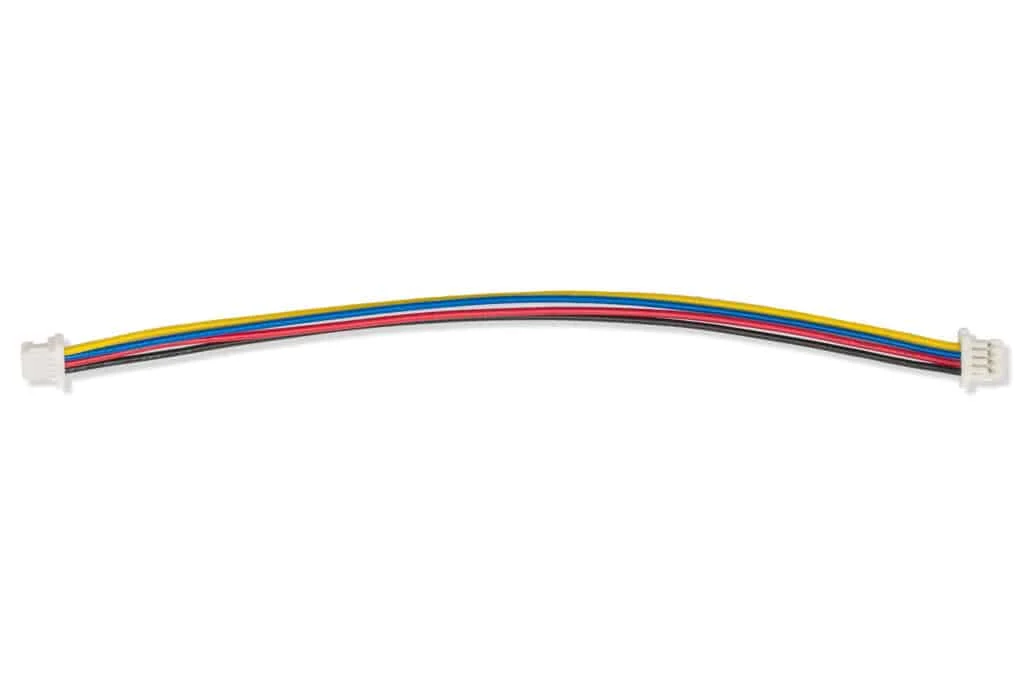

Qwiic cable
