Overview
Pressure & altitude sensor BMP280
The absolute barometric pressure sensor BMP280 is an atmospheric sensor that accurately measures pressure, altitude and temperature. The digital sensor on the board is based on Bosch's piezo-resistive pressure sensor technology featuring high EMC robustness, high accuracy and linearity and long term stability. Since atmospheric pressure varies with altitude, the sensor can also measure alititude. It is simple to use, as it communicates via I2C communication with a hardware defined address 0x76 or 0x77 and is designed for seamless Qwiic (formerly easyC) connectivity. Its very low current consumption makes this sensor suitable for many modern devices.
Which product is this documentation for

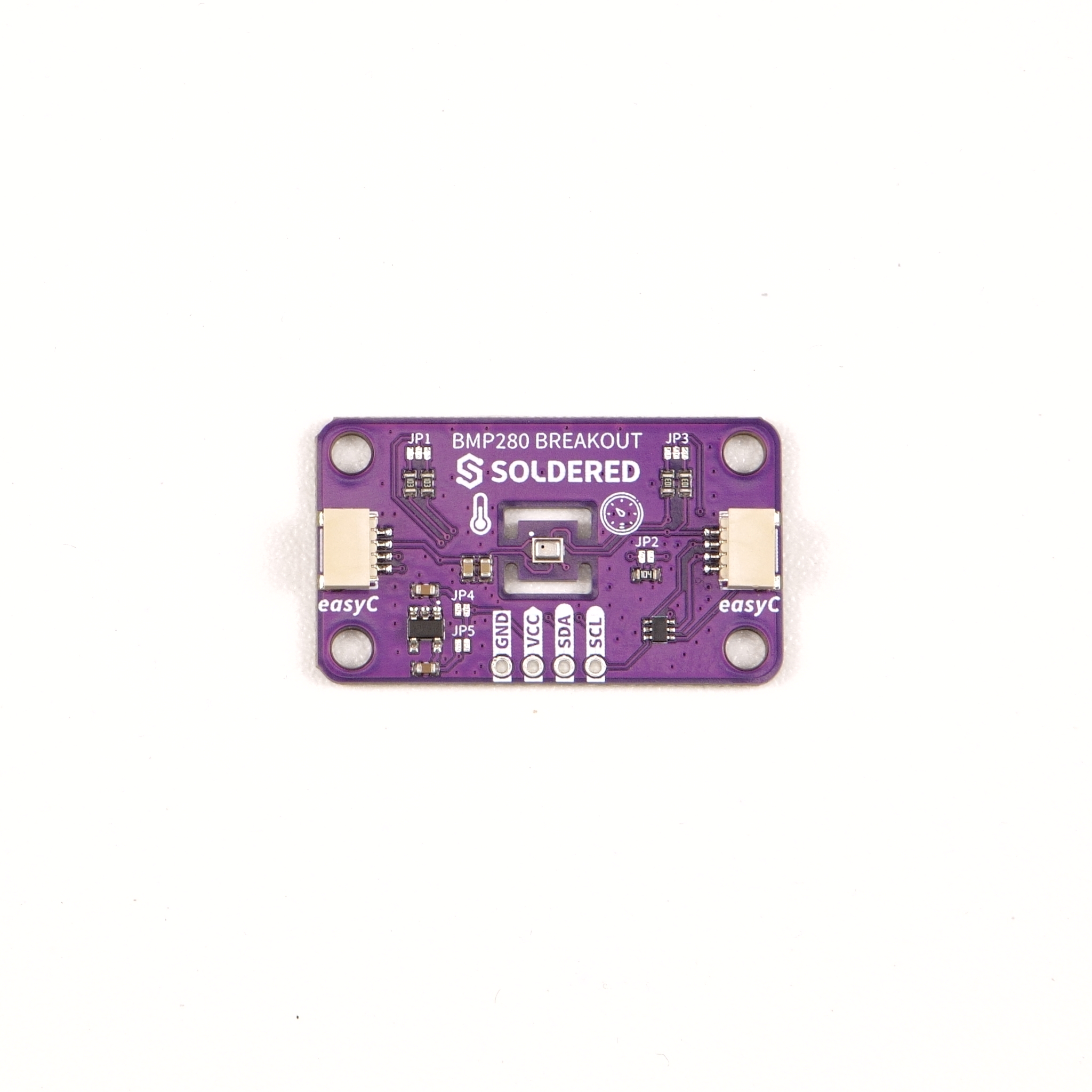

BMP280 Pressure & Altitude sensor
333315
Key Features
- Measurement modes: Pressure and temperature, forced or periodic
- Measurement range:
- Temperature: -40°C to 85°C ± 0.01°C resolution
- Pressure range: 300hPa to 1100hPa, ±0.16Pa resolution
- Current consumption: 2.7 µA at 1Hz sampling rate
- Minimum Vdd: 1.71V
- Minimum Vddio: 1.20V
- Measurement rate: up to 157Hz
- Communication: I2C (default address: 0x76, alternative address: 0x77 by shorting JP2)
- Connector: 2 x Qwiic (formerly easyC) ports (plug-and-play, no soldering needed)
- Mounting: Four mounting holed for secure attachment
- Dimensions: 22 x 38 mm (0.87 x 1.5 inch)
