Breadboard Power – How it works

On this page, we will examine how the power supply provides different voltages depending on the user's needs.

---

How it supplies power

The board supports a 12V DC input as well as a 5V USB-C input.

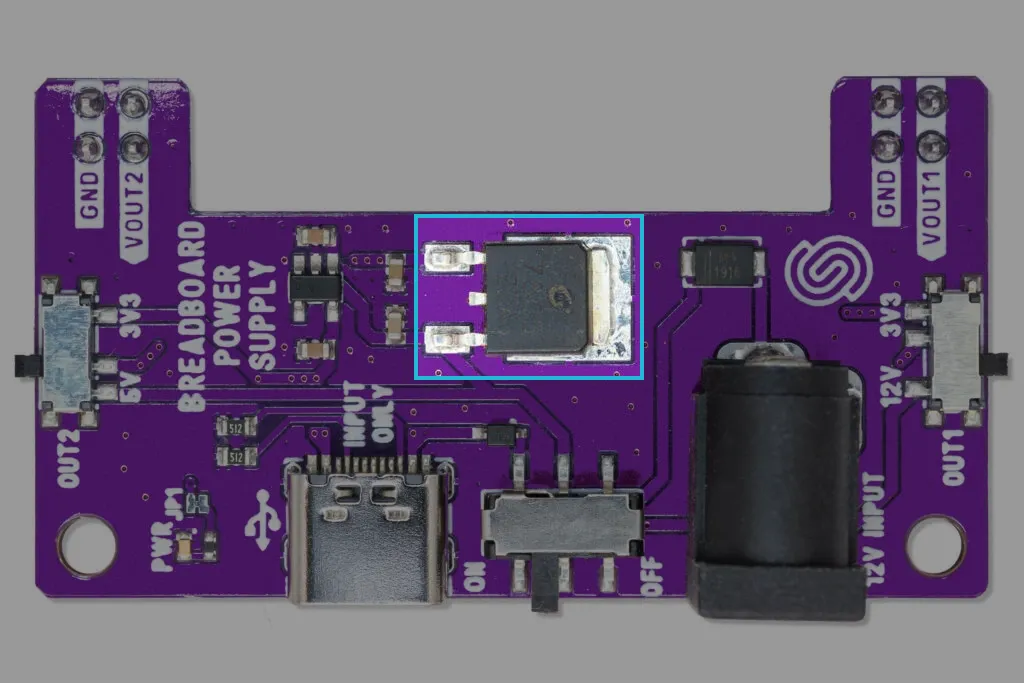

You can also use the 12V input to obtain a 5V output thanks to the onboard 7805 voltage regulator, which can regulate input voltages from 7V to 35V into a 5V output:

Onboard 7805 voltage regulator

The S1 switch can turn the power supply on/off, while With the S2 and S3 switches, you can pick your desired voltage for all your maker needs! Find more information about the switches here
