Breadboard Power - Overview

Breadboard power supply​

The Breadboard power supply is a simple and stable power source for your breadboard projects. Supply it with power via the DC jack or with a USB-C cable, and the board provides 3.3V, 5V, or 12V directly to the power supply lines on the breadboard. Output voltages are adjustable separately using the onboard switches. It also includes a power LED, a power switch, and an automatic voltage selection circuit in case both power inputs are connected.

Breadboard power supply board
Breadboard power supply board

Which product is this documentation for?​

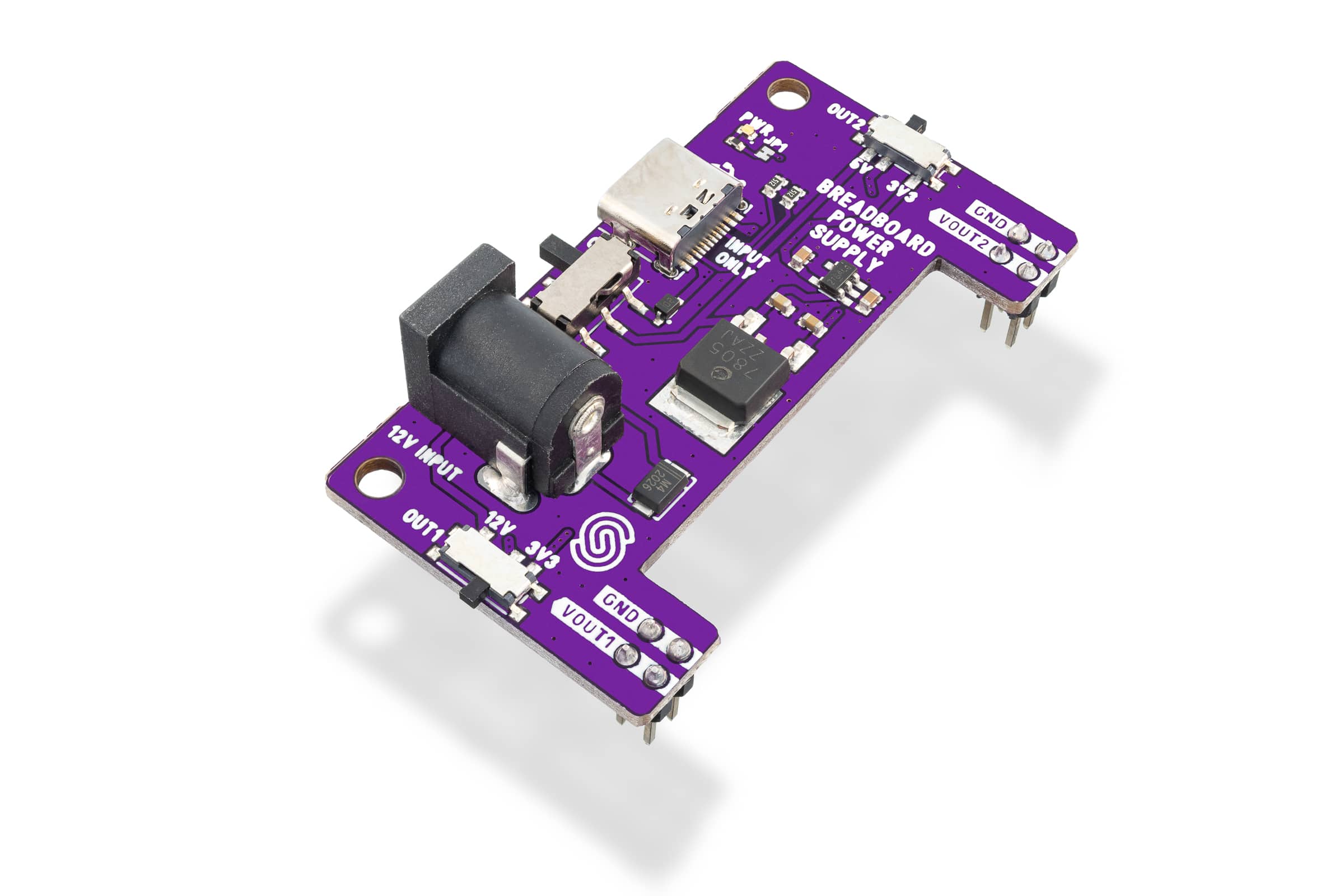

Breadboard power supply board

Breadboard power supply board

333084

Key Features​

  • Input: USB-C or DC jack
  • Voltage on DC jack: 12V DC
  • Voltage on USB-C: 5V
  • Output current: 3V3 @ 500mA, 5V @ 500mA
  • Dimensions: 54 x 30mm (2.1 x 1.2 inches)

You may also need​

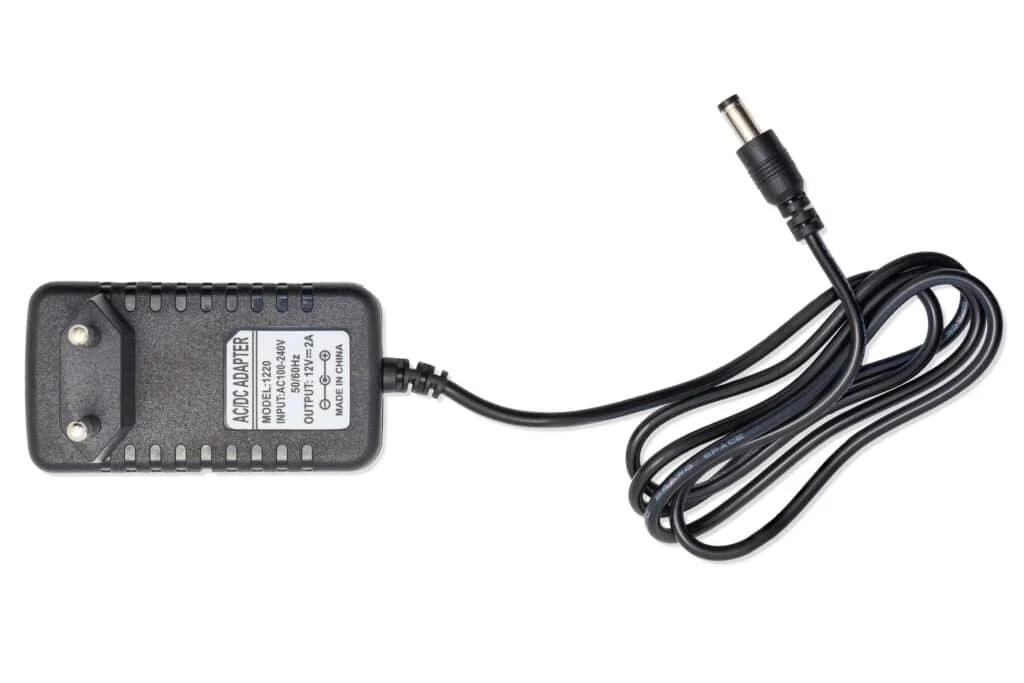

Power supply 12V 2A 24W
