Capacitive Soil Sensor - Overview

Capacitive Soil Sensor​

The Capacitive Soil Sensor monitors soil moisture through the capacitive interaction between the soil and a conductive, coated electrode. Unlike traditional resistive sensors, this sensor avoids corrosion and offers longer durability thanks to its protective PCB coating. It’s ideal for long-term soil monitoring in plant care and gardening applications.

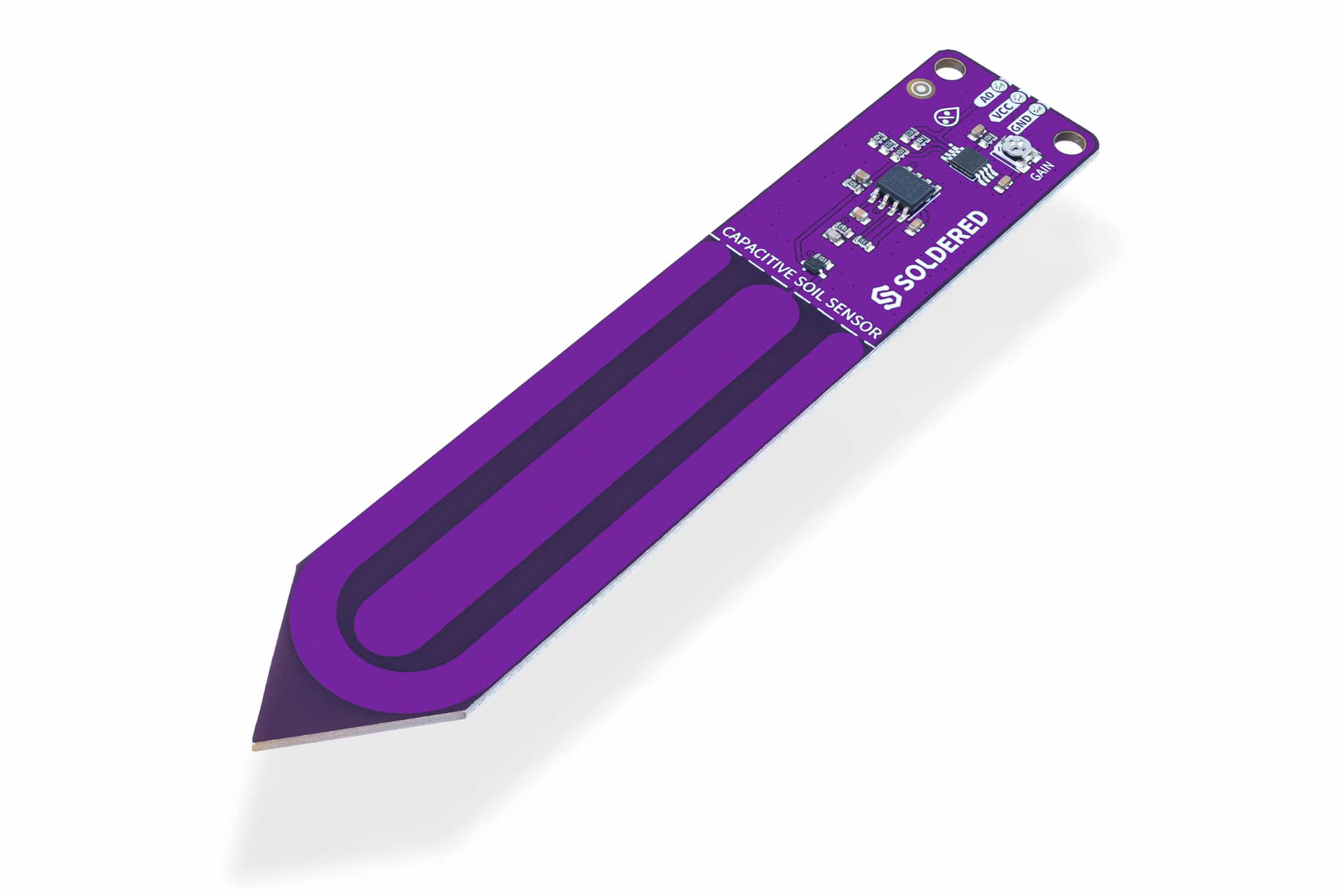

Capacitive soil sensor
Capacitive soil sensor

Which product is this documentation for?​

Capacitive Soil Sensor

Capacitive Soil Sensor

333098

Key Features​

  • Operating Voltage: 3.3V – 5.5V
  • Output Type: Analog voltage signal (higher moisture = higher voltage)
  • Technology: Capacitive sensing
  • Durability: Corrosion-resistant design with coated PCB
  • Compatibility: Arduino, ESP32, Raspberry Pi, and other microcontrollers
  • Dimensions: 109 × 22 mm (4.3 × 0.9 inch)
  • Mounting: Two mounting holes for stable positioning

Benefits of Capacitive Sensing​

Unlike resistive soil sensors, this capacitive sensor does not expose conductive metal to the soil, which significantly increases lifespan and reliability, especially in constantly wet or acidic environments.

ℹ️
Capacitive sensing avoids electrolytic corrosion, making this sensor more robust and suitable for long-term use.
