Led Matrix - Overview

8x8 LED matrix​

The 8x8 LED matrix is a system of 64 interconnected LEDs that, with help of the MAX7219 LED driver, light up as programmed, and all of this is located on one board and is truly easy to use. You can use them to show letters or symbols, display text ect. It comes in green, red, purple, white , orange or blue version.

ℹ️
It is possible to connect several modules with just a few wires and control several matrices at once!
LED matrix
LED matrix

Which products is this documentation for?​

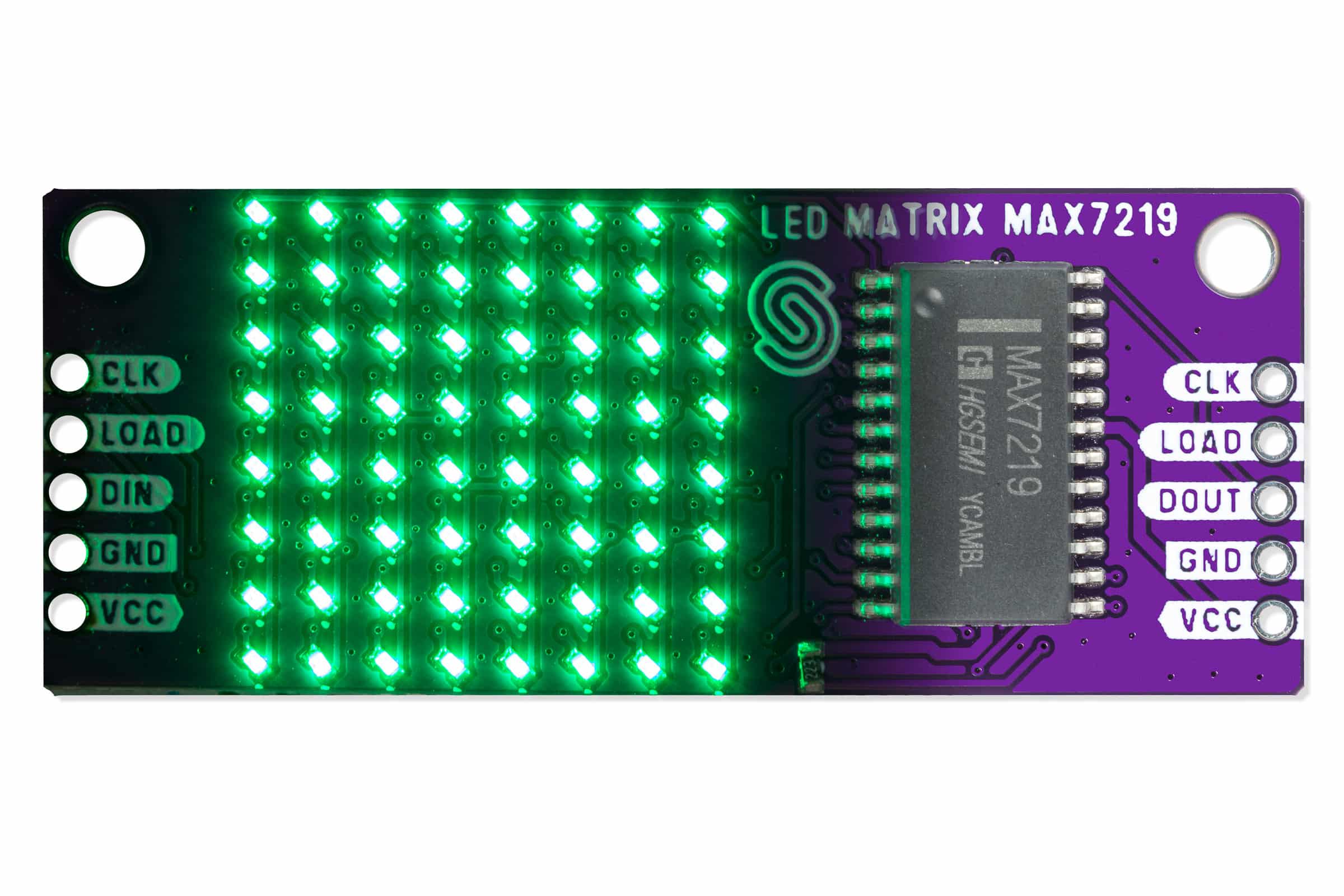

8x8 LED matrix MAX7219 - Green

8x8 LED matrix MAX7219 - Green

333148
8x8 LED matrix MAX7219 - Red

8x8 LED matrix MAX7219 - Red

333149

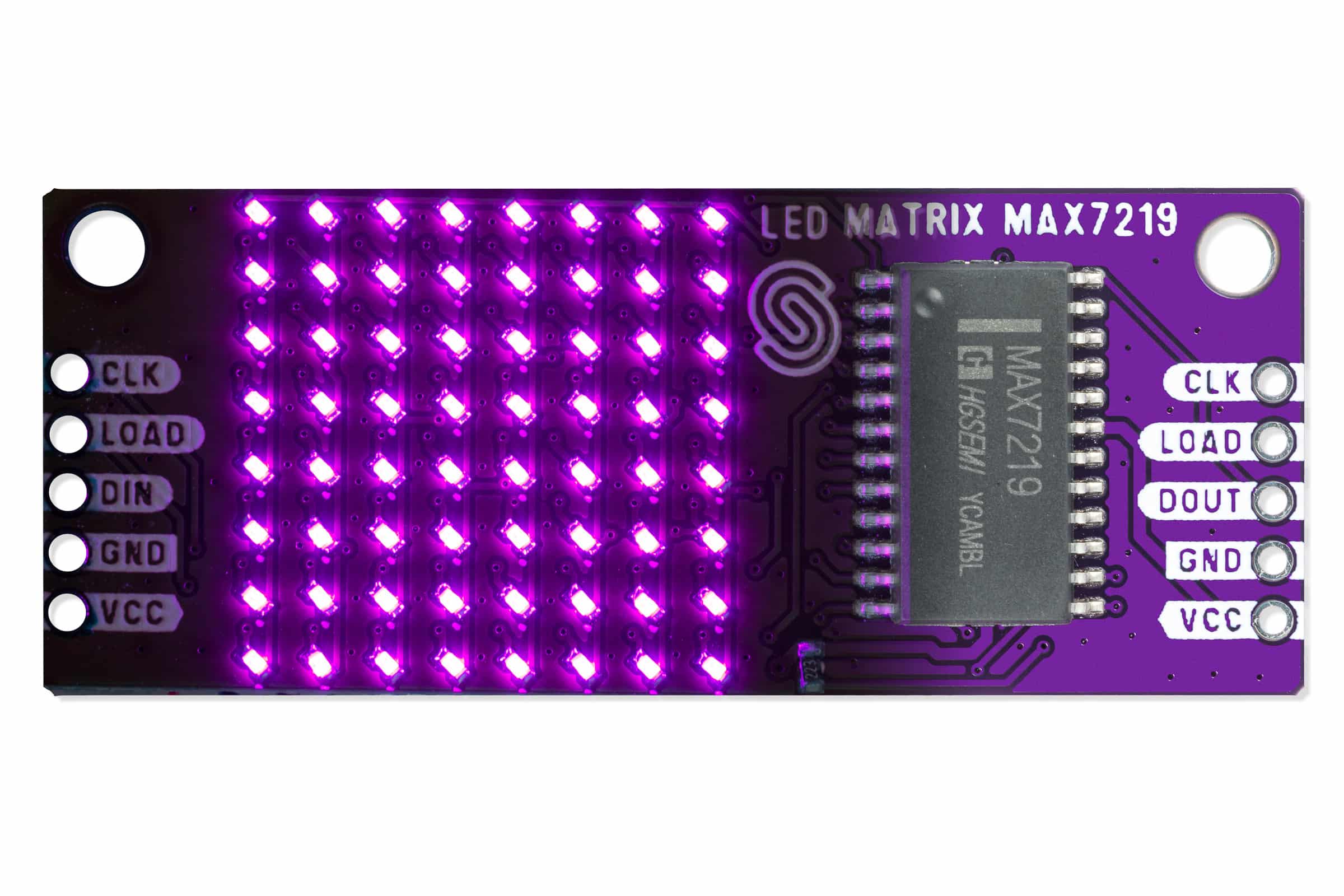

8x8 LED matrix MAX7219 - Purple

8x8 LED matrix MAX7219 - Purple

333150

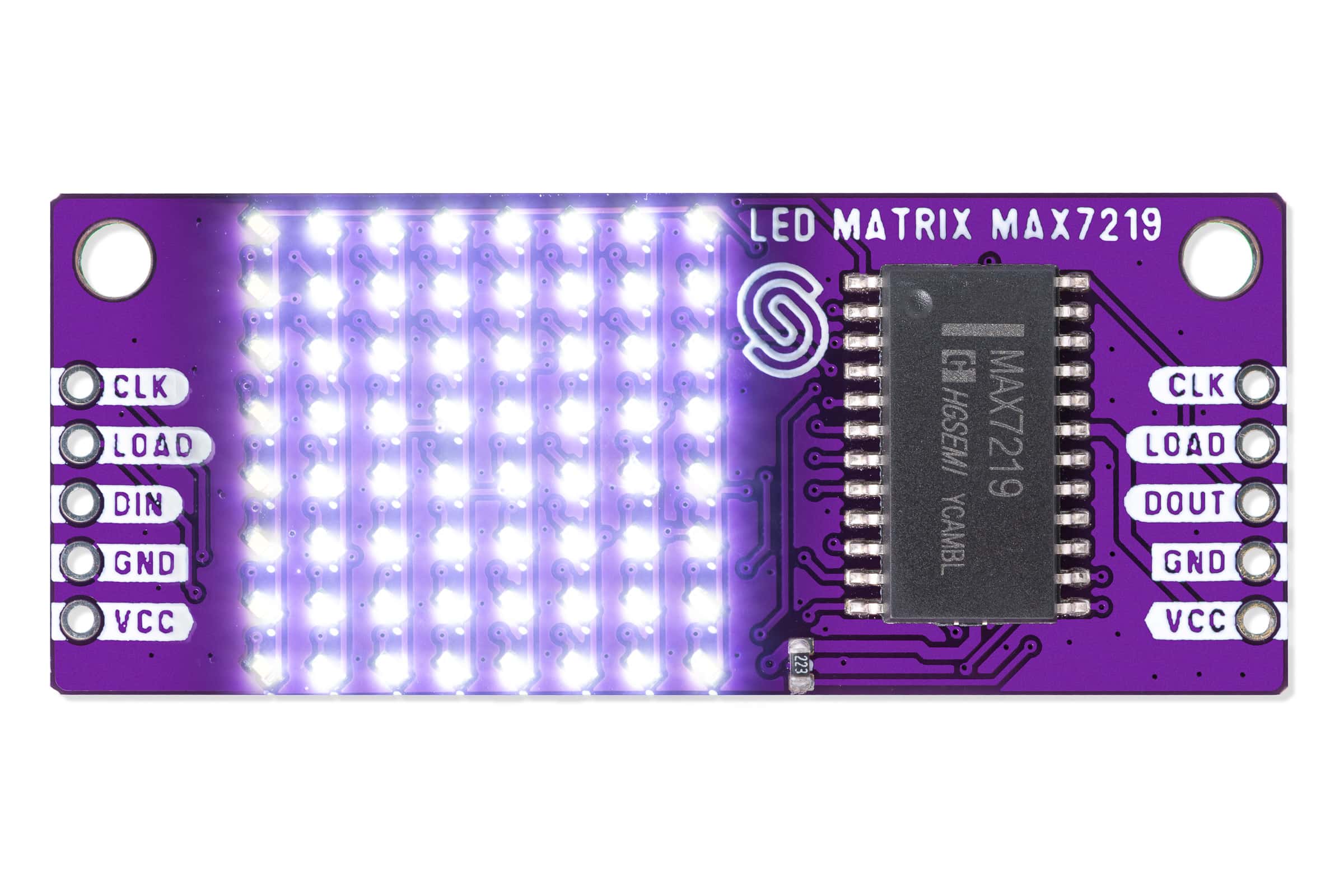

8x8 LED matrix MAX7219 - White

8x8 LED matrix MAX7219 - White

333151

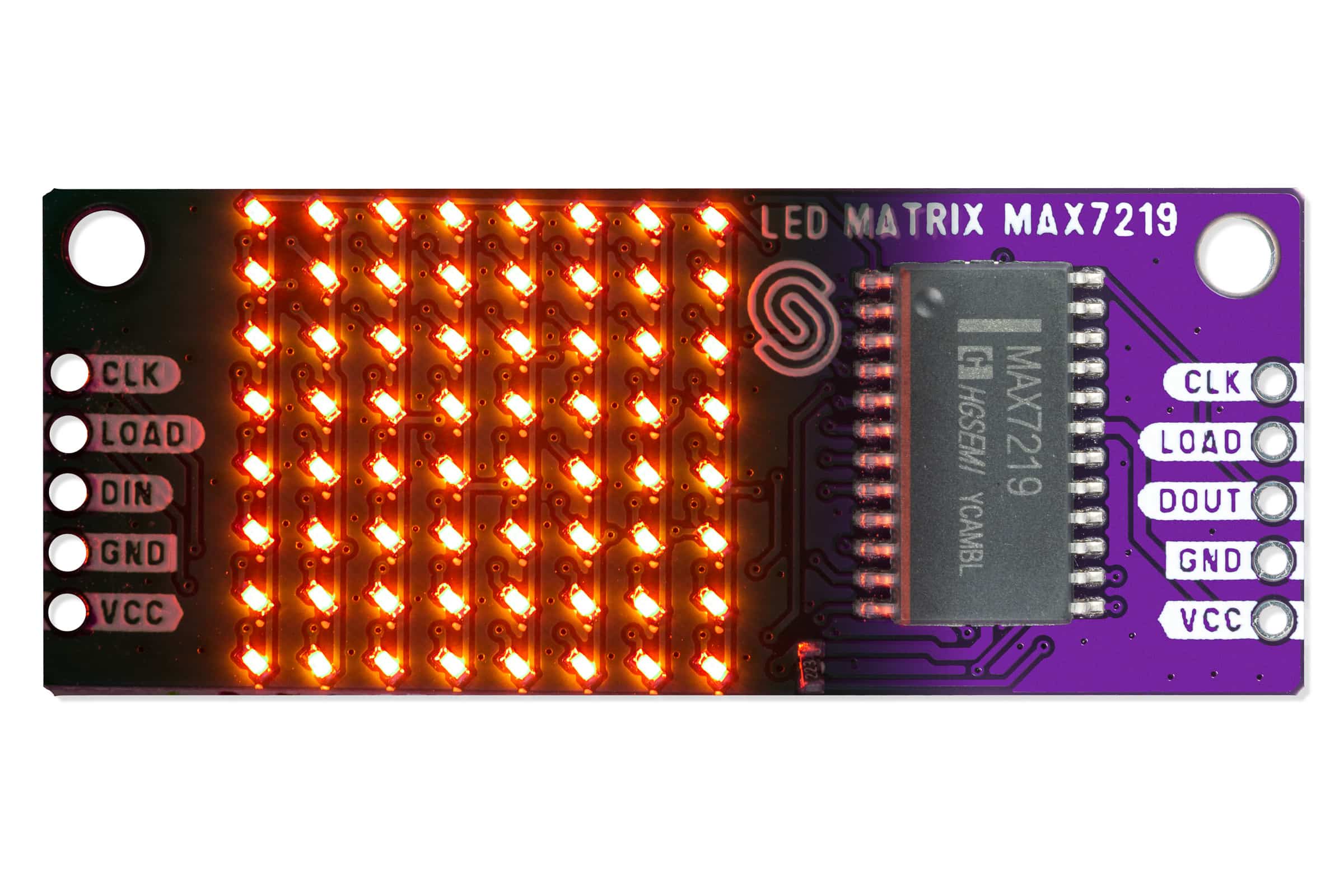

8x8 LED matrix MAX7219 - Orange

8x8 LED matrix MAX7219 - Orange

333152

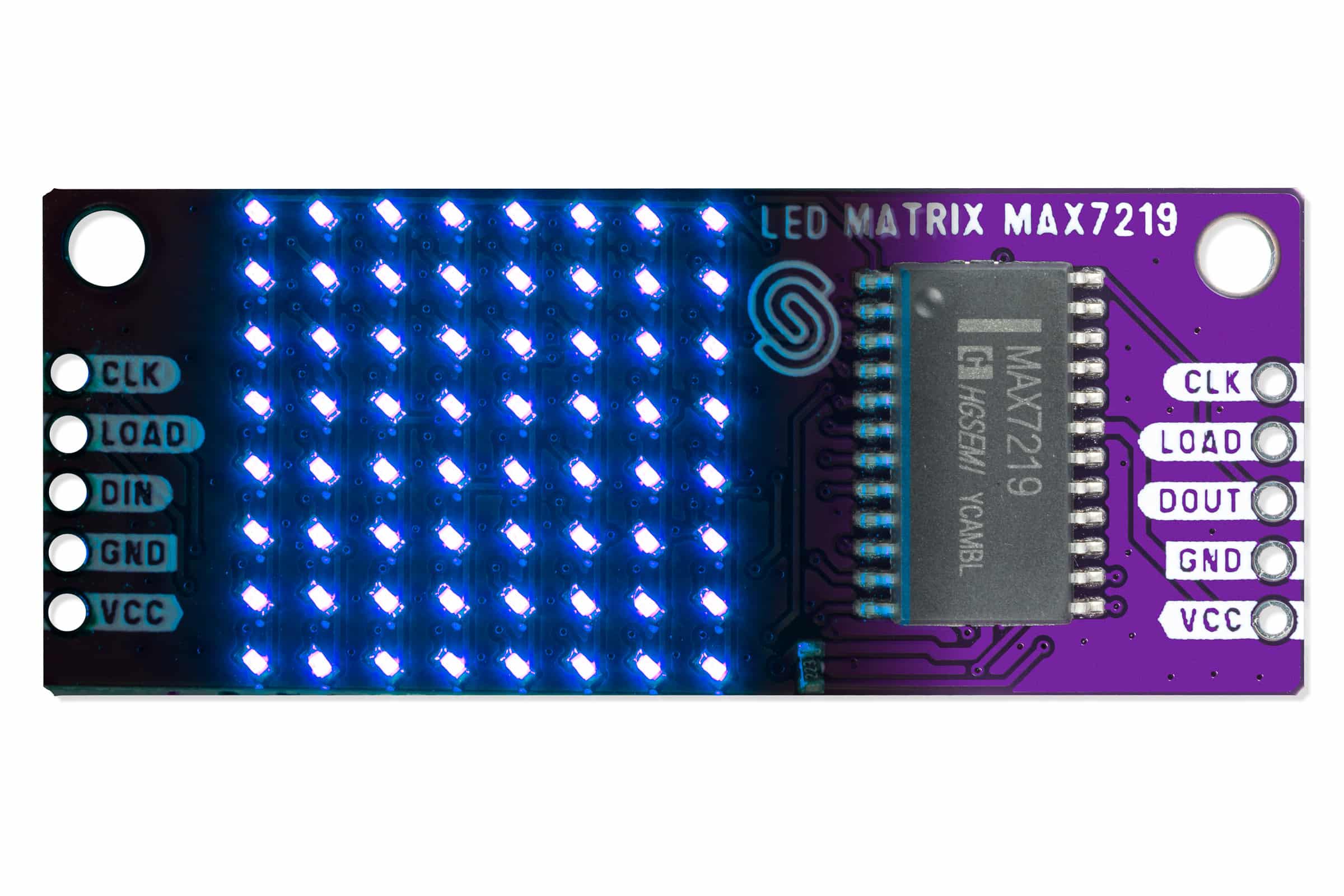

8x8 LED matrix MAX7219 - Blue

8x8 LED matrix MAX7219 - Blue

333153

Key features​

  • Voltage: 4 - 5.5V
  • Driver: MAX7219
  • Available in colors: purple, red, white, blue, orange, green
  • Dimensions: 54 x 22 mm (2.1 x 0.9 inch)
