Logic Level Converter - Overview

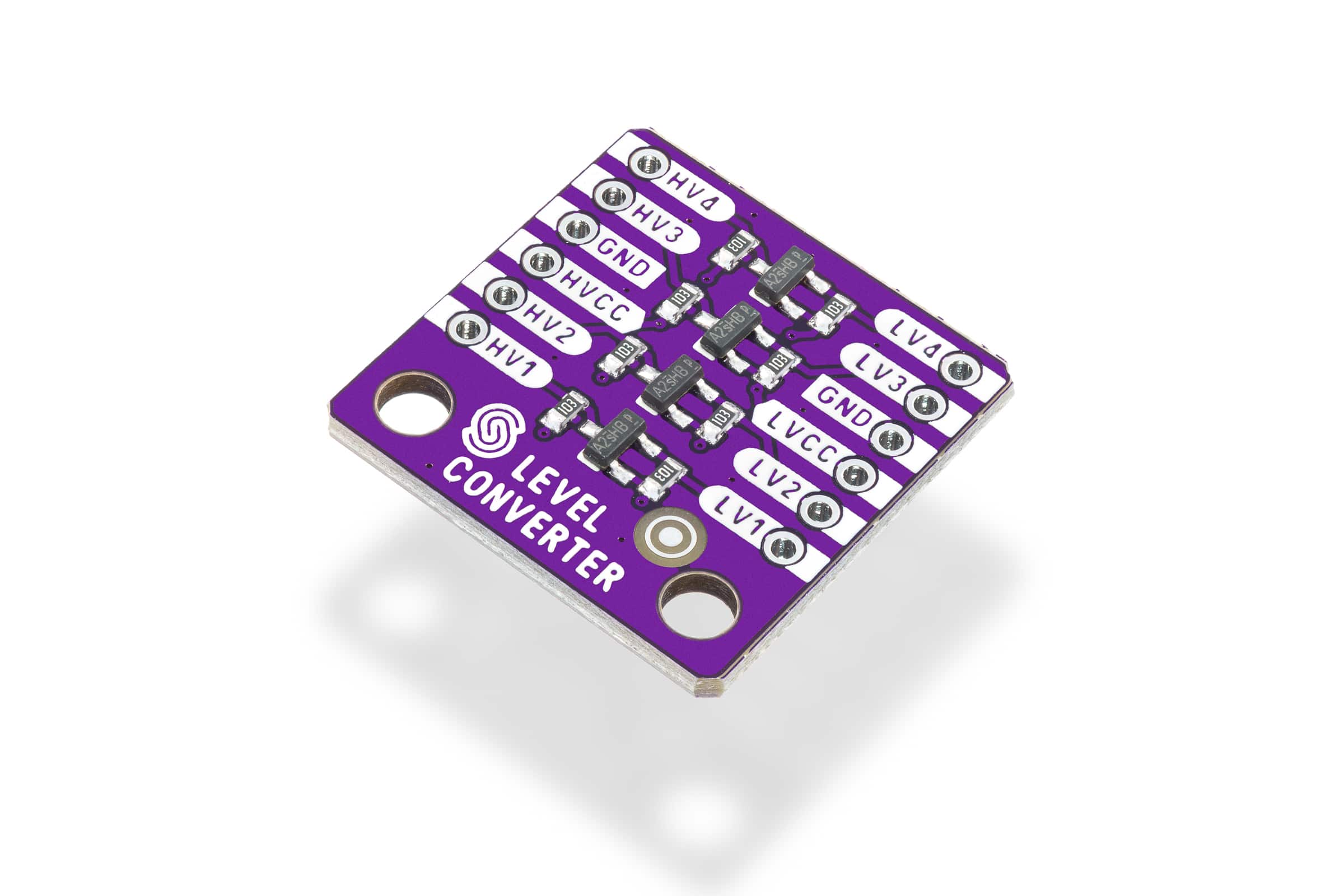

Logic Level Converter Board​

The Logic Level Converter Board provides bidirectional voltage level translation between two signals, enabling seamless communication between devices operating at different logic voltages. Whether you're connecting a 5V microcontroller to a 3.3V sensor or working with other voltage combinations, this module ensures compatibility while protecting lower-voltage components from damage. Essential for mixed-voltage projects, it provides a simple and reliable way to bridge the gap between different logic levels.

logic-level-converter
Logic Level Converter Board

Which products is this documentation for?​

Logic Level Converter Board

Logic Level Converter Board

333063

Key Features​

  • Bidirectional Voltage Level Translation: Safely shifts voltage levels between low voltage and high voltage systems (usually 3.3V and 5V)
  • Number of Channels: 4
  • Maximum Voltage: 30V
  • Mounting: Two mounting holes for secure attachment
  • Dimensions: 22 x 22 mm (0.9 x 0.9 inches)
