Ltr 507 - Overview

LTR-507​

The LTR-507 Breakout board offers precise ambient light (ALS) and proximity (PS) measurements, transmitting data via I2C communication for easy integration with microcontrollers such as Dasduino. The device supports an interrupt feature that eliminates the need to poll the sensor for a reading, thereby improving system efficiency.

ltr-507 sensor

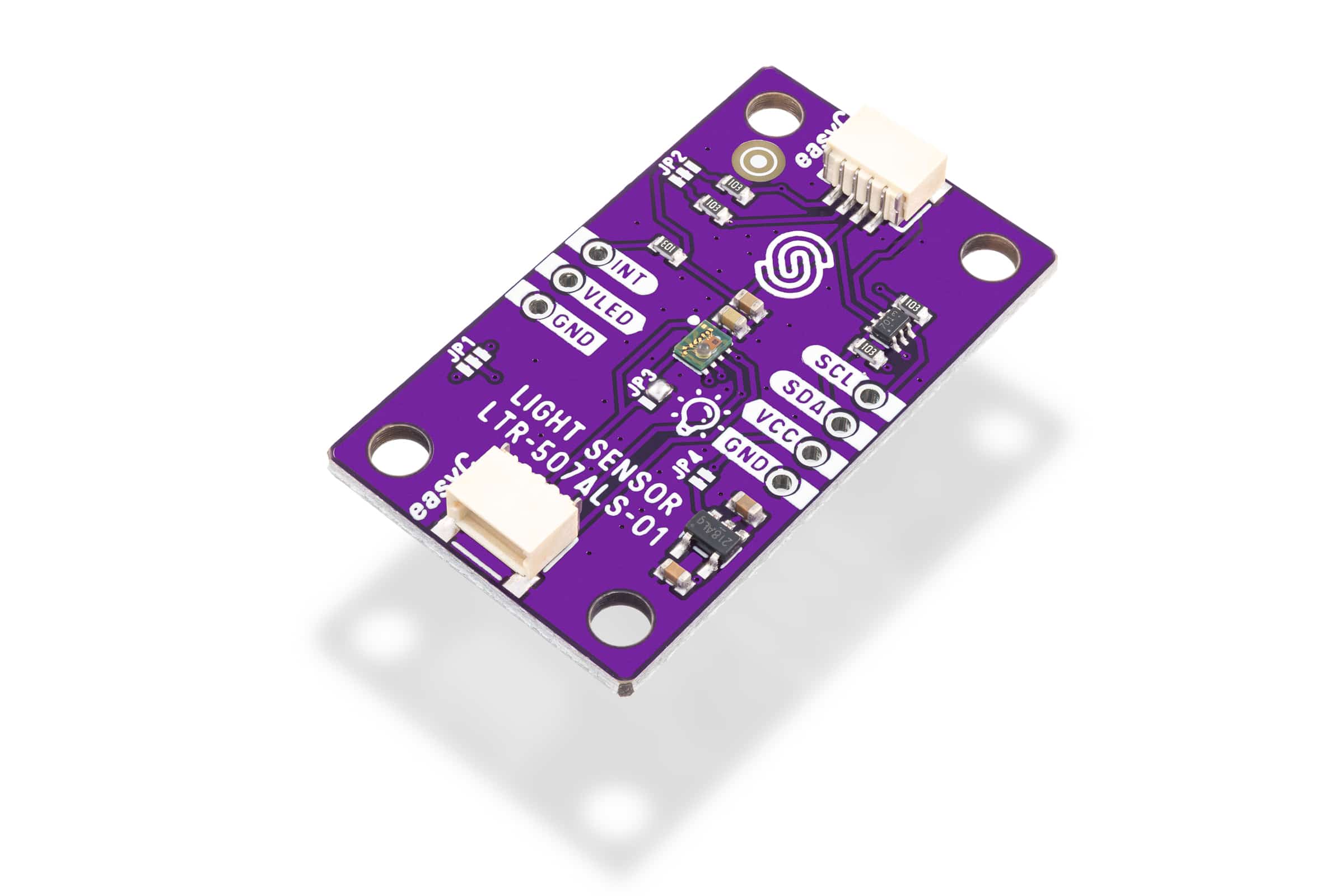

LTR-507 Light and Proximity Sensor

Which product is this documentation for?​

LTR-507 Light and Proximity Sensor

LTR-507 Light and Proximity Sensor

333063

Key features​

  • Proximity Detection: Detects objects within a range of up to 20cm
  • Ambient Light Measurement: Measures light levels from 0 to 65535 lux
  • Communication: I2C (400kHz)
  • I2C Address: 0x3A
  • Logic / Operating voltage level: 3.3V (onboard regulator for 5V compatibility)
  • Compatibility: Arduino, and other I2C-compatible microcontrollers
  • Operating Temperature Range: -40°C to +85°C
  • Connector: 2 × Qwiic (formerly easyC) ports (plug-and-play, no soldering needed)
  • Mounting: Four mounting holes for secure attachment
  • Dimensions: 38 x 22 mm (1.5 x 0.9 inch)

You may also need​

Qwiic cable

Qwiic cable

Qwiic (formerly easyC) compatible cables with connectors on both ends, available in various lengths.

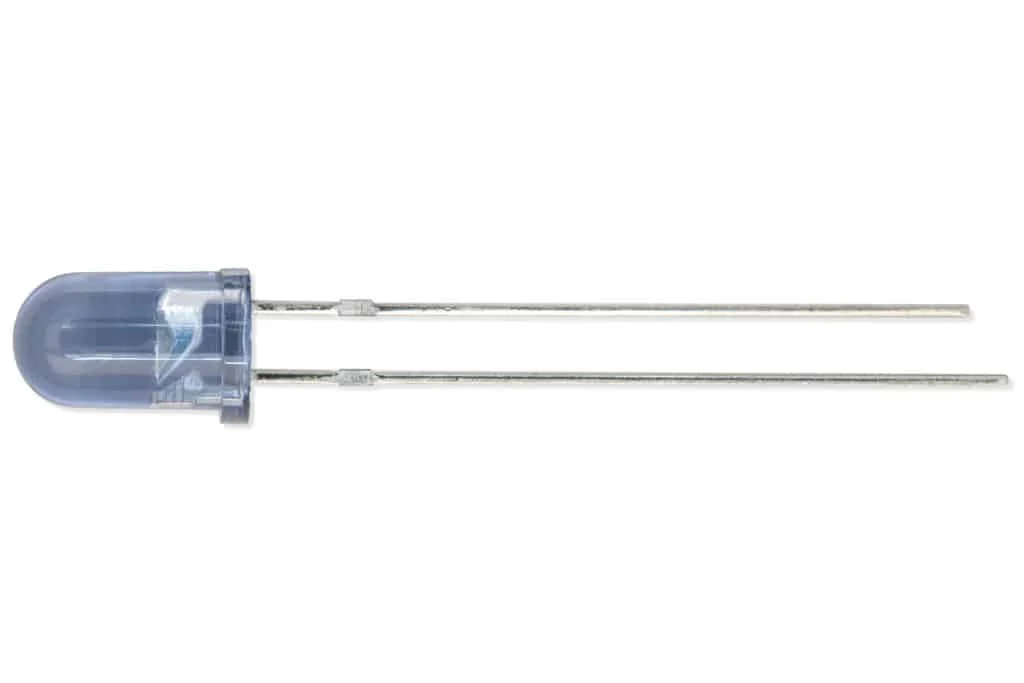

5mm IR LED
