MCP47A1 - Overview

MCP47A1 DAC

The MCP47A1 digital-to-analog converter is a single-channel, 6-bit digital-to-analog converter with an I2C-compatible serial interface. It has a hardware-defined address of 0x2E and is designed for seamless Qwiic (formerly easyC) connectivity.

MCP47A1 DAC

---

Which products does this documentation cover?

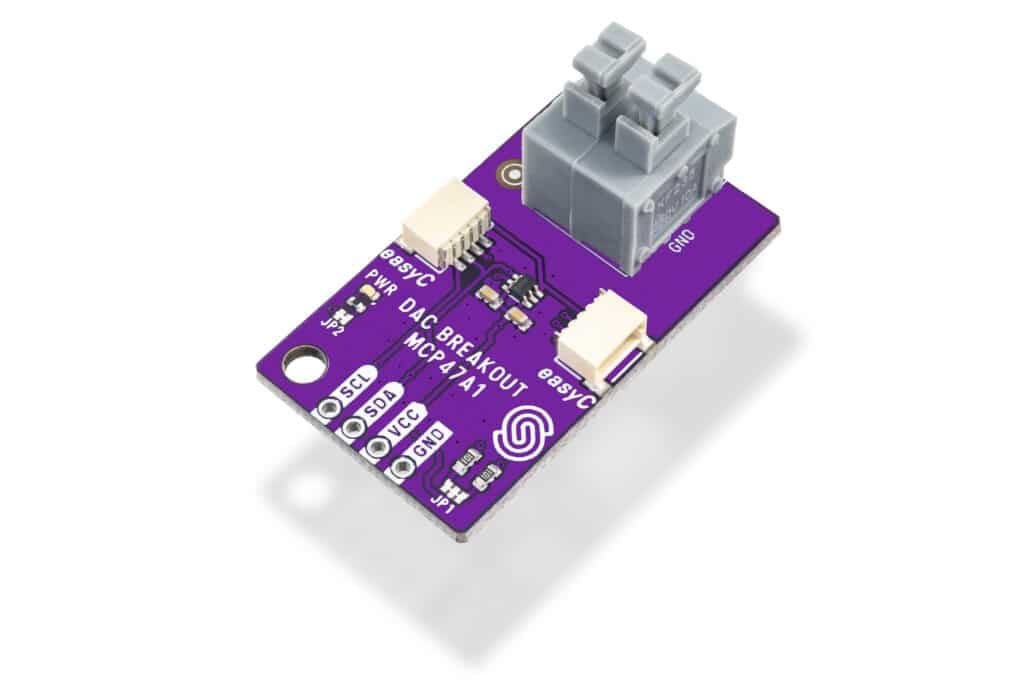

DAC 6-bit 1-channel MCP47A1 breakout

333052

---

Key Features

• Resolution: 6-bit
• Voltage: 1.8V - 5.5V
• Connectors: Qwiic x2
• Mounting holes: 2
• Dimensions: 38 x 22 mm (1.5 x 0.9 inches)

---
