Hardware design
Inkplate 10 is an open-source product, and we are happy to share an overview of its hardware design. On the following pages, you'll find schematics, KiCad design files, and other technical details related to the hardware. Whether you're looking to modify, troubleshoot, or simply understand the inner workings of Inkplate, this section has everything you need.
Basic overview
The Inkplate 10 features a 9.7″ e-paper display, USB-C connectivity for both power and programming, abundant GPIO pins with I2C, SPI, and Qwiic header, on-board ESP32–driven Wi‑Fi/Bluetooth, CH340C USB‑to‑UART bridging, microSD expansion,chac and TI-based power management (battery charging and temperature sensing) — all in a form factor primed for custom enclosures.
Components

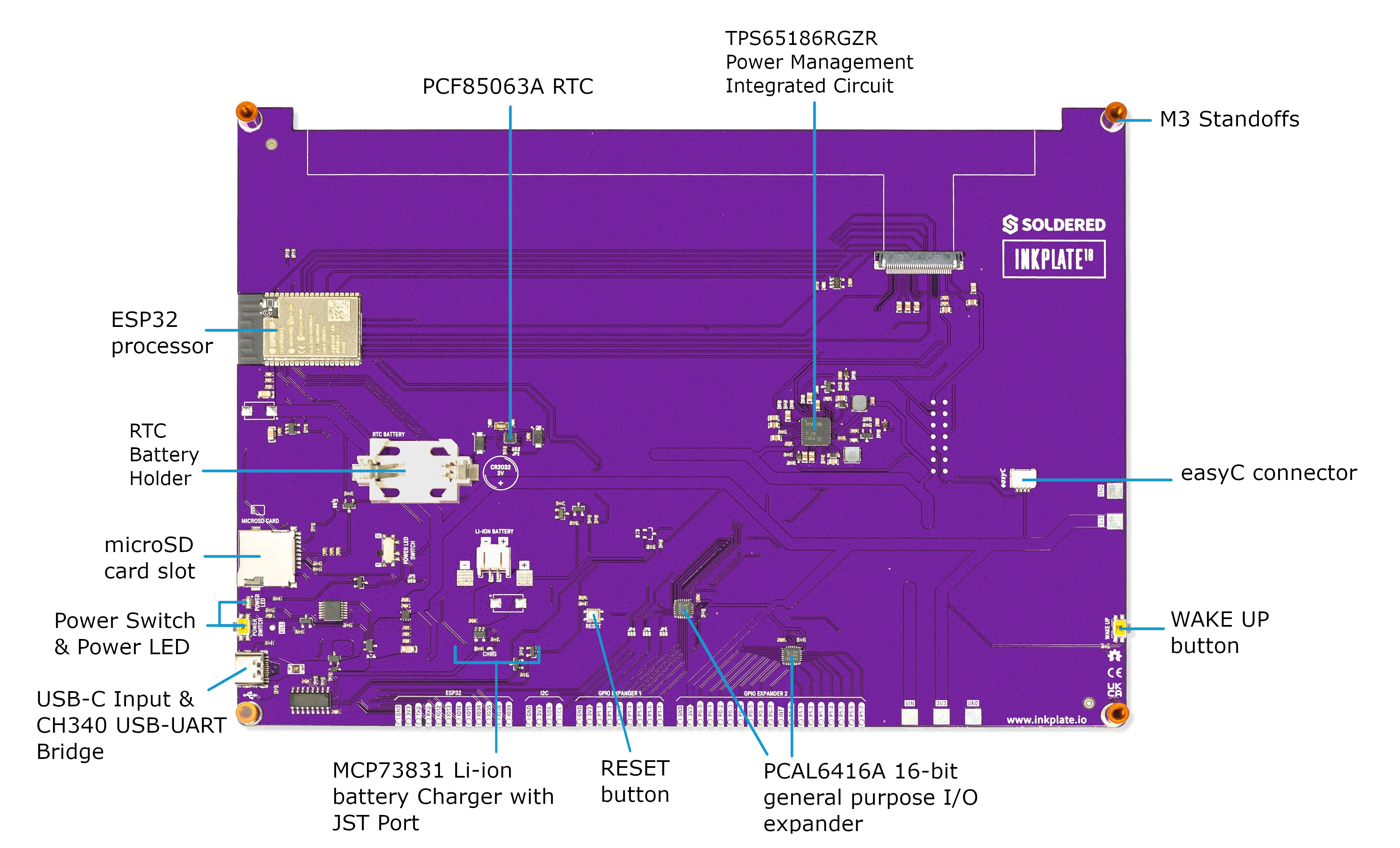

Here is an overview of on‑board components with their locations:
E-paper panel

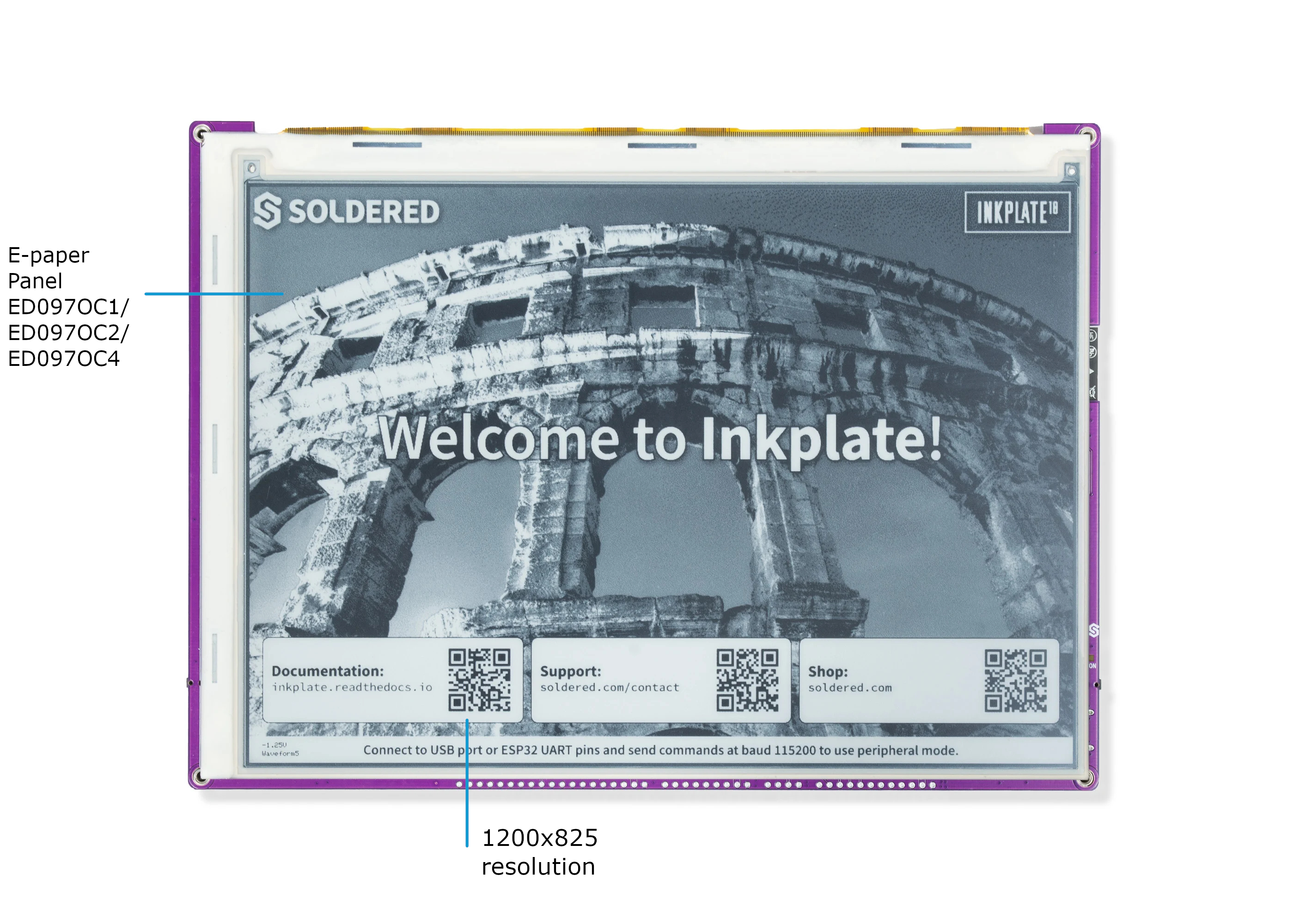

The ED097OC1 is a 9.7-inch e-paper display panel from E Ink Holdings Inc. This model is without a frontlight or touchscreen, making it ideal for low-power, high-contrast applications such as e-book readers.
It features an 825 × 1200 resolution (150 PPI), reflective matte treatment, and a 7:1 contrast ratio. The display operates in a 0°C to 50°C temperature range and can be stored in temperatures as low as -25°C.
See the table below for detailed specifications:
| Specification | Details |
|---|---|
| Brand | E Ink |
| Model Number | ED097OC1 / ED097OC2 / ED097OC4 |
| Diagonal Size | 9.7 inches |
| Resolution | 825 × 1200 pixels (212 PPI) |
| Pixel Format | Rectangle |
| Active Area | 202.8(W)×139.425(H) mm |
| Outline Dimensions | 218.8(H)×156.425(V)×1.28(D) mm |
| Surface Treatment | Anti‑glare |
| Contrast Ratio | 7:1 (Typ.) (Reflective) |
| Touchscreen | No (this version has no touchscreen) |
| Backlight | No backlight, no driver |
| Color Depth | Grayscale |
| Mass | 80.0 ± 5.0 g |
| Use Case | E‑Book Readers |
| Interface | Parallel Data (1ch, 8‑bit), 34‑pin FPC |
| Voltage Supply | 3.3V (Typ.) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
