Overview

Inkplate 6FLICK is a 6-inch e-paper display with a capacitive touchscreen and a frontlight, driven by an ESP32. The panel is a recycled ED060XC3 pulled from e-readers, so it holds its image with the power off and stays readable in sunlight. Unlike the other Inkplates, this one you can touch and read in the dark.

Touch is two-point capacitive, and the frontlight runs across 64 brightness steps. Partial updates land in about 225 ms, which is quick enough for menus and drawing rather than just static pages.

Wi-Fi and Bluetooth are built in. You can program it in Arduino or MicroPython, and expand it over GPIO, I²C, SPI and the easyC/Qwiic header.

Because the panels are reclaimed rather than newly made, expect the occasional cosmetic mark on the glass. It does not affect how the display works.

Inkplate 6FLICK
Inkplate 6FLICK e-paper display board

Which product is this documentation for?​

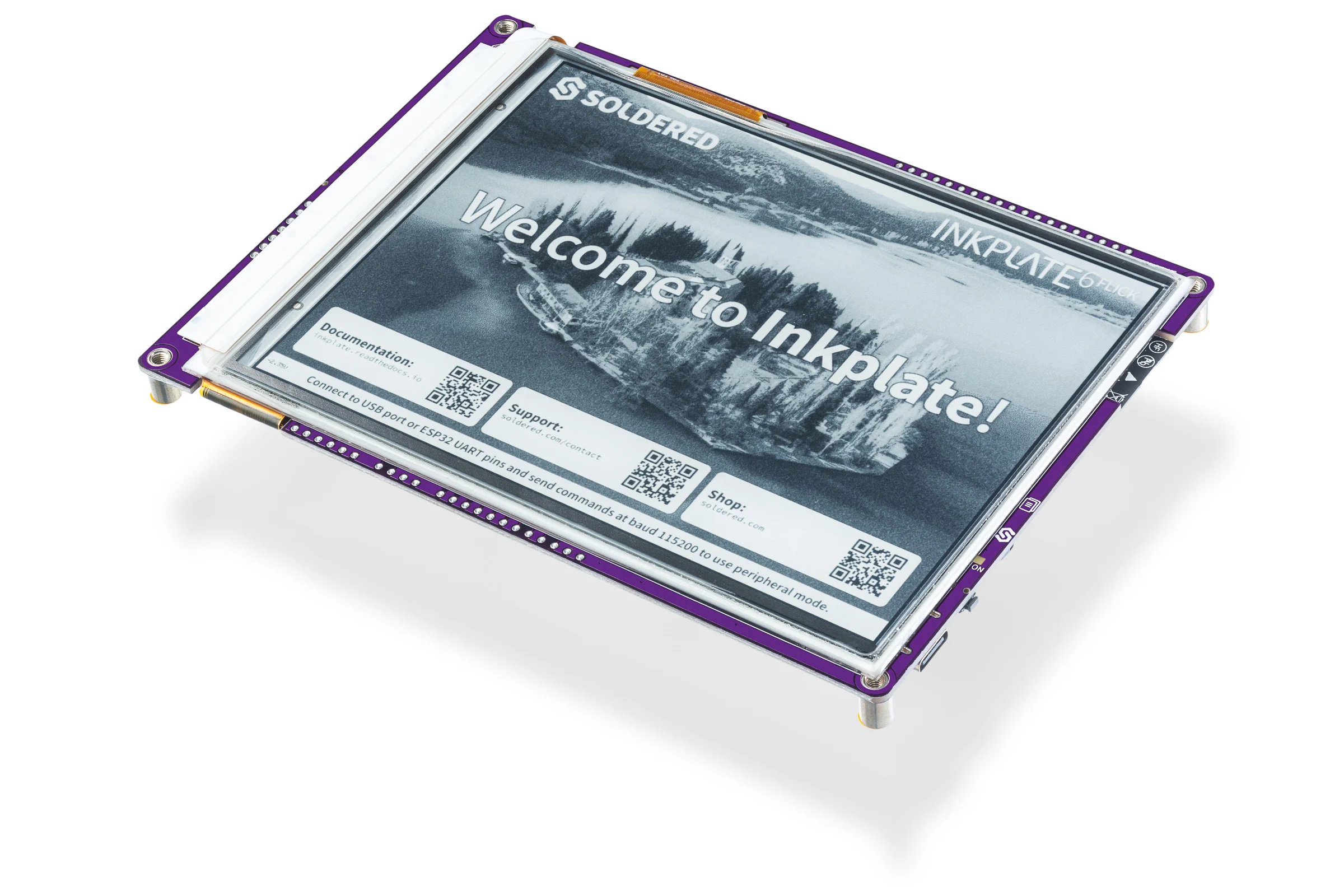

Inkplate 6FLICK

Inkplate 6FLICK

333317

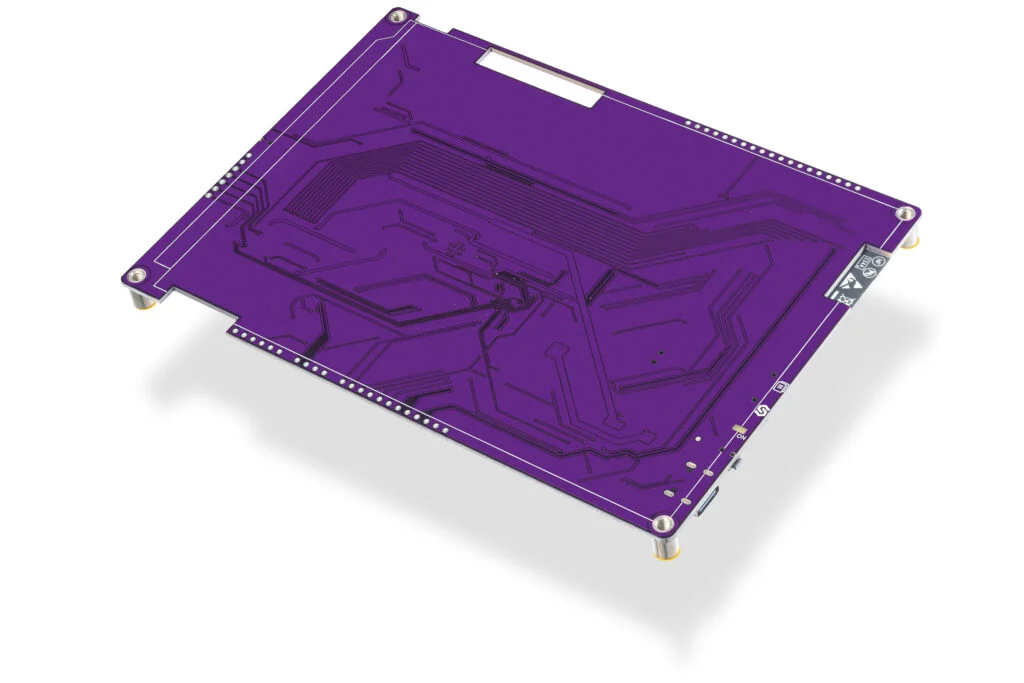

Inkplate 6FLICK without e-paper Display

Inkplate 6FLICK without e-paper Display

333319

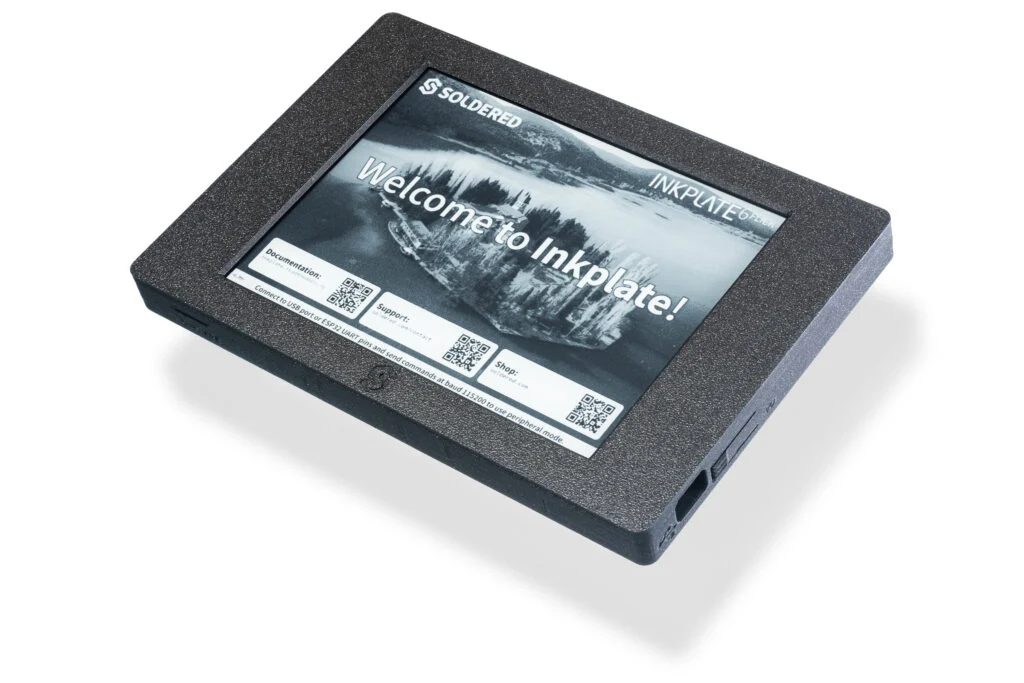

Inkplate 6FLICK with e-paper & enclosure

Inkplate 6FLICK with e-paper & enclosure

333318

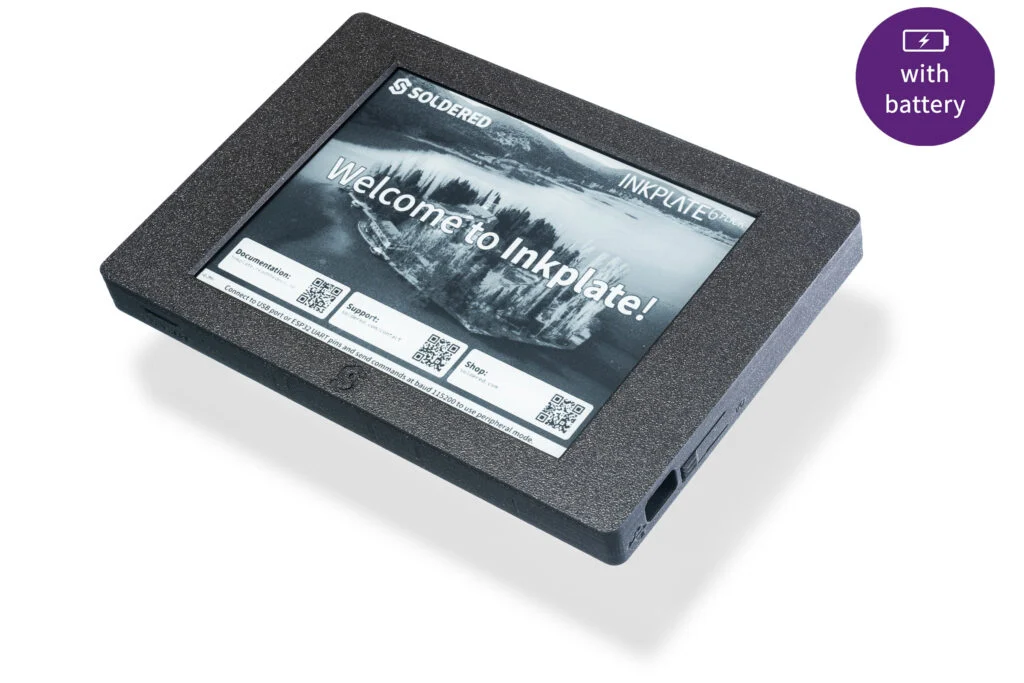

Inkplate 6FLICK with e-paper, Enclosure & Battery

Inkplate 6FLICK with e-paper, Enclosure & Battery

333320

Key features​

  • Display Size: 6.0" e-paper (ED060XC3, touchscreen with frontlight)
  • Resolution: 1024 × 758 pixels
  • Refresh Time: 225 ms (1-bit), 1.26s (3-bit grayscale)
  • Color Support: 3-bit grayscale (8 shades)
  • Touchscreen: 2-point capacitive multi-touch
  • Lighting: Adjustable in 64 brightness steps
  • Microcontroller: ESP32-WROVER (Wi-Fi + Bluetooth 4.2 BR/EDR and BLE)
  • Power Supply: USB-C or Li-Ion battery (charger included)
  • Power Consumption: 23 µA in deep sleep mode
  • Programming Support: Arduino (Adafruit GFX compatible), MicroPython
  • Storage: microSD card slot for media/data
  • Clock: Real-Time Clock (RTC) with battery backup
  • Expansion: GPIO, I²C, SPI, EasyC/Qwiic-compatible
  • Sustainability: Recycled e-paper display (minor cosmetic flaws possible)
  • Open Source: Hardware and software
  • Made in EU: Designed and manufactured in the European Union
  • Dimensions (without case): 150.4 × 107.8 × 11.5 mm / 6.06 × 4.24 × 0.45 inch
  • Dimensions (with case): 173.3 × 116.8 × 14.5 mm / 6.80 × 4.45 × 0.57 inch
