Overview
Inkplate 10 brings the clarity and efficiency of large-format e-paper to DIY electronics. With its 9.7-inch recycled E-Ink display, ultra-low power design, and full Wi-Fi + Bluetooth support, it’s ideal for smart dashboards, wall-mounted displays, and always-on visual interfaces. Just plug it in and start developing. Inkplate 10 is fully compatible with Arduino and MicroPython, and it’s entirely open-source.
The high-resolution screen supports grayscale rendering, partial updates, and fast refresh times, while its ESP32 microcontroller ensures smooth wireless operation. It also includes a microSD slot, RTC, and GPIO expansion through I²C, SPI, and EasyC/Qwiic. Whether battery- or USB-powered, this display works for weeks or months thanks to its energy-efficient design. And with a 3D-printed case and optional battery, Inkplate 10 is ready to go wherever your project takes it.
Which product is this documentation for?

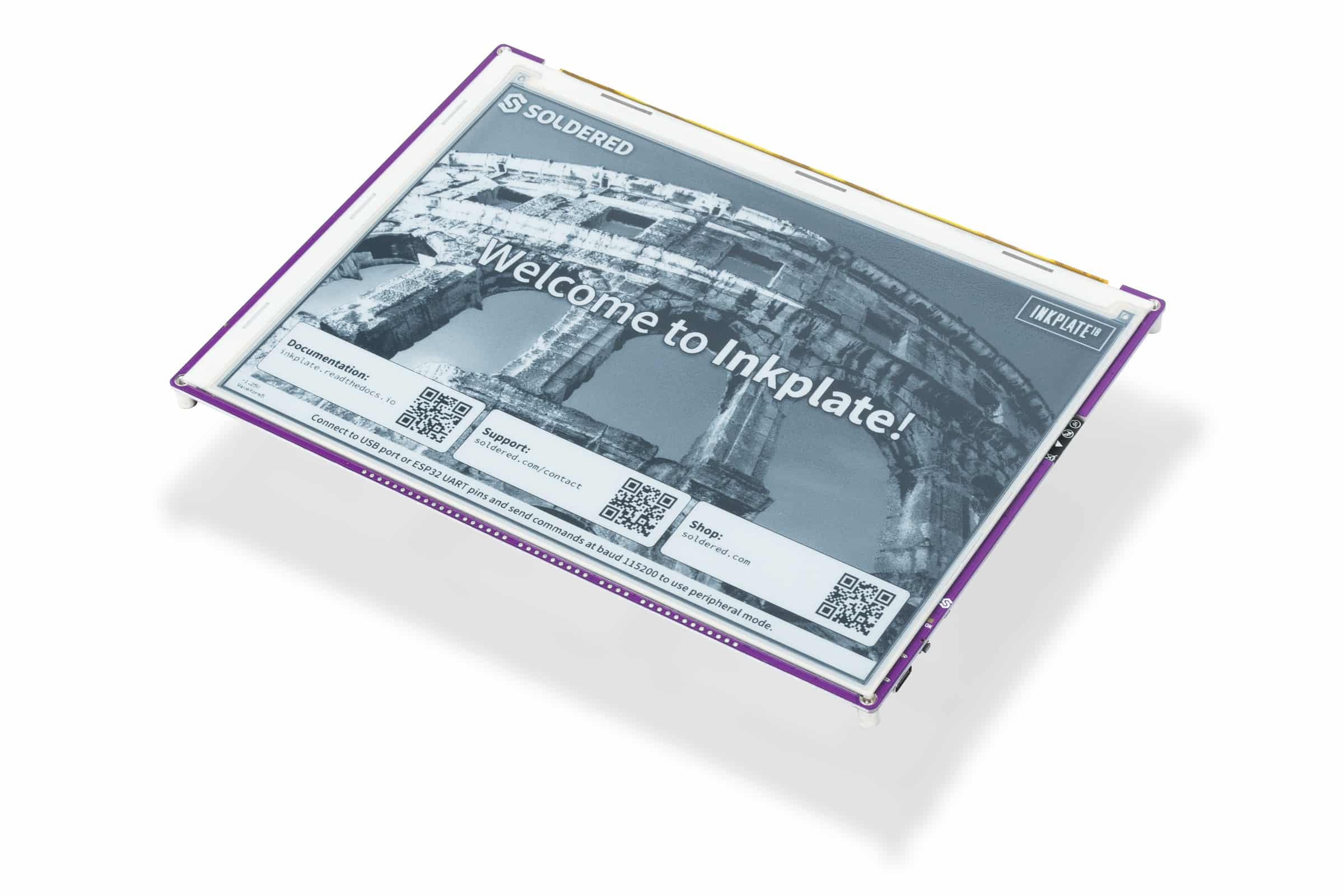

Inkplate 10
333241

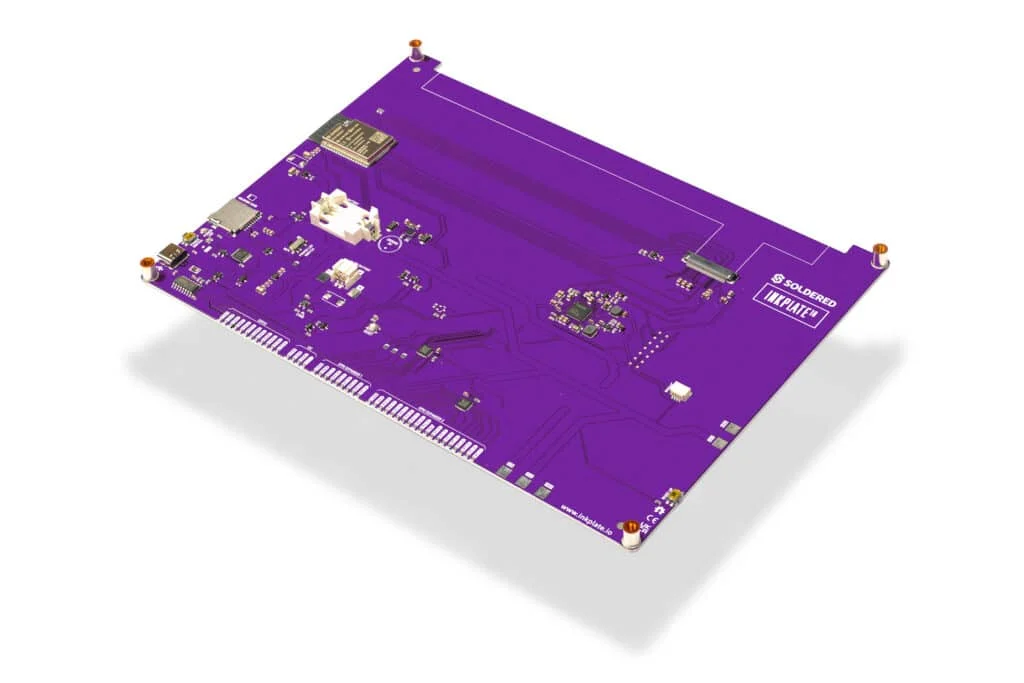

Inkplate 10 without e-paper Display
333243

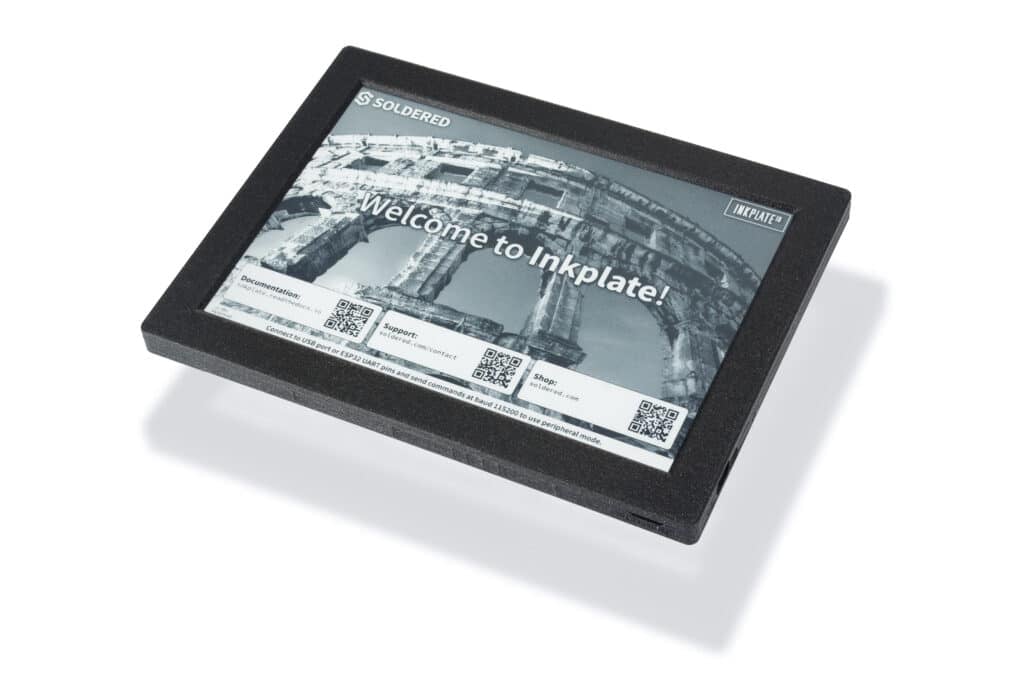

Inkplate 10 with e-paper & enclosure
333242

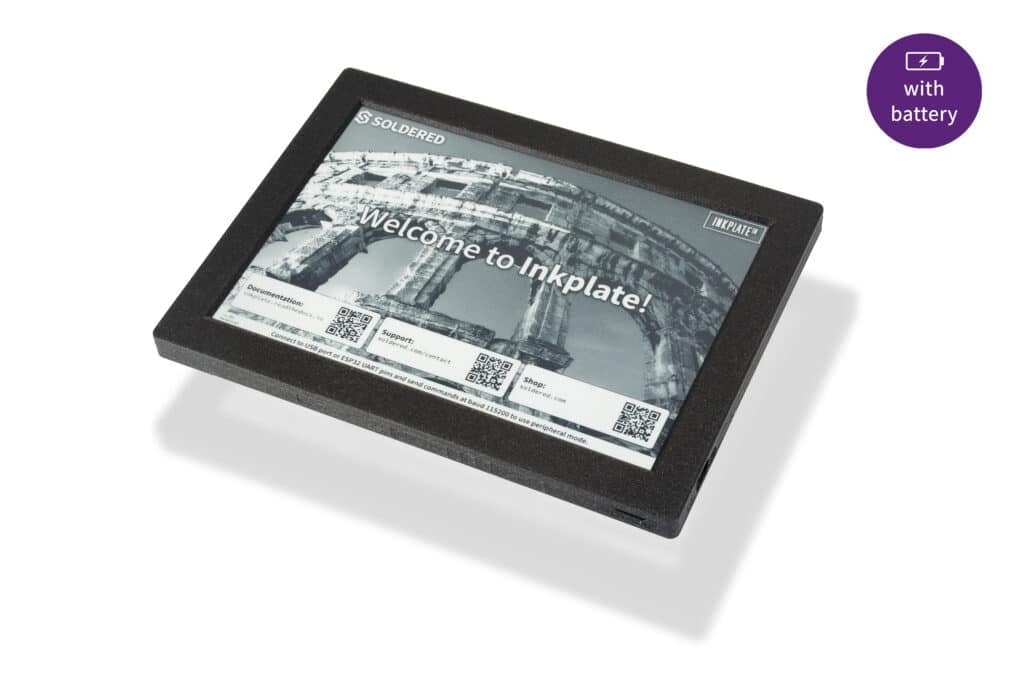

Inkplate 10 with e-paper, Enclosure & Battery
333247
Key Features
- Display Size: 9.7" e-paper (grayscale)
- Resolution: 1200 × 825 pixels
- Refresh Time: 1.61s (full), supports partial updates
- Microcontroller: ESP32 (Wi-Fi + Bluetooth 4.0 BLE)
- Power Supply: USB or Li-Ion battery (charger onboard)
- Power Consumption: 22 µA in deep sleep mode
- Programming Support: Arduino (Adafruit GFX compatible), MicroPython
- Storage: microSD card slot for image/data loading
- Clock: Real-Time Clock (RTC) with battery holder
- Expansion: GPIO, I²C, SPI, EasyC/Qwiic-compatible
- Sustainability: Recycled e-paper display (minor scratches possible)
- Enclosure Options:
- With 3D-printed enclosure
- With enclosure and 3000mAh battery
- Without e-paper display
- Open Source: Hardware and software
- Dimensions (without EPD): 224.3 × 163 × 10 mm / 8.8 × 6.4 × 0.4 inch
- Dimensions (with enclosure): 240 × 179.5 × 13.5 mm / 9.4 × 7.1 × 0.5 inch
