Obstacle Sensor - Overview

Obstacle sensor with easyC​

The Obstacle sensor with easyC is a breakout board based on the TCRT5000 infrared reflective sensor module. This sensor is capable of detecting the presence of objects within a distance of 2 to 8 millimeters. This sensor is often used in line-following robots and for automatic data logging on utility meters. The board uses I2C communication with a default address of 0x30 and is designed for seamless Qwiic (formerly easyC) connectivity—eliminating the need for soldering.

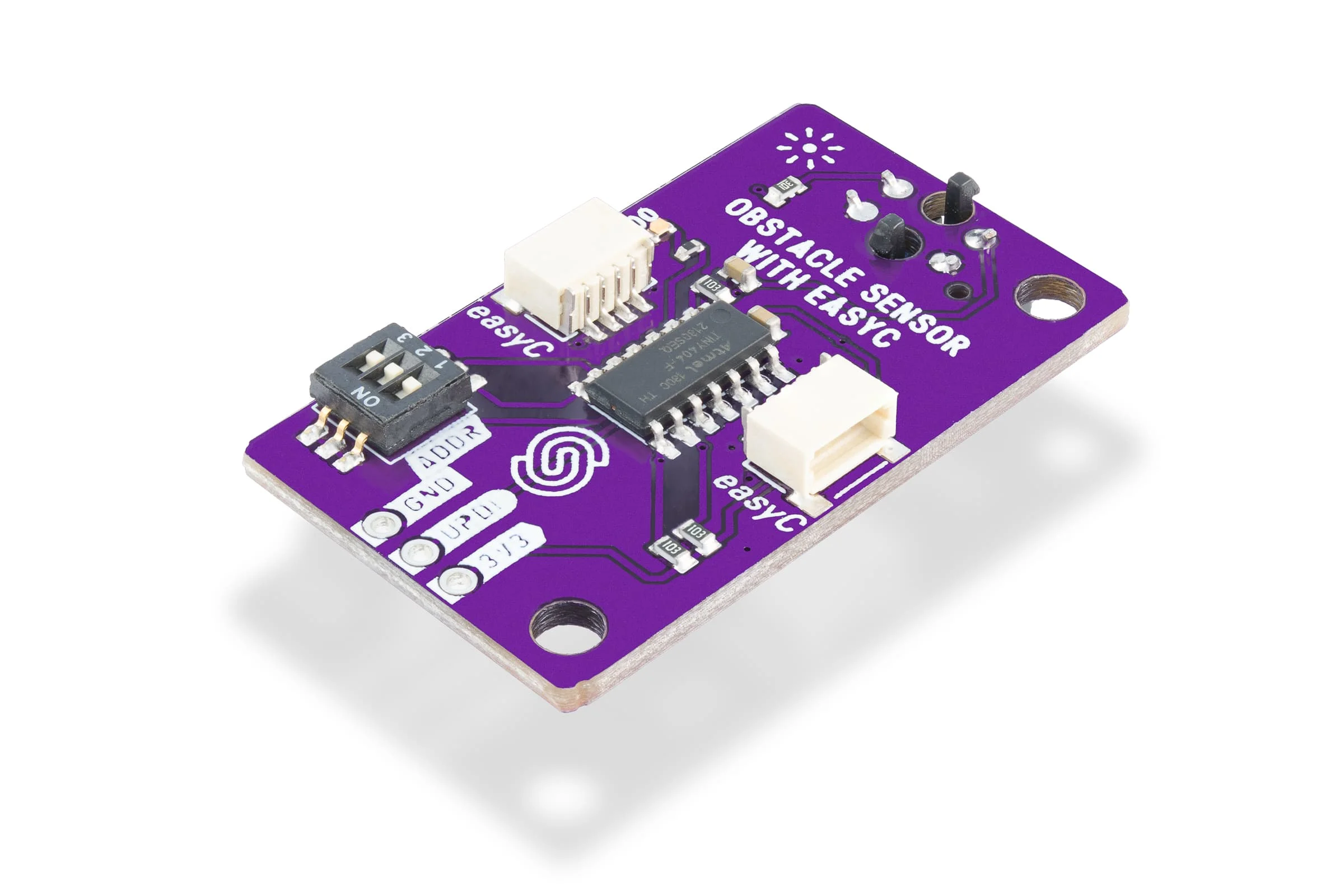

Obstacle sensor with easyC
Obstacle sensor with easyC

Which product is this documentation for?​

Obstacle sensor with easyC

Obstacle sensor with easyC

333004

Key Features​

  • Working Voltage: 3.3V
  • Sensor: TCRT5000
  • IC: ATTiny404
  • Dimensions: 38 x 22 mm (1.5 x 0.9 inch)
