Rotary Encoder - Overview

Rotary encoder​

The Rotary encoder board, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft to analog or digital output signals. This product is a great option for projects that implement linear model to change data value,such as volume control knobs. It features I2C communication with a hardware-defined address of 0x70 and is designed for seamless Qwiic (formerly easyC) connectivity—eliminating the need for soldering.

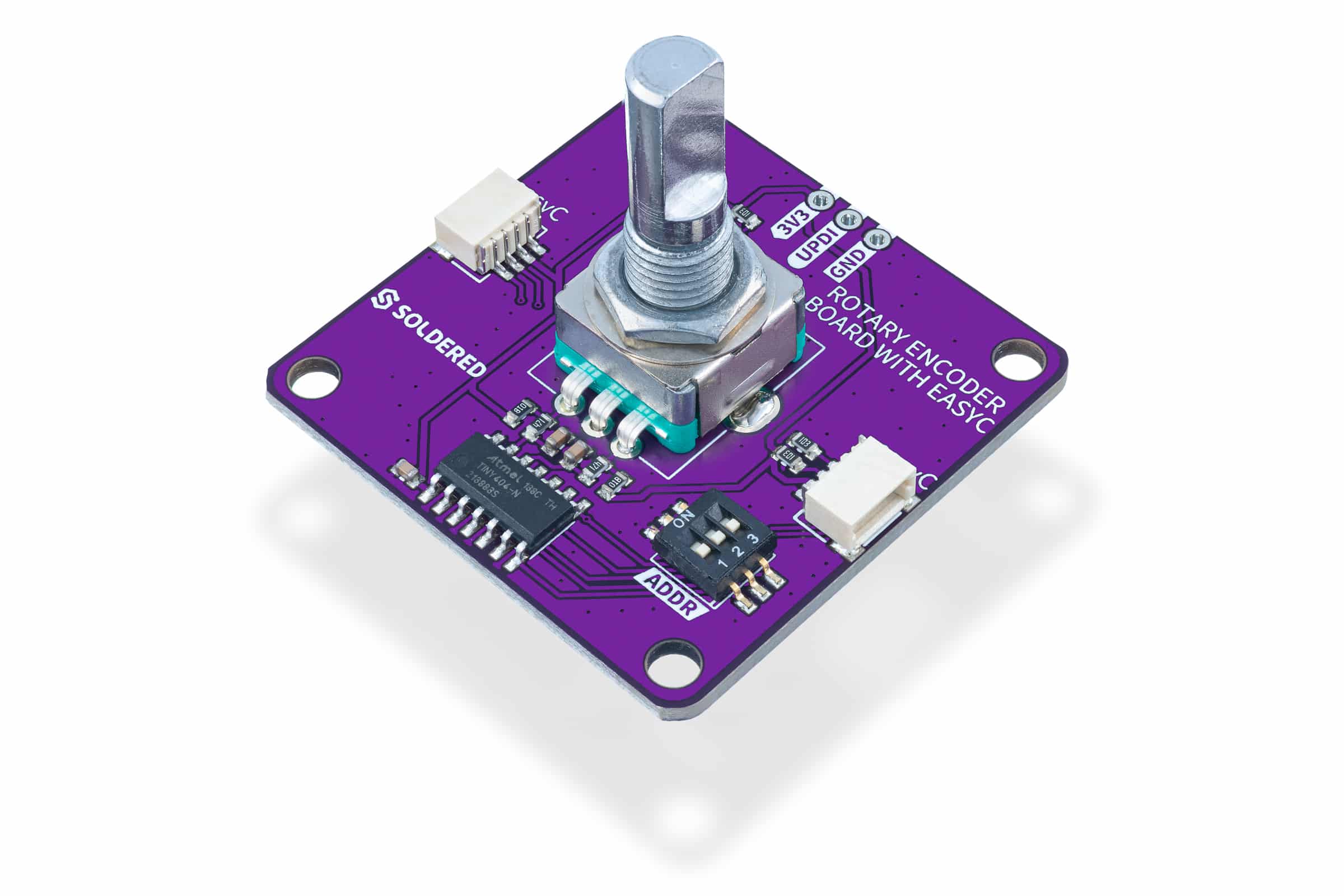

Rotary encoder board with easyC
Rotary encoder board with easyC

Which product is this documetation for?​

Rotary encoder board with easyC

Rotary encoder board with easyC

333188

Key features​

  • Voltage: 3.3V
  • Rotary encoder PN: EC11E1534408
  • Microcontroller: ATTiny404
  • Signal translation for easy microcontroller interpretation
  • Communication: I2C
  • Connector: 2 × Qwiic (formerly easyC) ports (plug-and-play, no soldering needed)
  • Mounting: Four mounting holes for secure attachment
  • Dimensions: 38 × 38 mm (1.5 × 1.5 inch)

You may also need​

Qwiic cable

Qwiic cable

Qwiic (formerly easyC) compatible cables with connectors on both ends, available in various lengths.
