Simple Light Sensor - Overview
Simple light sensor
The simple light sensor breakout board is a precise sensor that detects the presence and intensity of ambient light. This sensor features a light-dependent resistor (LDR) that detects light. This sensor is also available in a version with I2C communication, with a default address of 0x30, and is designed for seamless Qwiic (formerly easyC) connectivity—eliminating the need for soldering.

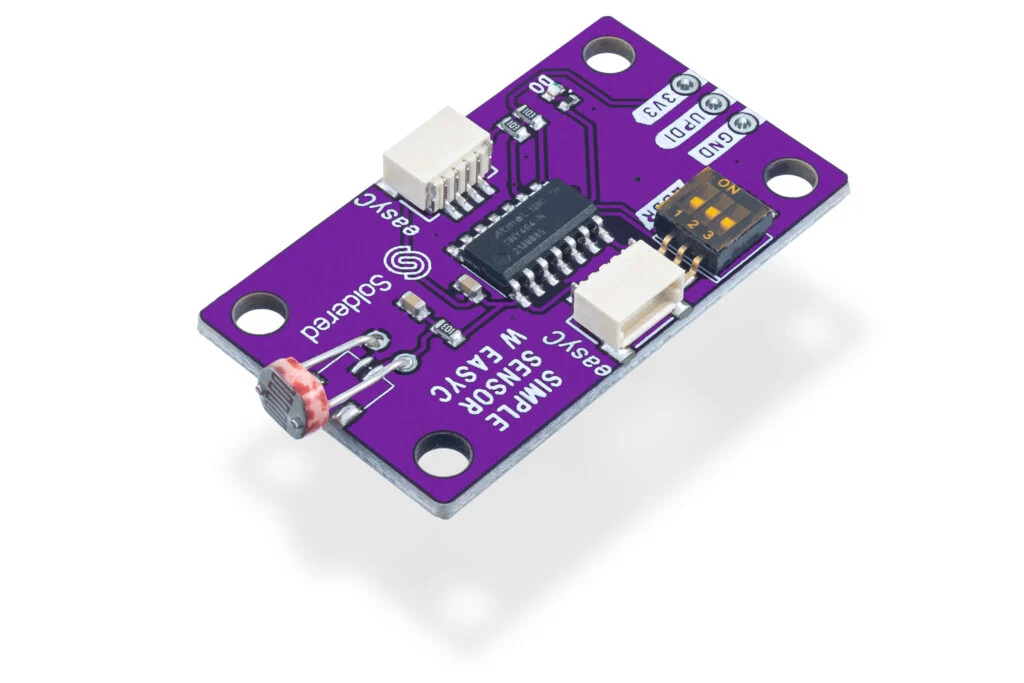

Qwiic version of the fire sensor board

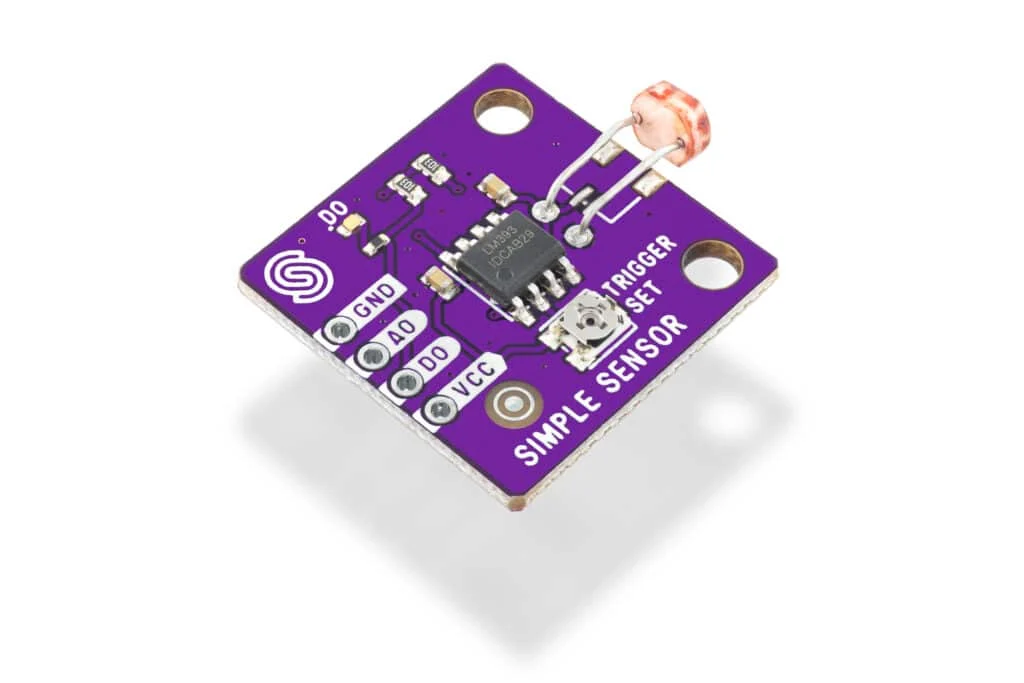

Regular version of the light sensor board
Which product is this documentation for?
Simple light sensor with easyC
333041
Simple light sensor
333046
Key Features
- Regular
- Operating voltage: 3.3V - 5V
- Output: analog and digital
- IC: LM393 comparator
- Mounting: Two mounting holes
- Dimensions: 22 x 22 mm (0.9 x 0.9 inch)
- Qwiic
- Operating voltage: 3.3V
- Output: analog and digital
- IC: ATTINY404
- Communication: I2C (You may change the address via the switches on the front of the board)
- Connector: 2 × Qwiic (formerly easyC) ports (plug-and-play, no soldering needed)
- Mounting: Four mounting holes for secure attachment
- Dimensions: 38 × 22 mm (1.5 × 0.9 inch)
