TXB0104 – Overview

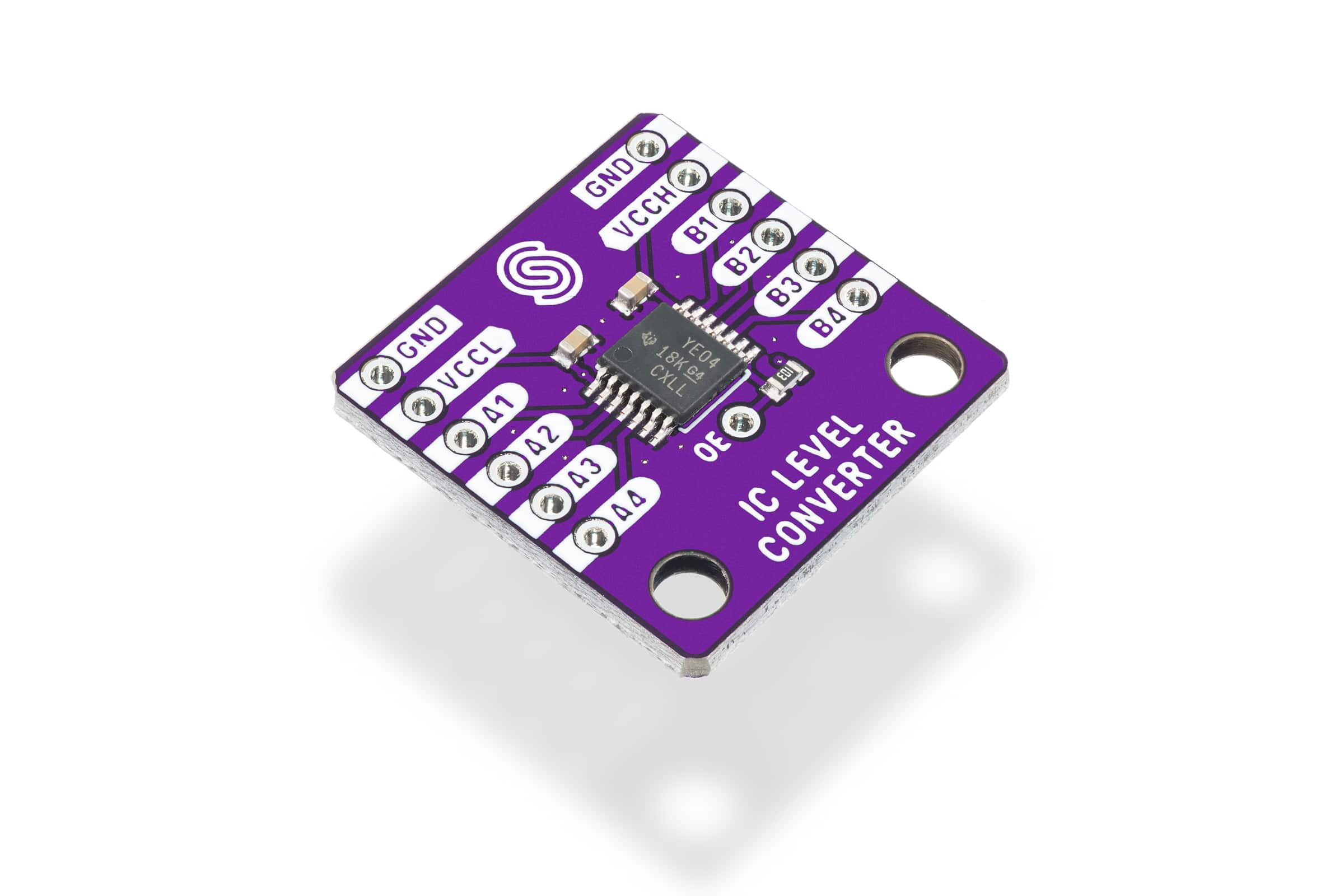

Logic Level Converter TXB0104 Board
This board is designed for signal conversion for almost any communication protocol. It uses a specialized integrated circuit that enables high-speed communication.
The Logic Level Converter TXB0104 Board provides bidirectional voltage level translation between two signals, enabling communication between devices operating at different logic voltages. Whether you're connecting a 5V microcontroller to a 3.3V sensor or working with other voltage combinations, this module ensures compatibility while protecting lower-voltage components from damage.
Should not be used in applications such as I2C, 1-Wire, or an MMC card interface where an open-drain driver is connected to the bidirectional data I/O.
If you need one for I2C communication, we offer an I2C TXS0104 board.
Which product is this documentation for?
Logic Level Converter TXB0104
333017
Key Features
- Bidirectional Voltage Level Translation: Safely shifts voltage levels between low-voltage and high-voltage systems (usually 3.3V and 5V).
- Number of Channels: 4
- Maximum Voltage: 30V
- Mounting: Two mounting holes for secure attachment
- Dimensions: 22 x 22 mm (0.9 x 0.9 inches)
