Simple Rain Sensor - Overview
Simple rain sensor
The simple rain sensor breakout board is a precise sensor that detects if any moisture is present on its surface. It has two nickel-plated lines that are shorted when any moisture is present. It is commonly used as a rain sensor. This sensor also comes in a version with I2C communication, with a default address of 0x30, and is designed for seamless Qwiic (formerly easyC) connectivity—eliminating the need for soldering.

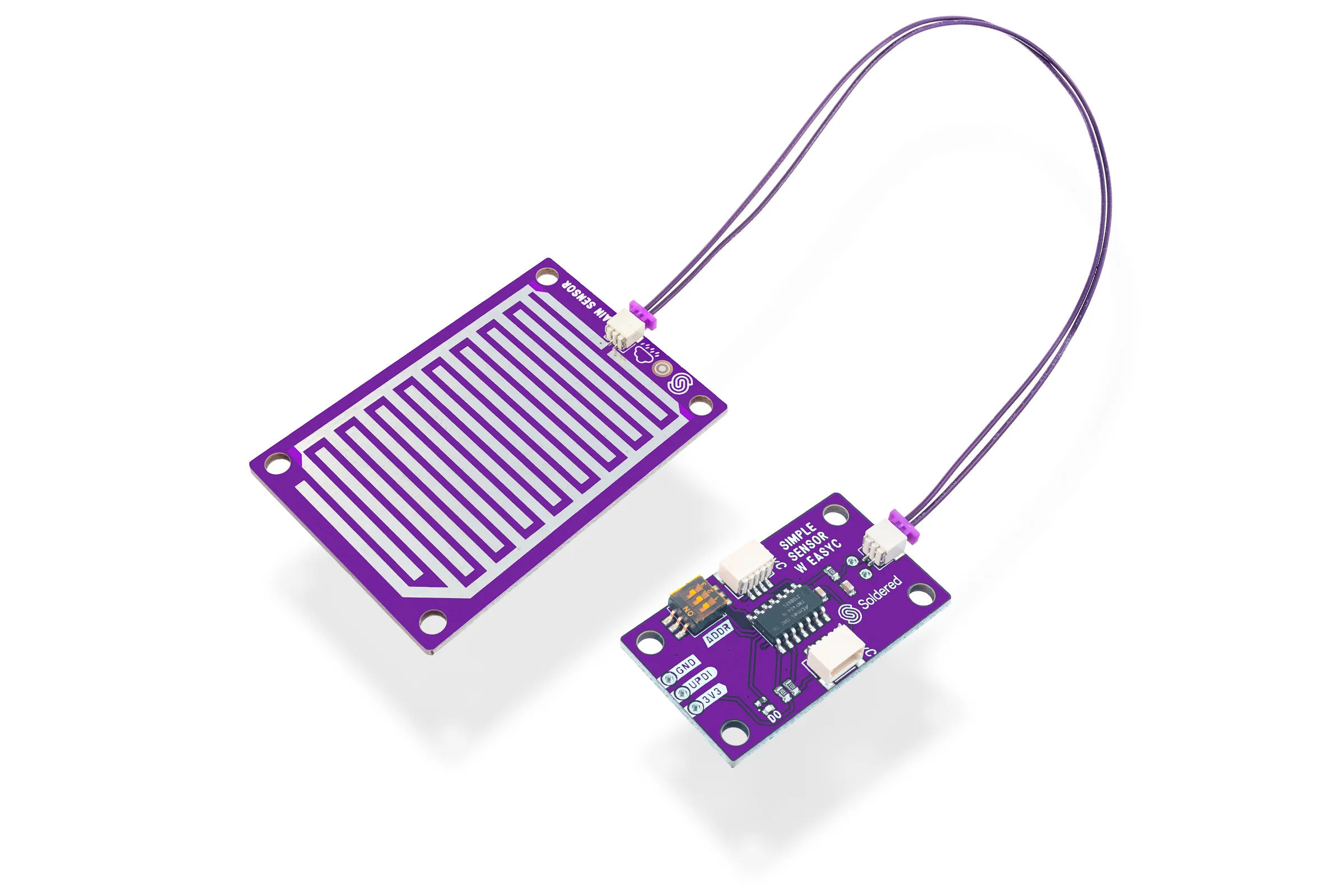

Qwiic version of the rain sensor board

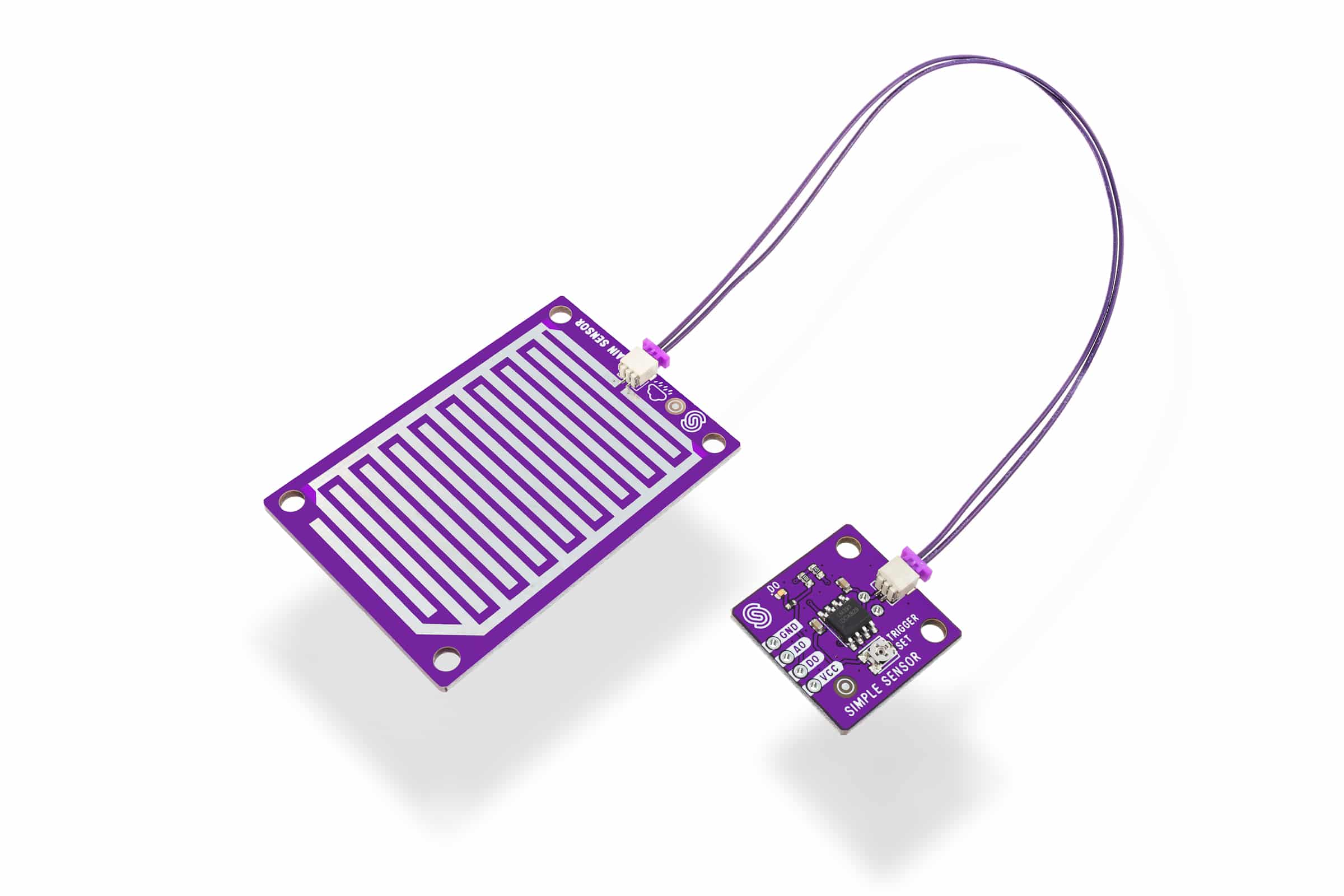

Regular version of the rain sensor board
Which product is this documentation for?
Simple rain sensor board with easyC
333042
Simple rain sensor board
333043
Key Features
- Regular
- Operating voltage: 3.3V - 5V
- Output: analog and digital
- IC: LM393 comparator
- Mounting:
- Four holes on rain sensor
- Two holes on the simple sensor
- Dimensions:
- 55 x 38 mm (2.2 x 1.5 inch)
- 22 x 22 mm (0.9 x 0.9 inch)
- Qwiic
- Operating voltage: 3.3V
- Output: analog and digital
- IC: ATTINY404
- Communication: I2C (You may change the address via the switches on the front of the board)
- Connector: 2 × Qwiic (formerly easyC) ports (plug-and-play, no soldering needed)
- Mounting:
- Four holes on rain sensor
- Four holes on the simple sensor
- Dimensions:
- 54 x 38 mm (2.2 x 1.5 inch)
- 38 × 22 mm (1.5 × 0.9 inch)
