Overview
The Inkplate 2 is a compact, energy-efficient 2.13-inch e-paper display development board built for makers, students, and engineers. It combines a three-color (black, white, and red) e-paper screen with an ESP32 microcontroller, enabling Wi-Fi and Bluetooth connectivity right out of the box. With plug-and-play simplicity and multiple software libraries available, it's perfect for both rapid prototyping and long-term installations.

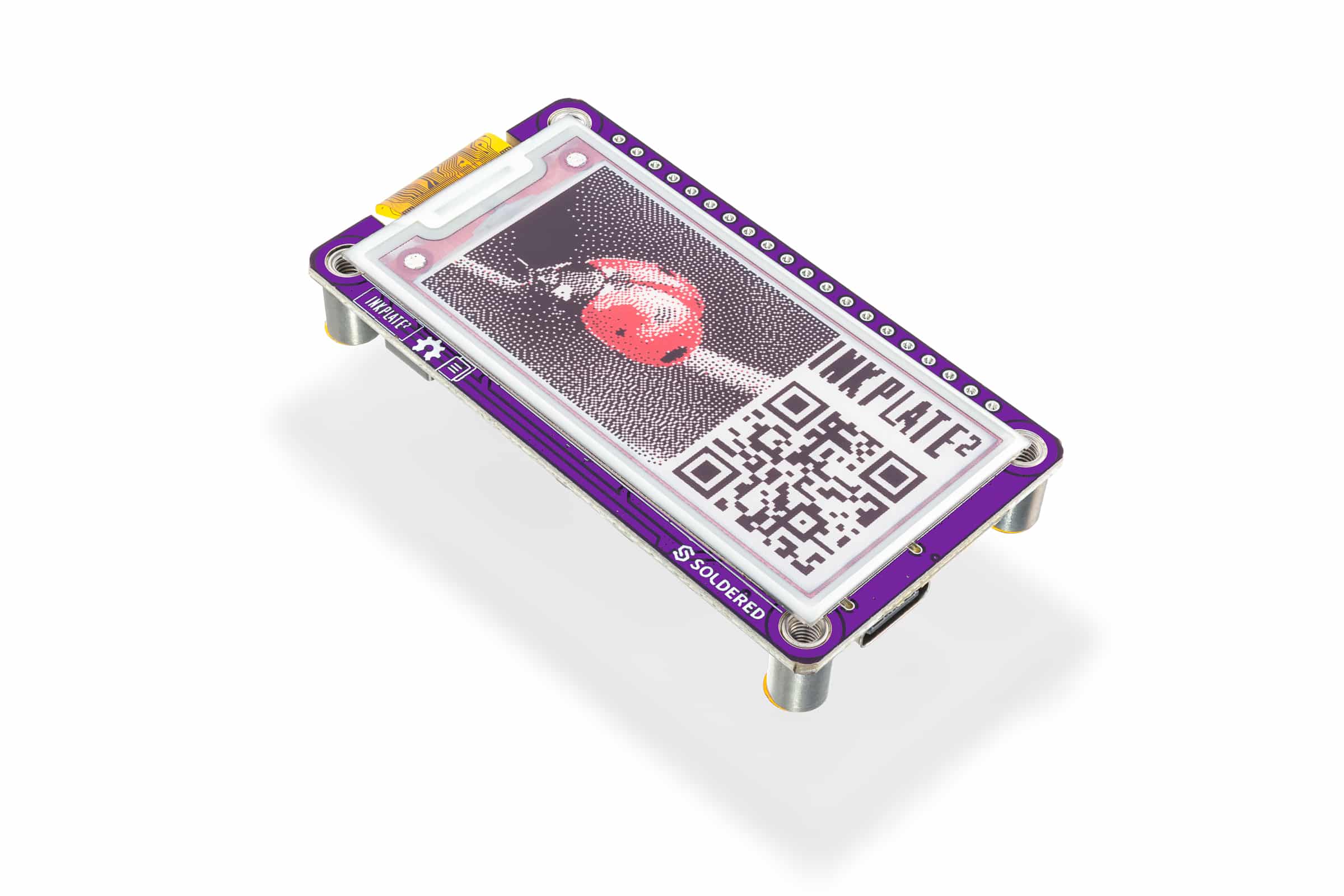

Inkplate 2 e-paper display board
Which product is this documentation for?
Inkplate 2
333166
Inkplate 2 without e-paper Display
333227

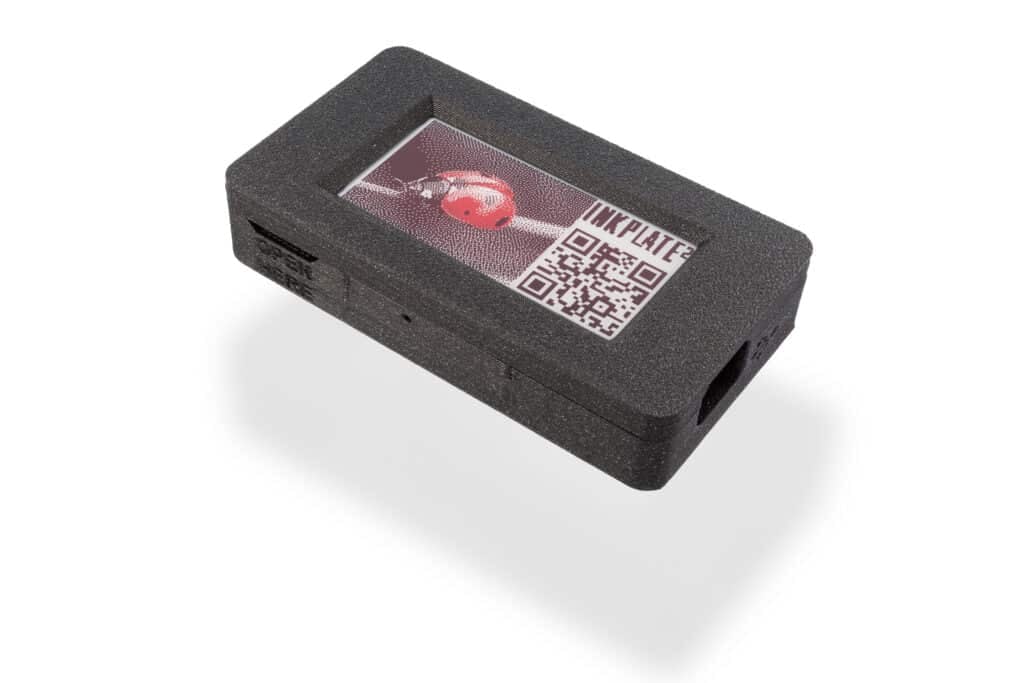

Inkplate 2 with e-paper & enclosure
333167
Inkplate 2 with e-paper, Enclosure & Battery
333228
Key Features
- Display Size: 2.13" e-paper
- Resolution: 212 × 104 pixels
- Microcontroller: ESP32 (Wi-Fi + Bluetooth)
- Programming Support: Arduino, MicroPython
- Power Consumption: Ultra-low power in deep sleep mode
- Power Supply: USB-C or Li-ion battery
- Connectivity: Wi-Fi, Bluetooth (via ESP32)
- Dimensions for version without EPD: 65.3 x 35 x 9.8 mm / 2.6 x 1.4 x 0.4 inch
- Dimensions for version with EPD: 65.3 x 35 x 9.8 mm / 2.6 x 1.4 x 0.4 inch
- Dimensions for version with enclosure: 79.3 x 44 x 15.7 mm / 3.1 x 1.7 x 0.6 inch
- Dimensions for version with enclosure and battery: 79.3 x 44 x 15.7 mm / 3.1 x 1.7 x 0.6 inch
