Alert pin

This example demonstrates how to use the TMP117’s ALR (Alert) pin to trigger an alert when the measured temperature goes outside a specified range. When the temperature crosses the low (20 °C) or high (28 °C) threshold, the sensor pulls the alert pin low and reports the event through the Serial Monitor.

Reading temperature with alerts

Open the Serial Monitor at 115200 baud to view temperature readings and alert messages.

#include "Soldered-TMP117.h"

#define ALERT_PIN               26
#define LOW_TEMPERATURE_ALERT   20
#define HIGH_TEMPERATURE_ALERT  28

bool alert_flag = false;
Soldered_TMP117 tmp;

void setup() {
  Wire.begin();
  Serial.begin(115200);

  tmp.init(new_temperature);
  tmp.setConvMode(TMP117_CMODE::CONTINUOUS);
  tmp.setConvTime(TMP117_CONVT::C15mS5);
  tmp.setAveraging(TMP117_AVE::NOAVE);

  tmp.setAlertMode(TMP117_PMODE::ALERT);
  tmp.setAlertCallback(temperature_alert, ALERT_PIN);
  tmp.setAlertTemperature(LOW_TEMPERATURE_ALERT, HIGH_TEMPERATURE_ALERT);
}

void loop() {
  tmp.update();

  if (alert_flag) {
    if (tmp.getAlertType() == TMP117_ALERT::HIGHALERT) {
      Serial.print("High temperature alert: ");
      Serial.print(tmp.getTemperature());
      Serial.println(" °C");
    } else if (tmp.getAlertType() == TMP117_ALERT::LOWALERT) {
      Serial.print("Low temperature alert: ");
      Serial.print(tmp.getTemperature());
      Serial.println(" °C");
    }
    alert_flag = false;
  }
  delay(100);
}

void new_temperature() {
  Serial.print("Temperature: ");
  Serial.print(tmp.getTemperature());
  Serial.println(" °C");
}

void temperature_alert() {
  alert_flag = true;
}

Function reference

tmp.init(void (*newDataCallback) = nullptr)

Initializes communication with the TMP117 sensor and optionally registers a callback function that is triggered when new temperature data is available.

Returns value: bool, true if the sensor was successfully initialized.

tmp.setConvMode(TMP117_CMODE mode)

Sets the sensor’s conversion mode. Supported modes include CONTINUOUS (continuous readings), ONESHOT (single reading), and SHUTDOWN (low-power standby).

Returns value: None

tmp.setConvTime(TMP117_CONVT convTime)

Configures the time between temperature conversions. Shorter conversion times provide faster updates at the cost of higher power consumption.

Returns value: None

tmp.setAveraging(TMP117_AVE avg)

Sets the number of samples to average per temperature reading. Averaging can help reduce noise at the expense of speed.

Returns value: None

tmp.setAlertMode(TMP117_PMODE mode)

Configures the TMP117’s alert mode behavior. In ALERT mode, the ALR pin is triggered when the temperature crosses programmed thresholds; in THERM mode, it operates as a comparator output.

Returns value: None

tmp.setAlertCallback(void (*callback)(), int alertPin)

Registers a callback function that is executed when the alert pin changes state. The alert pin number must be specified.

Returns value: None

tmp.setAlertTemperature(float lowLimit, float highLimit)

Sets the low and high temperature thresholds for alert generation in degrees Celsius.

Returns value: None

tmp.getAlertType()

Returns the type of alert currently active — either HIGHALERT or LOWALERT — depending on which threshold was crossed.

Returns value: TMP117_ALERT, Enumeration value indicating alert type.

tmp.update()

Updates the sensor data and checks for new readings or alert conditions. Should be called regularly in the main loop.

Returns value: None

tmp.getTemperature()

Reads and returns the latest measured temperature value.

Returns value: float, Temperature in degrees Celsius.

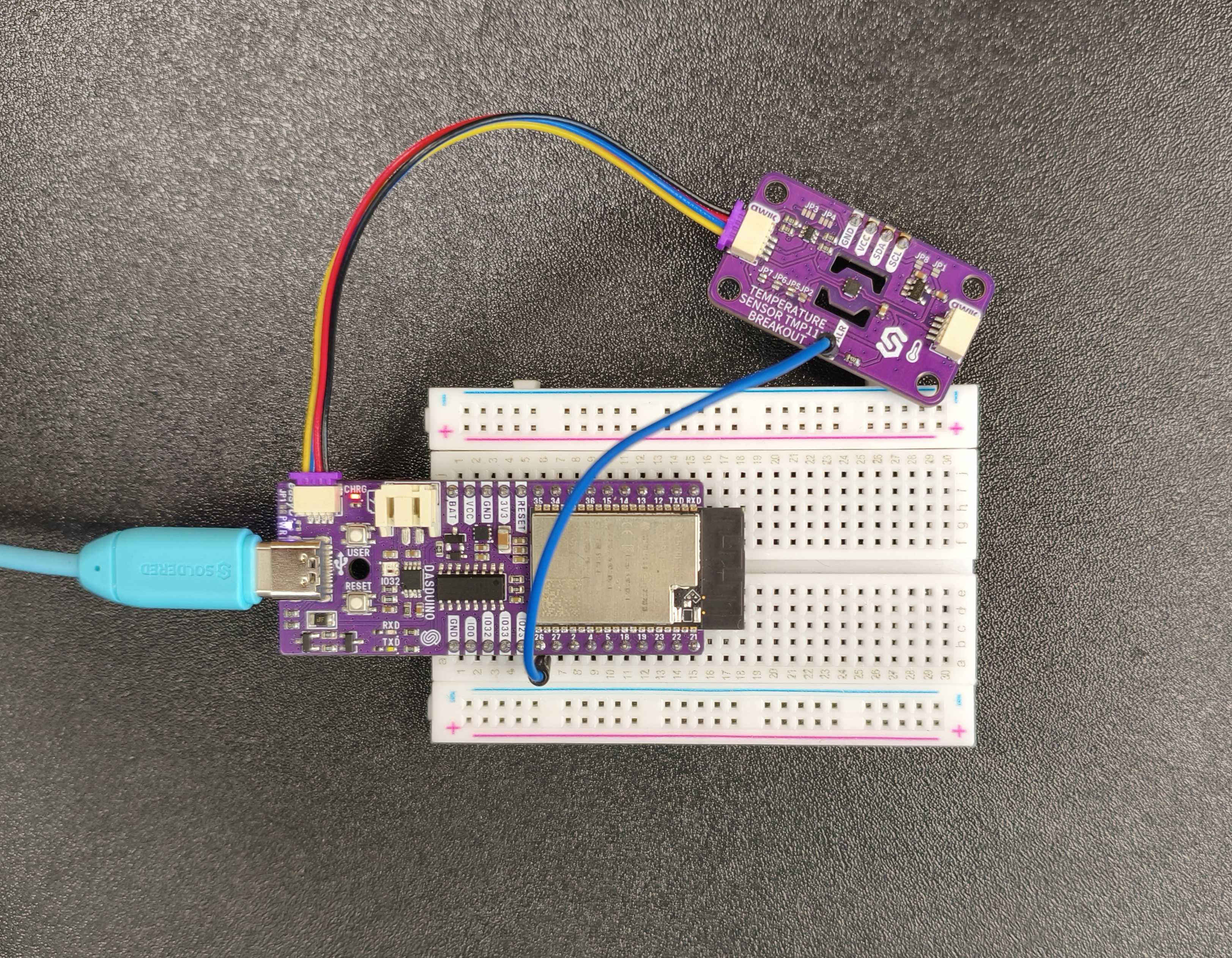

Dasduino CONNECTPLUS connected to the TMP117 temperature sensor, showing the ALR pin connection for alert functionality.

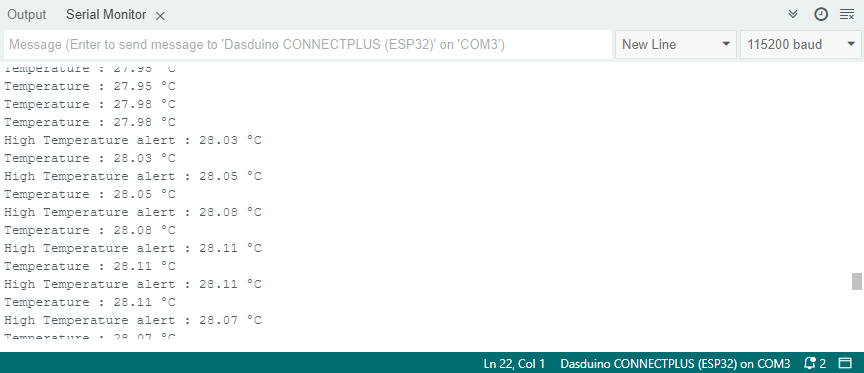

Serial Monitor showing high and low temperature alerts from the TMP117 sensor.

Full example

alertPin.ino

Example that shows how to use the TMP117’s alert pin to detect high and low temperature events.
