Drawing Graphics

Inkplate 2 features a 2.13″ three-color e-paper display capable of rendering black, white, and red pixels. You can draw geometric shapes using the built-in Adafruit GFX functions, which are compatible with the Inkplate library.

Inkplate 2 supports the Adafruit GFX graphics library for drawing.

ℹ️

Adafruit GFX is the graphics library included in the Inkplate library for drawing graphics. For more details, refer to the official repository:

Adafruit GFX Library

The core graphics library for Inkplate library, created by Adafruit.

---

Drawing Geometric Shapes

Below is an example demonstrating functions used for drawing graphics on the Inkplate 2:

Use these functions to draw pixels, lines, rectangles, circles, and more. Inkplate 2 supports three colors:

• INKPLATE2_BLACK
• INKPLATE2_RED
• INKPLATE2_WHITE (background/erase)

#include "Inkplate.h"
Inkplate inkplate;

void setup() {
  inkplate.begin();
  inkplate.clearDisplay();
  inkplate.display();

  // Pixel replacements with small filled rectangles for visibility
  inkplate.fillRect(30, 5, 5, 5, INKPLATE2_BLACK);
  inkplate.fillRect(50, 5, 5, 5, INKPLATE2_RED);

  // Lines
  inkplate.drawLine(10, 15, 100, 15, INKPLATE2_BLACK);
  inkplate.drawLine(10, 25, 100, 25, INKPLATE2_RED);

  // Rectangles
  inkplate.drawRect(10, 35, 40, 20, INKPLATE2_BLACK);
  inkplate.fillRect(60, 35, 40, 20, INKPLATE2_RED);

  // Circles
  inkplate.drawCircle(30, 65, 10, INKPLATE2_BLACK);
  inkplate.fillCircle(70, 65, 10, INKPLATE2_RED);

  // Rounded rectangles
  inkplate.drawRoundRect(10, 85, 40, 20, 5, INKPLATE2_BLACK);
  inkplate.fillRoundRect(60, 85, 40, 20, 5, INKPLATE2_RED);

  // Triangles
  inkplate.drawTriangle(10, 125, 40, 125, 25, 105, INKPLATE2_BLACK);
  inkplate.fillTriangle(60, 125, 90, 125, 75, 105, INKPLATE2_RED);

  inkplate.display();
}

void loop() {}

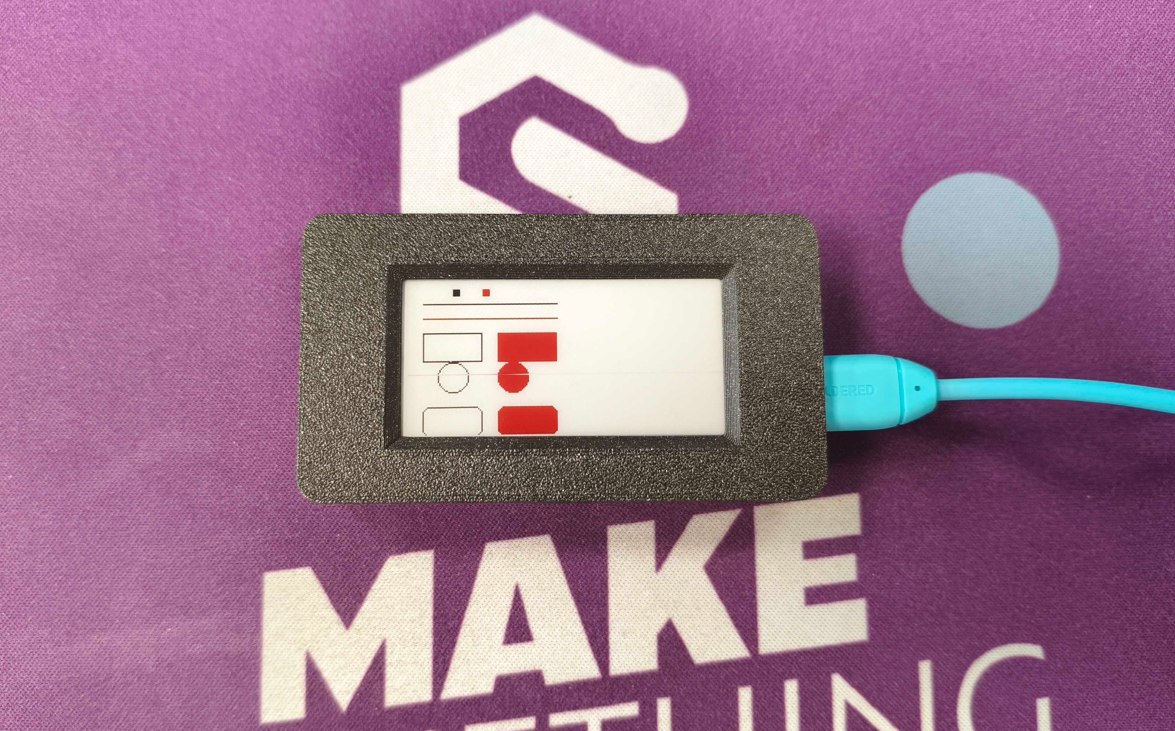

Expected output on Inkplate display.

Below are the detailed references for these functions:

inkplate.drawPixel()

Draws a single pixel on the display at the specified coordinates.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the pixel.
int	y	The y-coordinate of the pixel.
uint8_t	color	The color of the pixel.

inkplate.drawLine()

Draws a straight line between two points on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x0	The x-coordinate of the starting point.
int	y0	The y-coordinate of the starting point.
int	x1	The x-coordinate of the ending point.
int	y1	The y-coordinate of the ending point.
uint8_t	color	The color of the line.

inkplate.drawRect()

Draws a rectangle outline on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the top-left corner.
int	y	The y-coordinate of the top-left corner.
int	width	The width of the rectangle.
int	height	The height of the rectangle.
uint8_t	color	The color of the rectangle outline.

inkplate.fillRect()

Draws a filled rectangle on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the top-left corner.
int	y	The y-coordinate of the top-left corner.
int	width	The width of the rectangle.
int	height	The height of the rectangle.
uint8_t	color	The fill color.

inkplate.drawCircle()

Draws a circle outline on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the circle center.
int	y	The y-coordinate of the circle center.
int	radius	The radius of the circle.
uint8_t	color	The color of the circle outline.

inkplate.fillCircle()

Draws a filled circle on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the circle center.
int	y	The y-coordinate of the circle center.
int	radius	The radius of the circle.
uint8_t	color	The fill color.

inkplate.drawRoundRect()

Draws a rounded rectangle outline on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the top-left corner.
int	y	The y-coordinate of the top-left corner.
int	width	The width of the rectangle.
int	height	The height of the rectangle.
int	radius	The radius of the rounded corners.
uint8_t	color	The color of the rectangle outline.

inkplate.fillRoundRect()

Draws a filled rounded rectangle on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the top-left corner.
int	y	The y-coordinate of the top-left corner.
int	width	The width of the rectangle.
int	height	The height of the rectangle.
int	radius	The radius of the rounded corners.
uint8_t	color	The fill color.

inkplate.drawTriangle()

Draws a triangle outline on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x0	The x-coordinate of the first vertex.
int	y0	The y-coordinate of the first vertex.
int	x1	The x-coordinate of the second vertex.
int	y1	The y-coordinate of the second vertex.
int	x2	The x-coordinate of the third vertex.
int	y2	The y-coordinate of the third vertex.
uint8_t	color	The color of the triangle outline.

inkplate.fillTriangle()

Draws a filled triangle on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x0	The x-coordinate of the first vertex.
int	y0	The y-coordinate of the first vertex.
int	x1	The x-coordinate of the second vertex.
int	y1	The y-coordinate of the second vertex.
int	x2	The x-coordinate of the third vertex.
int	y2	The y-coordinate of the third vertex.
uint8_t	color	The fill color.

Full example

Inkplate2_Black_White_Red.ino

Example drawing graphics using all three Inkplate 2 colors.

ℹ️

For more advanced usage, visit the Inkplate 2 examples directory.
