Inkplate 5v2 – Free GPIO pins
Inkplate 5v2's onboard ESP32 WROVER-E has some pins reserved for internal use (for example, the connection to the e-paper display) and cannot be used for end-user applications. This page contains a list of the available GPIO pins that can be used for external applications.

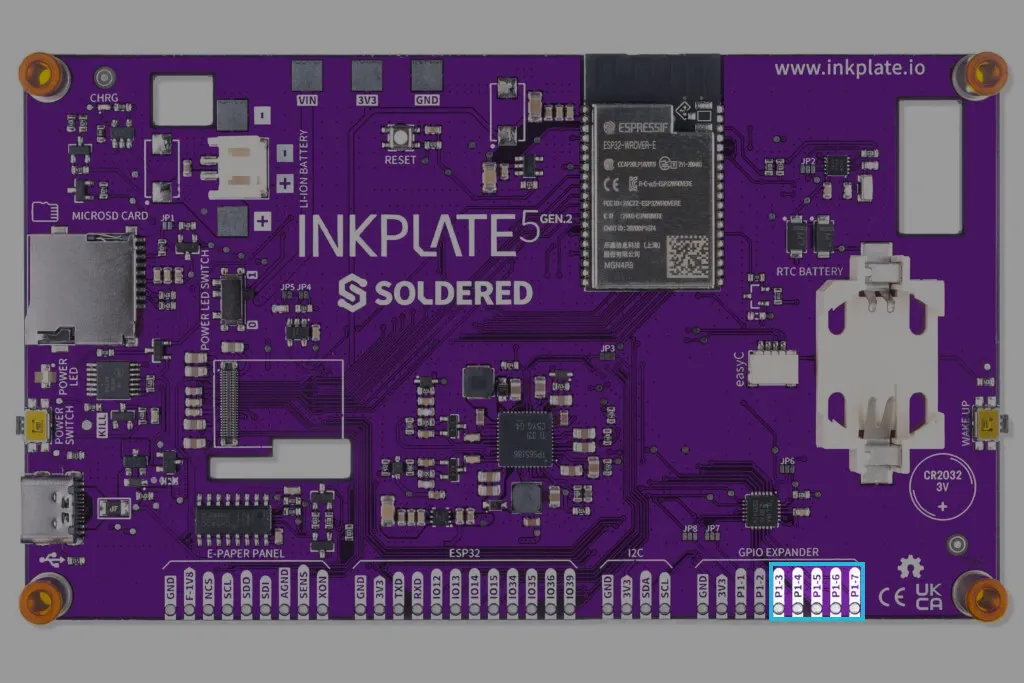

If you don't need pin details and are just interested in the pins, here are the Inkplate 5v2 pins that are not connected to any external component:
P1-3, P1-4, P1-5, P1-6, P1-7. These are all on the GPIO expander peripheral.
Inkplate 5v2 free pins
See the table below for pin functions and what each pin is connected to:
Free pin table
| PIN | CONNECTED TO | FUNCTION |
|---|---|---|
| IO12 | SDCARD | ADC, TOUCH5, RTC_GPIO15, MTDI, HSPIQ, HS2_DATA2, SD_DATA2, EMAC_TXD3 |
| IO13 | SDCARD | ADC, TOUCH4, RTC_GPIO14, MTCK, HSPID, HS2_DATA3, SD_DATA3, EMAC_RX_ER |
| IO14 | SDCARD | DC, TOUCH6, RTC_GPIO16, MTMS, HSPICLK, HS2_CLK, SD_CLK, EMAC_TXD2 |
| IO15 | JP3 Check jumper details | ADC, TOUCH3, MTDO, HSPICSO, RTC_GPIO13, HS2_CMD, SD_CMD, EMAC_RXD3 |
| IO34 | JP6 Check jumper details | ADC, RTC_GPIO4 |
| IO35 | BATTERY | ADC, RTC_GPIO4 |
| IO36 | WAKEUP BUTTON | ADC, RTC_GPIO0 |
| IO39 | JP2 Check jumper details | ADC, RTC_GPIO0 |
| P1-1 | JP8 Check jumper details | I/O |
| P1-2 | JP7 Check jumper details | I/O |
| P1-3 | FREE | I/O |
| P1-4 | FREE | I/O |
| P1-5 | FREE | I/O |
| P1-6 | FREE | I/O |
| P1-7 | FREE | I/O |
