This page contains important information about using a battery with Inkplate 5V2. For safety reasons, please read this page carefully!

Inkplate 5V2 has a 2-pin, 2mm JST connector for a 3.7V Li-ion battery. The onboard charging IC, MCP73831, charges the battery whenever Inkplate is plugged into USB-C, and switches to battery power when you unplug it. A charging indicator LED shows the current charging status.

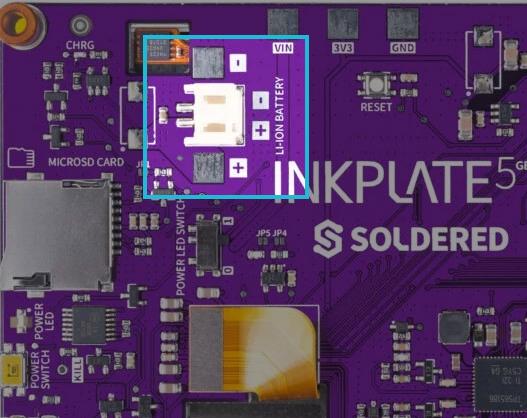

Inkplate 5V2 battery JST connector
JST battery connector

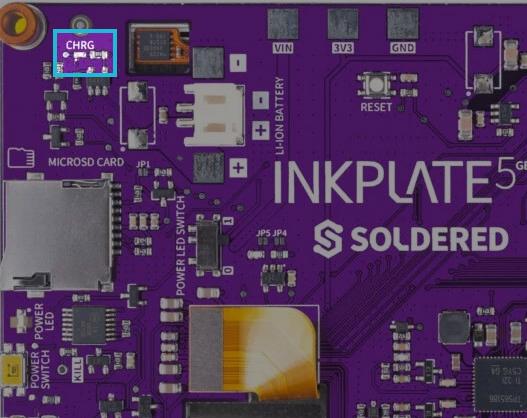

Inkplate 5V2 Onboard charging indicator LED
Onboard charging indicator LED
ℹ️
Getting the battery polarity right is crucial. Check the markings on the PCB before you connect a battery. With the JST connector oriented so the notch is at the top, the positive (+) terminal is on the left and the negative (-) terminal is on the right.
Battery polarity on Inkplate 5V2
Battery polarity on Inkplate 5V2
⚠️
Battery polarity can vary! Some Li-ion batteries have reversed polarity, and connecting a battery the wrong way around may permanently damage your Inkplate. Double-check before plugging it in.

Compatible batteries​

Inkplate 5V2 works with 3.7V Li-ion batteries that have protection. If you bought the Inkplate 5V2 enclosure and battery kit, it includes a 1200mAh 3.7V Li-ion battery with a built-in protection circuit.

3.7V li-ion battery with protection
3.7V li-ion battery with protection

Any of Soldered's 3.7V Li-ion batteries will work as long as they fit inside your enclosure.

ℹ️
Due to shipping restrictions, we can't ship Li-ion batteries outside the EU. If you're in the US, take a look at Adafruit's Li-ion battery stock.

Check out our battery documentation page.

Charging IC (MCP73831)​

The MCP73831 is a compact, single-cell Li-ion/Li-Polymer charge management controller. It regulates the charging process so charging over USB stays safe and efficient. The chip follows a constant-current / constant-voltage (CC/CV) charging profile, and switches to trickle charge as the battery nears full capacity.

Key features:

  • Automatic charge termination when the battery is full
  • Overvoltage and overcurrent protection
  • Charge status indicator, connected to the onboard LED
ℹ️
For full technical details, refer to the MCP73831 datasheet:

MCP73831/2 Data Sheet

Official data sheet for MCP73831/2 charger by Microchip
