Inkplate 6COLOR – Image from microSD

To draw images from the microSD card, use the drawImage() function.

ℹ️

Supported formats are: JPG, BMP and PNG.

⚠️

JPG files without progressive encoding are supported.

---

Drawing PNG, JPG and BMP files from the microSD card

Let's draw example images of different formats on Inkplate. Download them from the Inkplate library and place them in the root folder of the microSD card:

#include "Inkplate.h" // Include the Inkplate library in the sketch
Inkplate display;     // Create an Inkplate object and set the library to 3-bit mode
SdFile file;          // Create an SdFile object used for accessing files on the SD card

void setup()
{
    // Initialize serial communication
    Serial.begin(115200);

    display.begin();             // Initialize the Inkplate library (you should call this function only once)
    display.clearDisplay();      // Clear the display's frame buffer
    display.setTextColor(BLACK); // Set text color to black
    display.setTextSize(3);      // Set the font size to 3

    // Initialize the SD card. Display whether the SD card is properly initialized or not.
    if (display.sdCardInit())
    {
        Serial.println("SD Card OK! Reading image...");

        // If the card is properly initialized, try to load the image and display it on the e-paper at position X=0, Y=0
        // NOTE: Both drawImage methods allow for an optional fifth "invert" parameter. Setting this parameter
        // to true will flip all colors on the image, making black white and white black. This may be necessary when
        // exporting bitmaps from certain software.
        if (display.drawImage("image1.bmp", 0, 0, 1))
        {
            display.display();
            delay(5000);
        }
        else
        {
            // If something fails (wrong filename or wrong bitmap format), write an error message on the Serial Monitor.
            // REMEMBER! You can only use Windows Bitmap files with color depths of 1, 4, 8 or 24 bits with no compression!
            // You can turn off dithering for somewhat faster image load by changing the last 1 to 0, or removing the '1' argument completely.
            Serial.println("Image open error");
        }

        // Now try to load the image using the SdFat library class (for more advanced users) and display the image on the e-paper.
        display.clearDisplay();
        if (file.open("image2.bmp", O_RDONLY))
        {
            display.drawBitmapFromSd(&file, 0, 0);
            display.display();
            delay(5000);
        }
        else
        {
            Serial.println("Image open error");
        }
    }
    else
    {
        // If the SD card initialization is unsuccessful, display an error on the screen
        Serial.println("SD Card error!");
    }

    // Turn off the MOSFET that powers the SD card
    display.sdCardSleep();
}

void loop()
{
    // Nothing...
}

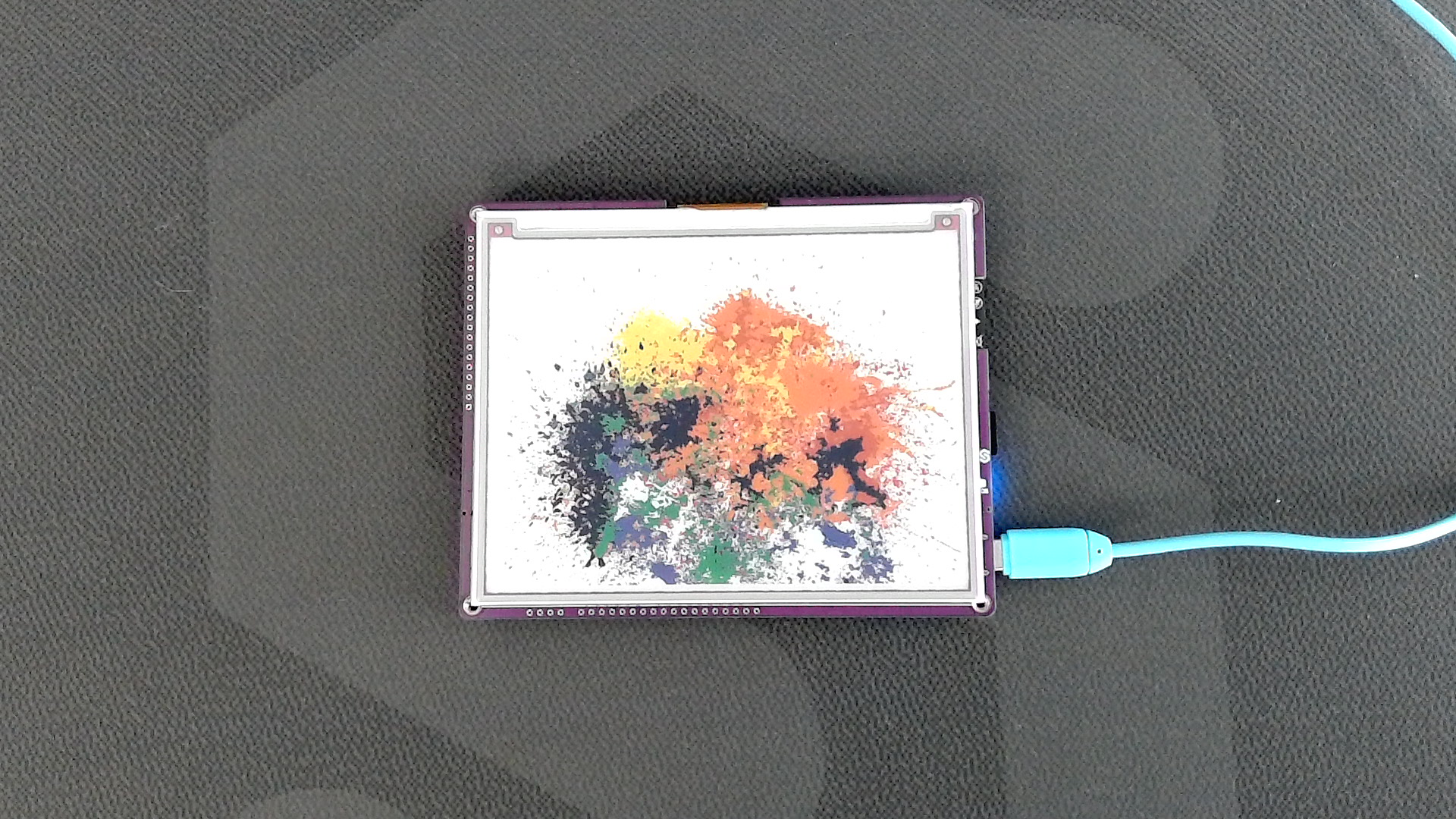

Example image 1

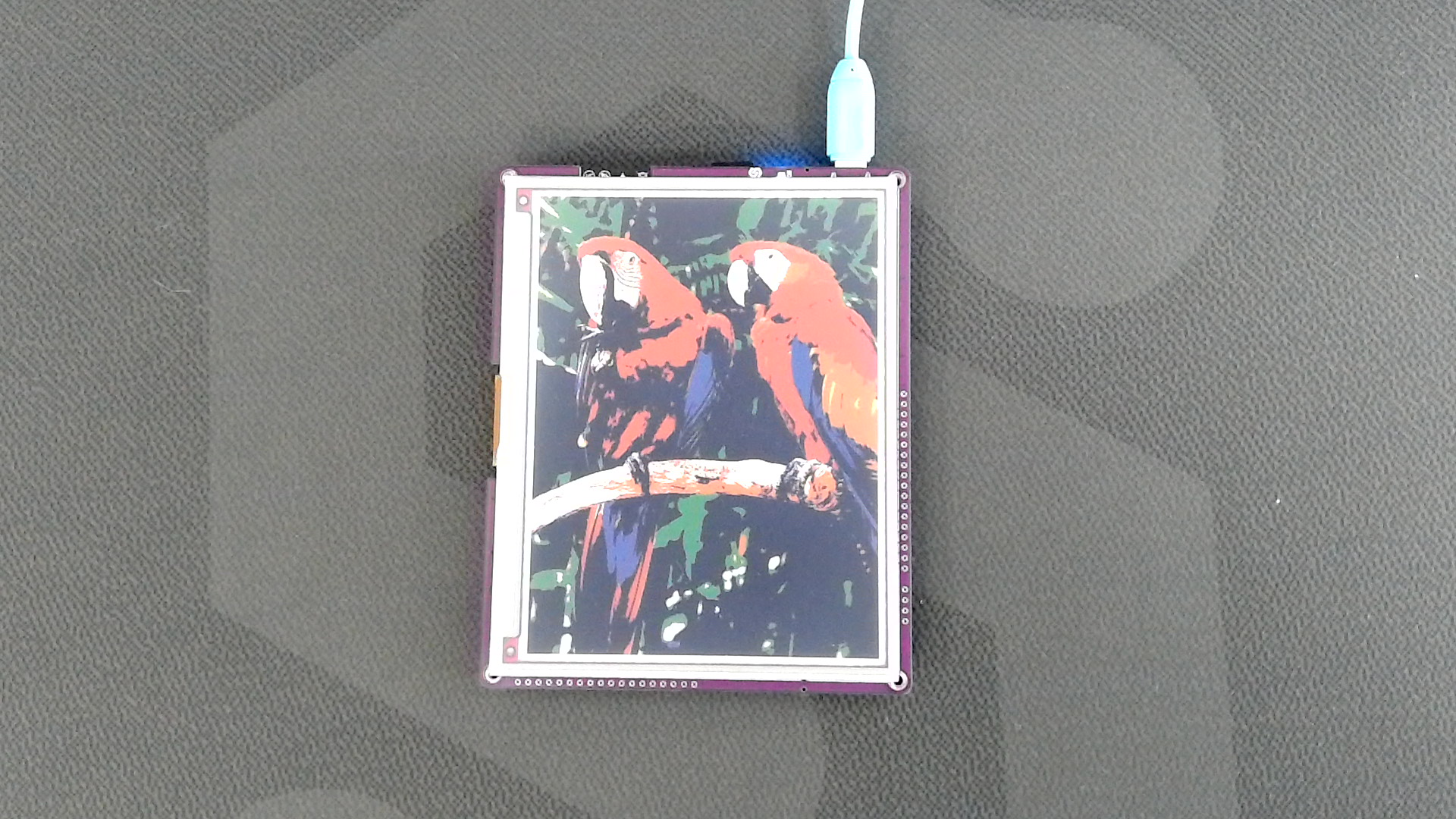

Example image 2

inkplate.drawImage()

The function draws an image from the given path.

Returns value: Returns true if the image was successfully drawn, otherwise false.

Function parameters:

Type	Name	Description
const char*	path	The path and filename of the image. Can be a URL (for web images) or a file path (on the microSD card).
int	x	X-coordinate of the image's upper-left corner in the framebuffer.
int	y	Y-coordinate of the image's upper-left corner in the framebuffer.
uint8_t	dither	Dithering mode: 0 (disabled), 1 (enabled).
bool	invert	If true, inverts colors.

---

Full example

Inkplate10_SD_Pictures.ino

This example shows you how to read .bmp and .jpeg files (pictures) from the SD card and display them on the e-paper display.
