Inkplate 5V2 – Drawing graphics

Inkplate 5V2 allows you to draw graphics on a 1280 x 720px canvas.

ℹ️

Adafruit GFX is the graphics library included in the Inkplate library for drawing graphics. For more details, refer to the official repository:

Adafruit GFX Library

The core graphics library for Inkplate library, created by Adafruit.

---

Drawing Geometric Shapes

Below is an example demonstrating the functions used for drawing graphics on the Inkplate 5V2:

ℹ️

The color parameter in these functions depends on the display mode. In black-and-white mode, use BLACK or WHITE. In grayscale mode, use values from 0 to 7. Refer to the display modes page for more details.

#include "Inkplate.h"
Inkplate inkplate(INKPLATE_3BIT);
void setup() {
    inkplate.begin();
    inkplate.clearDisplay();
    inkplate.display();
    // Draw a pixel
    inkplate.drawPixel(100, 50, 0);
    // Draw a line
    inkplate.drawLine(0, 0, 1023, 757, 1);
    // Draw a rectangle
    inkplate.drawRect(100, 100, 200, 200, 2);
    // Draw a filled rectangle
    inkplate.fillRect(300, 100, 200, 300, 3);
    // Draw a circle
    inkplate.drawCircle(512, 100, 75, 4);
    // Draw a filled circle
    inkplate.fillCircle(512, 100, 75, 5);
    // Draw a rounded rectangle
    inkplate.drawRoundRect(310, 300, 400, 300, 10, 4);
    // Draw a filled rounded rectangle
    inkplate.fillRoundRect(310, 300, 400, 300, 10, 3);
    // Draw a triangle
    inkplate.drawTriangle(300, 500, 700, 500, 512, 200, 2);
    // Draw a filled triangle
    inkplate.fillTriangle(350, 467, 650, 467, 512, 250, 1);
    // Update the display to render the drawings
    inkplate.display();
}
void loop() {
}

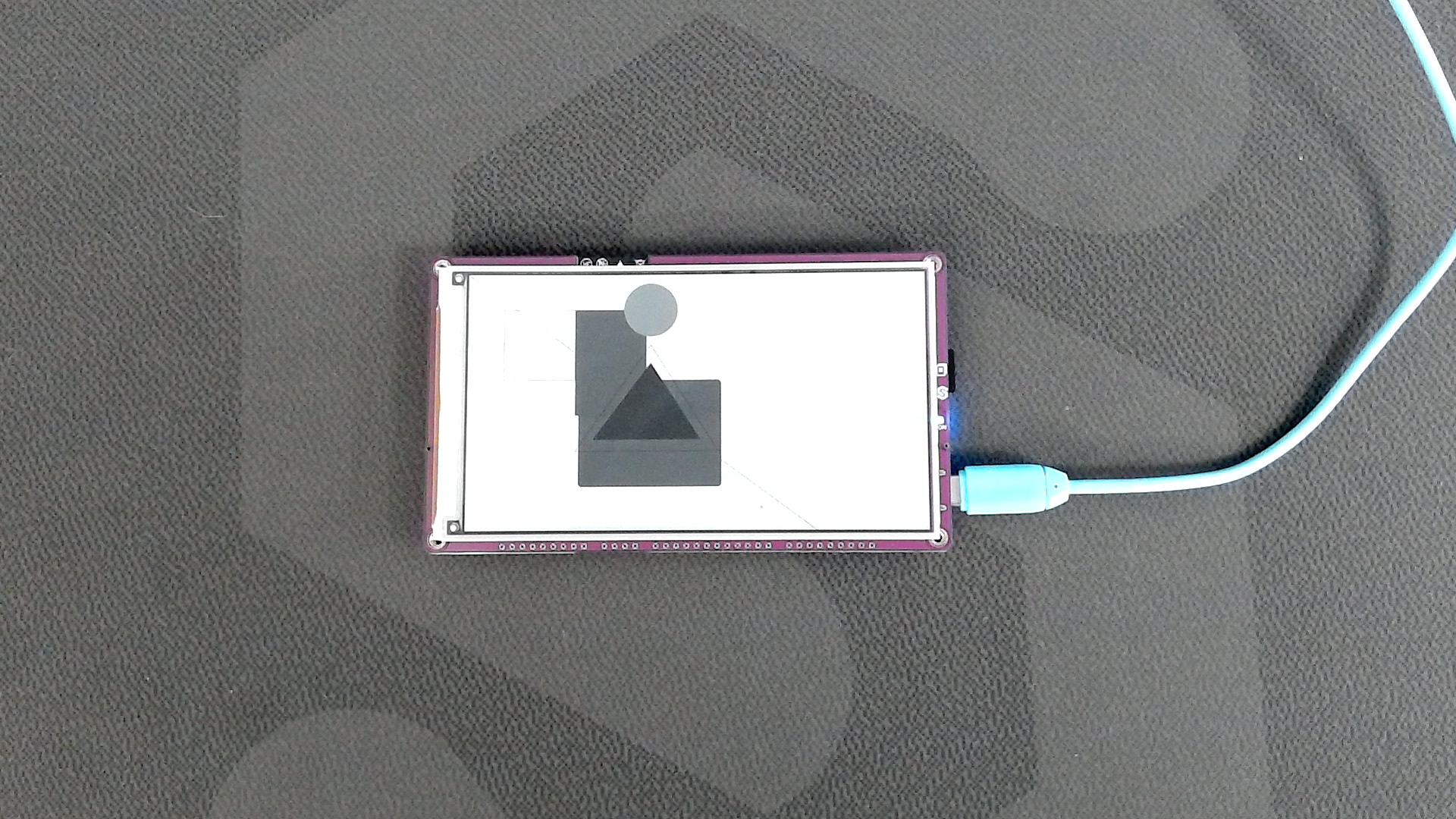

Expected output on Inkplate display.

Below are the detailed references for these functions:

inkplate.drawPixel()

Draws a single pixel on the display at the specified coordinates.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the pixel.
int	y	The y-coordinate of the pixel.
uint8_t	color	The color of the pixel.

inkplate.drawLine()

Draws a straight line between two points on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x0	The x-coordinate of the starting point.
int	y0	The y-coordinate of the starting point.
int	x1	The x-coordinate of the ending point.
int	y1	The y-coordinate of the ending point.
uint8_t	color	The color of the line.

inkplate.drawRect()

Draws a rectangle outline on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the top-left corner.
int	y	The y-coordinate of the top-left corner.
int	width	The width of the rectangle.
int	height	The height of the rectangle.
uint8_t	color	The color of the rectangle outline.

inkplate.fillRect()

Draws a filled rectangle on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the top-left corner.
int	y	The y-coordinate of the top-left corner.
int	width	The width of the rectangle.
int	height	The height of the rectangle.
uint8_t	color	The fill color.

inkplate.drawCircle()

Draws a circle outline on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the circle center.
int	y	The y-coordinate of the circle center.
int	radius	The radius of the circle.
uint8_t	color	The color of the circle outline.

inkplate.fillCircle()

Draws a filled circle on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the circle center.
int	y	The y-coordinate of the circle center.
int	radius	The radius of the circle.
uint8_t	color	The fill color.

inkplate.drawRoundRect()

Draws a rounded rectangle outline on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the top-left corner.
int	y	The y-coordinate of the top-left corner.
int	width	The width of the rectangle.
int	height	The height of the rectangle.
int	radius	The radius of the rounded corners.
uint8_t	color	The color of the rectangle outline.

inkplate.fillRoundRect()

Draws a filled rounded rectangle on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the top-left corner.
int	y	The y-coordinate of the top-left corner.
int	width	The width of the rectangle.
int	height	The height of the rectangle.
int	radius	The radius of the rounded corners.
uint8_t	color	The fill color.

inkplate.drawTriangle()

Draws a triangle outline on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x0	The x-coordinate of the first vertex.
int	y0	The y-coordinate of the first vertex.
int	x1	The x-coordinate of the second vertex.
int	y1	The y-coordinate of the second vertex.
int	x2	The x-coordinate of the third vertex.
int	y2	The y-coordinate of the third vertex.
uint8_t	color	The color of the triangle outline.

inkplate.fillTriangle()

Draws a filled triangle on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x0	The x-coordinate of the first vertex.
int	y0	The y-coordinate of the first vertex.
int	x1	The x-coordinate of the second vertex.
int	y1	The y-coordinate of the second vertex.
int	x2	The x-coordinate of the third vertex.
int	y2	The y-coordinate of the third vertex.
uint8_t	color	The fill color.

Full example

Inkplate5V2_Black_And_White.ino

Full example using a black-and-white display mode on Inkplate 5V2.

Inkplate5V2_Grayscale.ino

Full example using grayscale display mode on Inkplate 5V2.
