Inkplate 6COLOR – Drawing colorful graphics

Inkplate 6COLOR allows you to draw colorful graphics on a 600 x 448px canvas.

ℹ️

Adafruit GFX is the graphics library included in the Inkplate library for drawing graphics. For more details, refer to the official repository:

Adafruit GFX Library

The core graphics library for Inkplate library, created by Adafruit.

---

Drawing Geometric Shapes

Below is an example demonstrating functions for drawing graphics on the Inkplate 6COLOR:

ℹ️

There are a total of 7 colors to choose from: INKPLATE_BLACK, INKPLATE_WHITE, INKPLATE_GREEN, INKPLATE_BLUE, INKPLATE_RED, INKPLATE_YELLOW, INKPLATE_ORANGE

#include "Inkplate.h"

#ifndef ARDUINO_INKPLATECOLOR
#error "Wrong board selection for this example, please select Soldered Inkplate 6COLOR in the boards menu."
#endif

// Declare Inkplate object
Inkplate display;

void setup()
{
    // Initialize the Inkplate
    display.begin();

    // Draw a full screen of all colors
    display.fillRect(0, 0, 600 / 7 + 2, 448, INKPLATE_BLACK);
    display.fillRect(1 * 600 / 7, 0, 600 / 7 + 2, 448, INKPLATE_WHITE);
    display.fillRect(2 * 600 / 7, 0, 600 / 7 + 2, 448, INKPLATE_GREEN);
    display.fillRect(3 * 600 / 7, 0, 600 / 7 + 2, 448, INKPLATE_BLUE);
    display.fillRect(4 * 600 / 7, 0, 600 / 7 + 2, 448, INKPLATE_RED);
    display.fillRect(5 * 600 / 7, 0, 600 / 7 + 2, 448, INKPLATE_YELLOW);
    display.fillRect(6 * 600 / 7, 0, 600 / 7 + 2, 448, INKPLATE_ORANGE);

    // Show the image on the screen
    display.display();
}

void loop()
{
    // Loop forever
}

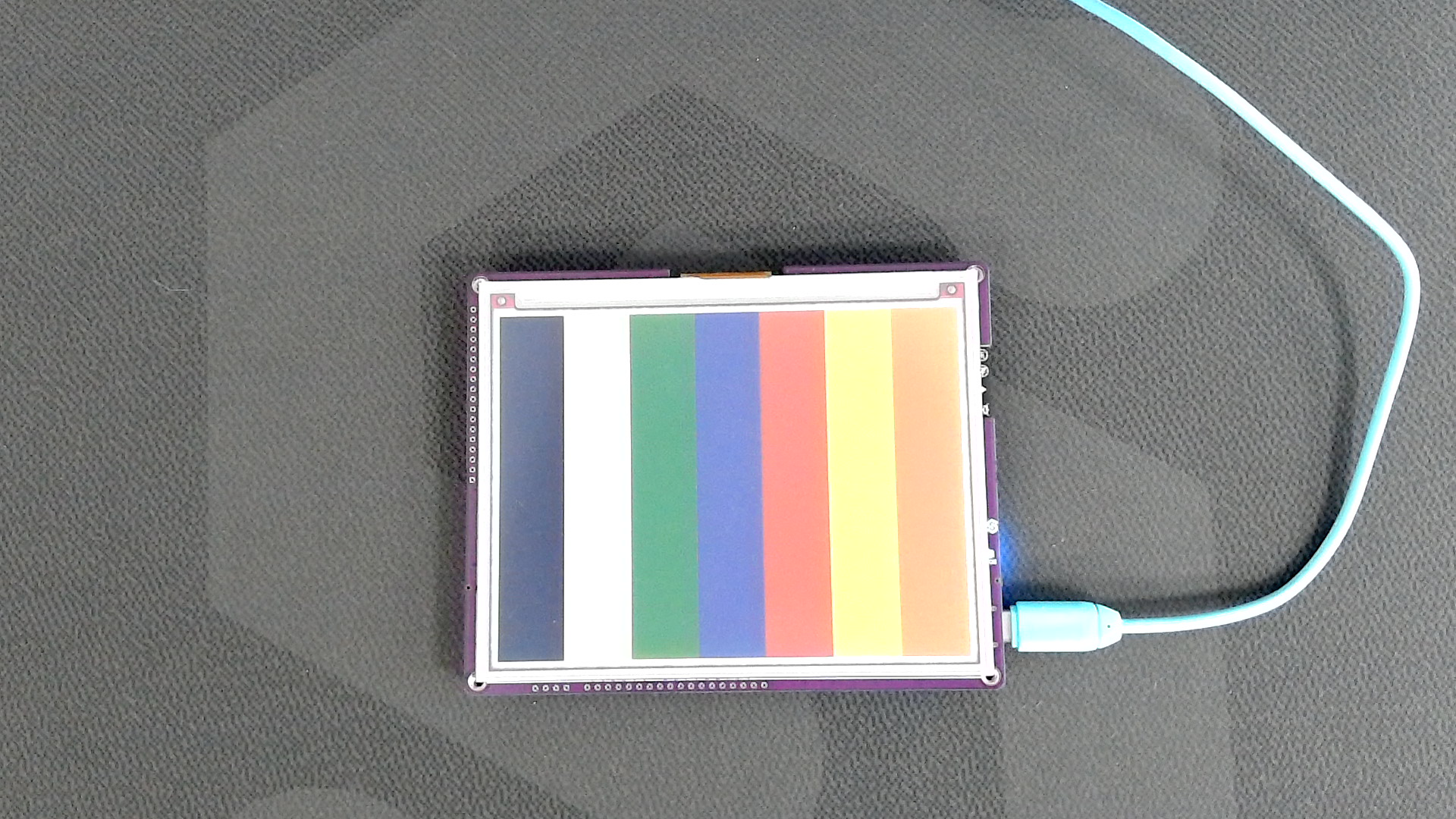

Expected output on Inkplate display.

Below are the detailed references for these functions:

inkplate.fillRect()

Draws a filled rectangle on the display.

Returns value: none

Function parameters:

Type	Name	Description
int	x	The x-coordinate of the top-left corner.
int	y	The y-coordinate of the top-left corner.
int	width	The width of the rectangle.
int	height	The height of the rectangle.
uint8_t	color	The fill color.
