Overview

NULA Core​

Start building your next Arduino-based project with NULA Core, a compact yet fully featured development board designed for makers of all skill levels. With full Arduino IDE compatibility it brings the classic Arduino Uno experience in a much smaller and more project-friendly size.

Powered by the famous Atmel ATmega328P, NULA Core provides 22 I/O pins (14 digital + 8 analog), making it suitable for everything from simple electronics experiments to more advanced projects. Its built-in USB Type-C connector ensures easy programming and reliable power delivery.

Designed for modern and fast prototyping, NULA Core includes a Qwiic connector for effortless I²C expansion, an onboard 3.3 V regulator for powering sensors and breakouts, and a Li-Ion battery charger with connector for portable applications. It also features a WS2812B RGB LED, giving your projects an instant visual upgrade right out of the box.

NULA Core

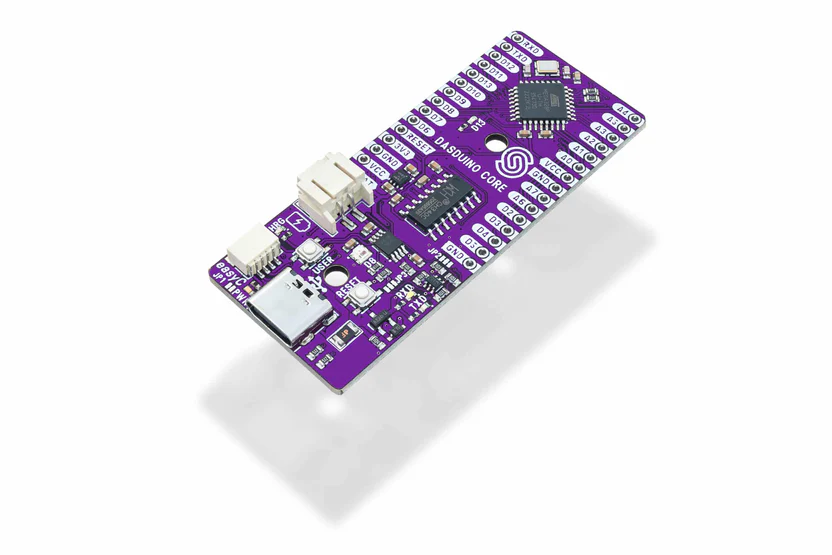

NULA Core Development Board

Which products is this documentation for?​

NULA Core

NULA Core

Simple and compact board that will perform all kinds of tasks, all while taking up very little space.

Key Features​

  • Microcontroller: ATmega328P (8-bit AVR) @ 16 MHz
  • Operating Voltage: 5 V logic level
  • GPIO: 22 pins (14 digital, 8 analog)
  • Communication Interfaces: UART, SPI, and I²C supported
  • USB-C Connector: USB Type-C for programming, power and serial communication
  • Battery Support: Li-Ion battery connector with onboard charging circuit
  • 3.3 V Regulator: Dedicated 3.3 V output for powering sensors and breakouts
  • Compatibility: 100% compatible with Arduino boards and Arduino IDE
  • Qwiic Connector: Plug-and-play I²C connector for fast prototyping
  • Onboard Features: Dedicated User and Reset buttons + onboard WS WS2812B RGB LED
  • Form Factor: Compact breakout board design (smaller than Arduino Uno)
