AS5600 Position Sensor​

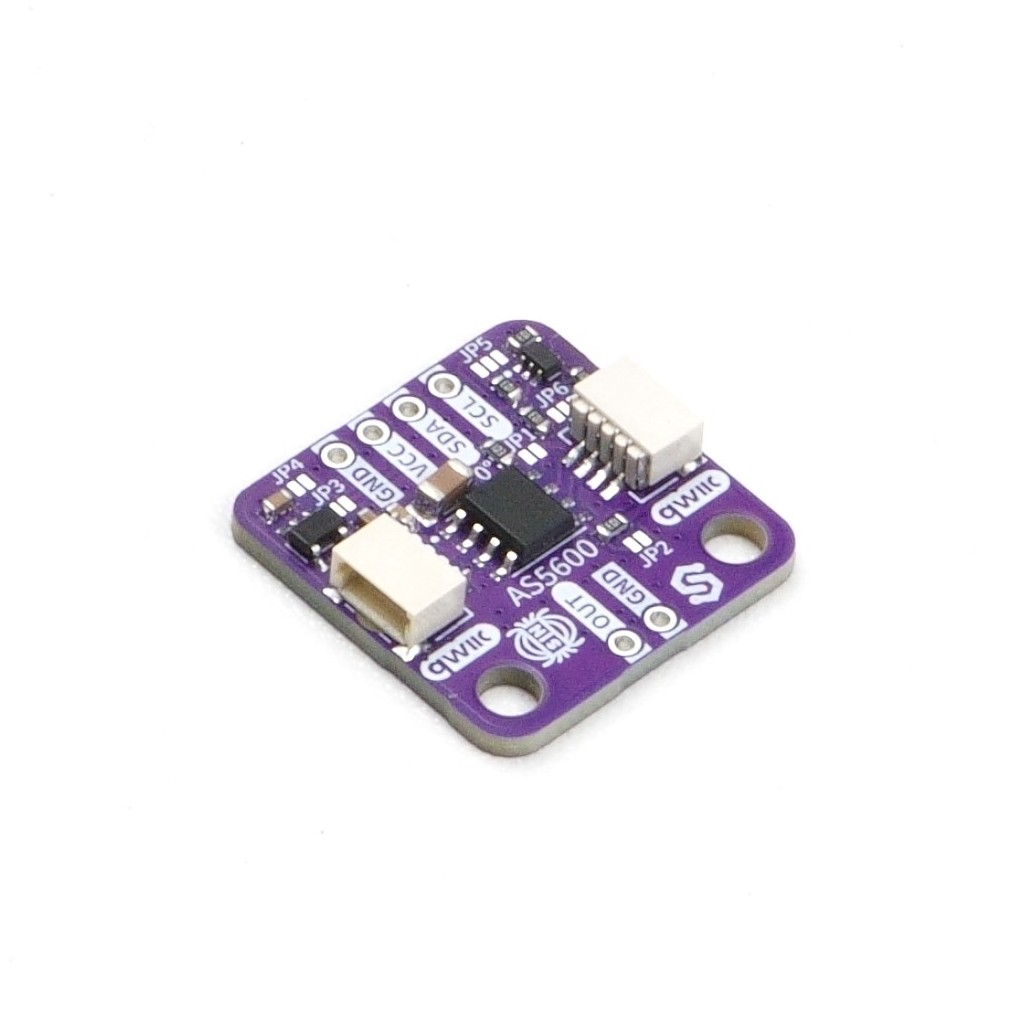

The AS5600 is a magnetic rotary position sensor for non-contact 360° angle measurement. It outputs angle data as a 12-bit value (4096 positions per revolution) over I2C, and also supports analog voltage and PWM outputs. The board has two Qwiic (formerly easyC) connectors for easy daisy-chaining.

AS5600 Position Sensor
AS5600 Position Sensor

Which product is this documentation for?​

⚠️

This product is not yet available in our store. Please check back soon!

Key Features​

  • Sensing: 360° non-contact magnetic rotary position sensing
  • Resolution: 12-bit (up to 4096 positions per revolution)
  • Output modes: I2C digital, analog voltage, and PWM
  • Communication: I2C (fixed address: 0x36, up to 1 MHz)
  • Operating voltage: 3.3V (onboard regulator for 5V compatibility)
  • Connector: 2 × Qwiic (formerly easyC) ports
  • Mounting: Two mounting holes
  • Dimensions: 22 × 22 mm (0.9 × 0.9 inch)
