P82B715 I2C Bus Extender - Hardware details

Pinout​

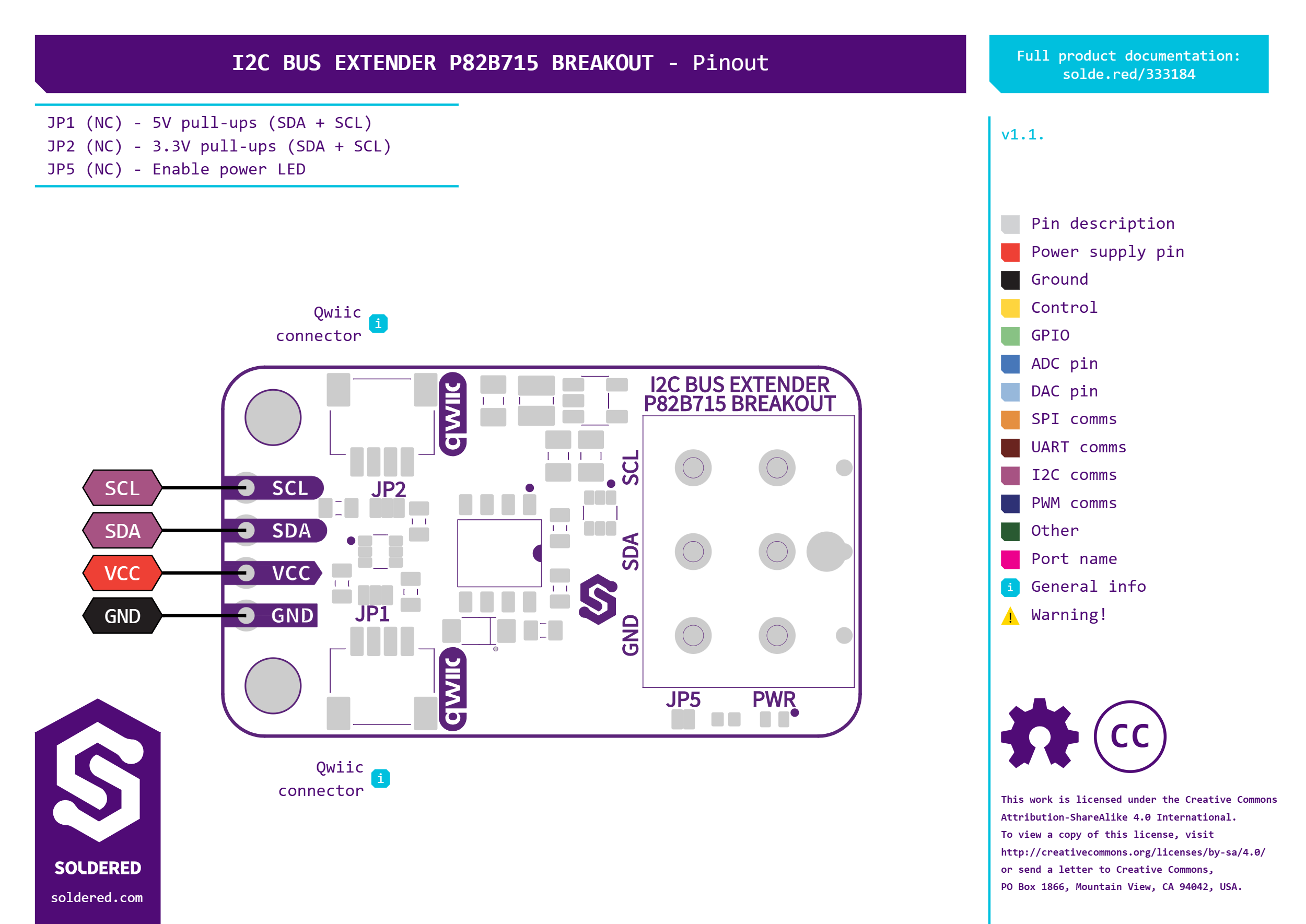

P82B715 pinout diagram
P82B715 pinout diagram

Click here for a high resolution image of the pinout.

Pin details​

Qwiic connectors (K1, K2): local 3.3V I2C side​

PinDescription
GNDGround.
3V33.3V power input from the Qwiic cable.
SDAI²C data line, local (3.3V) side.
SCLI²C clock line, local (3.3V) side.

Pin header (K3): local side breakout​

PinDescription
SCLI²C clock line on the P82B715's Sx/Sy side. Always 5V logic.
SDAI²C data line on the P82B715's Sx/Sy side. Always 5V logic.
VCC5V from the onboard boost converter.
GNDGround.
⚠️
K3 is a 5V header. Its SDA and SCL sit at 5V logic and VCC is 5V, whatever you do with JP1 and JP2, which only switch the pull-ups. Don't power a 3.3V-only device from this header, and don't wire its SDA/SCL straight to a 3.3V-only part. Use a Qwiic port instead, that side is level shifted to 3.3V.

Screw terminal (K4): extended bus side​

PinDescription
SCLBuffered I²C clock line, connects to the long cable / remote device.
SDABuffered I²C data line, connects to the long cable / remote device.
GNDGround.
ℹ️

Connect your microcontroller to the Qwiic ports (K1 or K2) on the local side. Connect your long cable or remote I²C device to the screw terminal (K4) on the extended side. The onboard boost converter and level shifter operate automatically, so there's no configuration needed for basic use.

Qwiic​

Qwiic cable
ℹ️
This board is fully Qwiic-compatible! Just plug it into your microcontroller using a Qwiic/STEMMA QT cable and start coding!

Qwiic details and specifications

Learn about hardware specifications, compatibility, and usage of the Qwiic connector.

Jumper details​

This board contains hardware jumpers; see below for their locations and functions:

JumperTypeFunction
JP1NC (3-pad SMD jumper)Connects the 5V rail to the SDA and SCL pull-ups on the 5V nets (K3 and the P82B715's Sx/Sy). One trace per line, so you can cut either or both.
JP2NC (3-pad SMD jumper)Connects the 3V3 rail to the SDA and SCL pull-ups on the Qwiic side of the level shifter. One trace per line.
JP5NC (Normally closed)Enables the onboard power LED. Cut it to disconnect the LED circuit and turn off the power indicator.
ℹ️
  • JP1 and JP2 each have a centre pad on a supply rail and a trace running out to the SDA and the SCL pull-up. They pick which side of the level shifter gets pulled up, not which voltage a line runs at.
  • The local pull-ups are 10 kΩ. The extended side (screw terminal K4) has its own fixed 470 Ω pull-ups to 5V and isn't affected by JP1 or JP2.
  • Cut a JP1 or JP2 trace if your I²C bus already has external pull-up resistors, to avoid running them in parallel.
  • JP5 is closed by default, so the power LED is on out of the box. Cut it if you want to disable the LED.

Power consumption​

  • Power input: 3.3V via Qwiic
  • Onboard boost converter: Generates 5V internally for the P82B715 buffer chip
  • Power LED: Purple indicator LED, on by default. Cut JP5 to disable it

Dimensions​

  • Board Dimensions: 22 × 38 mm (0.9 × 1.5 inch)
  • Header Pin Holes: 1.0 mm
  • Screw Holes: Designed for M3 screws (3.2 mm diameter)
  • Soldered boards are LEGO compatible! 🧱

Hardware repository​

Schematics, KiCad files, Gerber files and more can be found in the GitHub repository:

⚠️
The hardware repository for this board is not available yet! We're working on it. In the meantime, please contact us to receive the hardware files.
